RG6 Coaxial Cable, Dual Shield, CMR, Galvanized Steel Messenger Wire, 18 AWG CCS, AL Foil / 60% AL Wire Braid, Outdoor Aerial, 1,000', Black

SKU: CC3-3523BK-6M
UL Listed logo ROHS Compliant logo ETL Verified logo aerial


RG6 Dual Shield Coax Cable with Messenger for Outdoor Aerial CATV Networking

Our RG6 Coaxial Cable is commonly used for wiring satellite, digital CATV and HDTV television networking since it requires higher level of shielding for signal retention. The RG6 coax cable has a denser jacketing and thicker conductor then RG59, so it can transfer data at double the speed. We supply RG6 dual shield and quad shield cable to maximize signal retention for even sharper, clearer digital pictures. The RG6 Coaxial Cable tops out at 75 Ohms and sweep tested at 3GHz.


Coaxial Cable is used to transmit radio frequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Coaxial Cable also provides protection of the signal from external electromagnetic interference. Coaxial Cables connects radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distributing cable television signals. This makes RG6 cable an ideal solution for coax cable for internet usage.

Product Quality

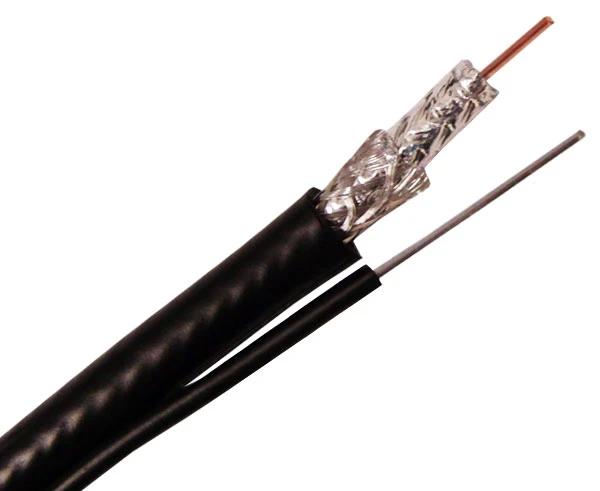

Our high quality RG6 CATV Dual Shield Coaxial Cable with galvanized steel messenger wire consists of an 18 AWG solid Copper Clad Steel (CCS) inner conductor that transmits the signal. It is wrapped in a dielectric polyethylene insulation. This RG6 coaxial cable comes with 100% Foil + 60% aluminum wire braid shield. This is covered with a flame rated PE jacket (CMR).

3523 rg6 coax cable for internet

Where to use Coaxial Cable with Messenger Wire

Our RG6 Coaxial Cable is recommended for aerial applications. It distributes signals for cable TV (CATV), satellite dish, and roof-top antennas. The cable's jacket is designated CL2 for outdoor use on networking projects. The messenger is ideal for aerial applications such as running cables in the air between poles or buildings to avoid sagging cables.

Container and Trucking Quotes
To avoid excessive shipping charges on 10 or more of this product please call 951-824-1571 or email to get a shipping quote.



  • 18 AWG CCS Conductor
  • Foam Polyethylene Dielectric
  • Bonded 100% AL Foil + 60% AL Wire Braiding
  • UV Resistant Outdoor PVC Jacket
  • For use with CATV Systems
  • 3 GHz Sweep Tested
  • 75 Ohm
  • NEC Guidelines CL2, CMR
  • UL Listed
  • Verified by ETL Standards
  • RoHS Compliant



Physical Characteristics

Conductor Size: 18 AWG
Conductor Material: Solid Copper Clad Steel (CCS)
Dielectric Material: Foam PE
Braid Shielding: 60% AL Wire Braiding + 100% AL Foil
Outer Jacket Material: FRPVC & UV Resistant
Messenger Material: Galvanized Steel

Electrical Characteristics

Nominal Impedance: 75 Ohm
Nominal Velocity of Propagation: 83%
Nominal Capacitance: 16.2 Pf/ft
Nominal Conductor DC Resistance DCR @ 20™C: 102 Ohm/km
Maximum Operating Voltage-UL: 350 VRMS

Mechanical Characteristics

Storage Temperature Range: -20™C to +60™C
Max. Recommended Pulling Tension: 110lbs
Maximum Bend Radius/Minor Axis: 3 in

Additional Information

Additional Information

To learn more about our RG6 Bulk Coaxial Cable here is a link to a page containing more information on our premium RG6 Bulk Coaxial Cable.

What's in the Box

What's in the Box

  • RG6 CATV Dual Shielded Coaxial Cable, 18 AWG with Messenger Wire.

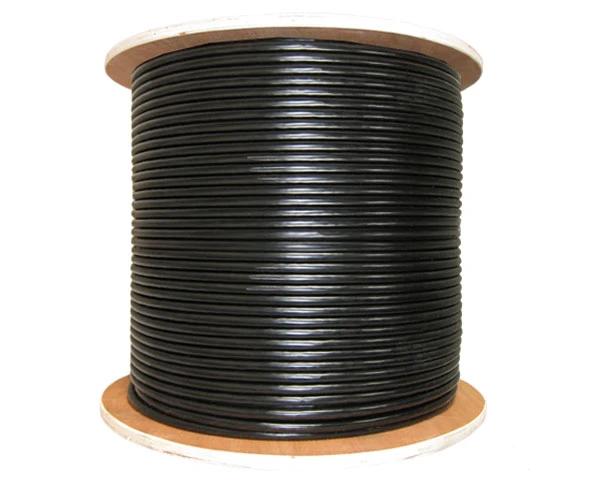

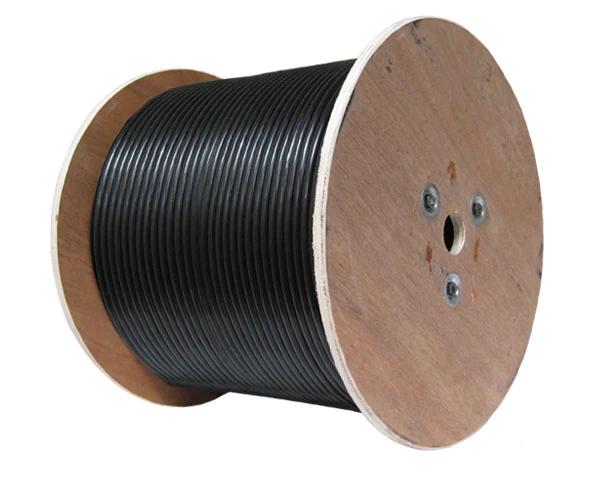

  • Supplied 1,000' black on Wooden Spool
