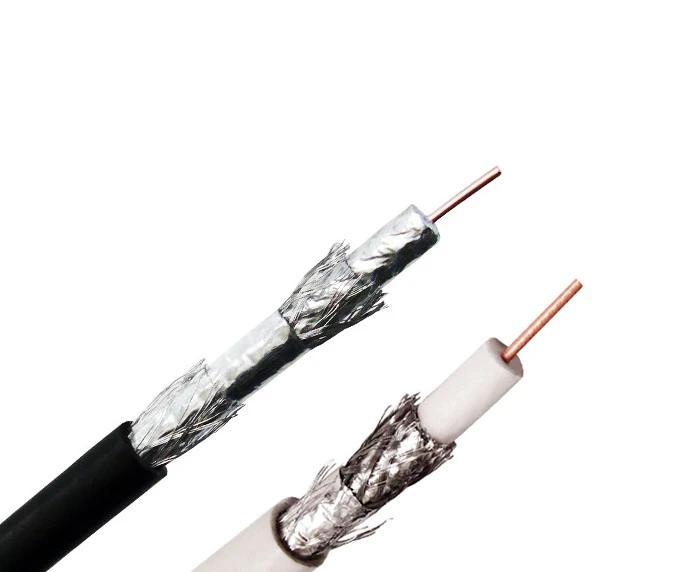

RG6 Coaxial Cable, Quad Shielded Riser CMR, AL Foil Shield, 60%/40% Aluminum Braid Shield, 18 AWG Solid CCS Conductor, 1,000'

$99.99
SKU: CC-1035BK-6QB
Length
Color: Black

Minimum Order Quantities May Apply

UL Listed logo ROHS Compliant logo

Description

RG6 Quad Shield Riser CMR Coax Cable for Digital HDTV and CATV

RG6 coaxial cable excels in satellite and HDTV networking, with superior shielding for optimal signal retention. Its denser jacket and thicker conductor enable double the data transfer speed compared to RG59. Choose from RG6 dual shield or quad shield options for impeccable digital picture quality, with a maximum impedance of 75 ohms and 3GHz sweep testing.

This cable is compatible with our CN3-1594-59 BNC RG59 and CN2-7887-RG6 F-Type RG6 Connectors.

Applications

Coaxial Cable is used to transmit radio frequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Coaxial Cable also provides protection of the signal from external electromagnetic interference. Coaxial Cables connects radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distributing cable television signals. This makes RG6 cable an ideal solution for coax cable for internet usage.

Product Quality

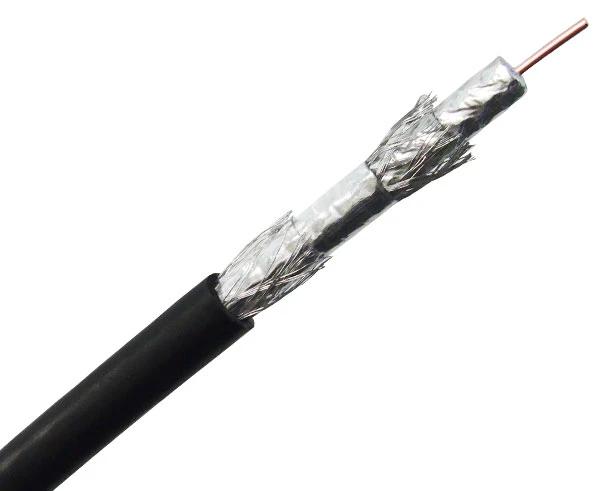

Our high quality RG6 Coaxial Cable consists of a 18 AWG solid Copper Clad Steel inner conductor that transmits the signal. It is surrounded with a dielectric polyethylene insulation and 60% + 40% aluminum braided shielding. This is covered with a flame rated PVC jacket. Our cables are UL listed and RoHS Compliant.

1035 rg6 coax cable for internet

Where to use Coaxial Cable

A broad range of applications exist for coaxial cabling. It is widely used with home entertainment equipment such as Cable Television (CATV), Digital HDTV, Audio / Video, and Digital Satellite. It is also used with security cameras, and GPS Systems.

Container and Trucking Quotes
To avoid excessive shipping charges on 10 or more of this product please call 951-824-1571 or email support@primuscable.com to get a shipping quote.

Features

Features

  • High-grade RG6, RG6U Coaxial Cable
  • Riser CMR Jacket
  • Suitable for Digital HDTV, Digital Satellite, Cable Television CATV, and Audio/Video Applications
  • Sweep-Tested to 3GHz
  • 75 Ohm Impedance
  • 18 AWG Solid Copper Clad Steel (CCS)
  • Aluminum Foil Bonded
  • 60% + 40% Aluminum Braid Shield
  • UL Listed
  • RoHS Compliant
  • Supplied in Pull Boxes
  • Sold in 500' and 1000' Lengths
  • FR-PVC Outer Jacket Material

Specifications

Specifications


Physical Construction

Inner Conductor Material: Solid Copper Clad Steel (CCS)
Inner Conductor Size: 18 AWG
Insulation Material: Foamed PE
Shield Material: AL Foil Bonded + 60% AL Wire Braiding
AL Foil Bonded + 40% AL Wire Braiding
Jacket Material: FRPVC & UV Resistant

Electrical Characteristics

Capacitance: N/A
Impedance: 75 Ohm
Nominal Velocity of Propagation 85%

Electrical Characteristics

Operating Temperature: -20°C to +60°C

Additional Information

Additional Information

To learn more about our RG6 Bulk Coaxial Cable here is a link to a page containing more information on our premium RG6 Bulk Coaxial Cable.

What's in the Box

What's in the Box

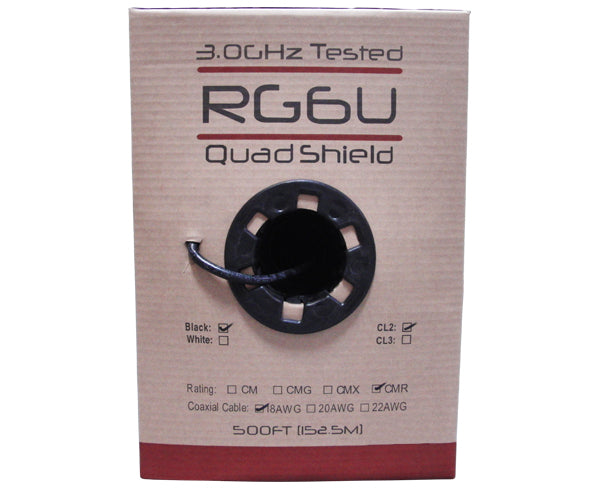

  • RG6 Quad Shield CMR Riser Coaxial Cable, 18 AWG CCS, 60%+40% AL Braid, 1,000' and 500', Black or White in Pull Box
