RG6 Siamese Coaxial Cable for Indoor CCTV Networks
Our RG6 Siamese Coaxial Cable is favored for satellite, digital CCTV, and HDTV networking, offering superior signal retention with enhanced shielding. Compared to RG59, its denser jacket and thicker conductor enable double-speed data transfer. Choose from RG6 dual shield or quad shield cables for optimized signal retention, ensuring clearer digital images. Operating at 75 Ohms and sweep tested at 3GHz.
This cable is compatible with our CN3-1594-59 BNC RG59 and CN2-7887-RG6 F-Type RG6 Connectors.
Applications
Coaxial Cable is used to transmit radio frequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Coaxial Cable also provides protection of the signal from external electromagnetic interference. Coaxial Cables connect radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distribute cable television signals. This makes RG6 cable an ideal solution for coax cable for internet usage.
Product Quality

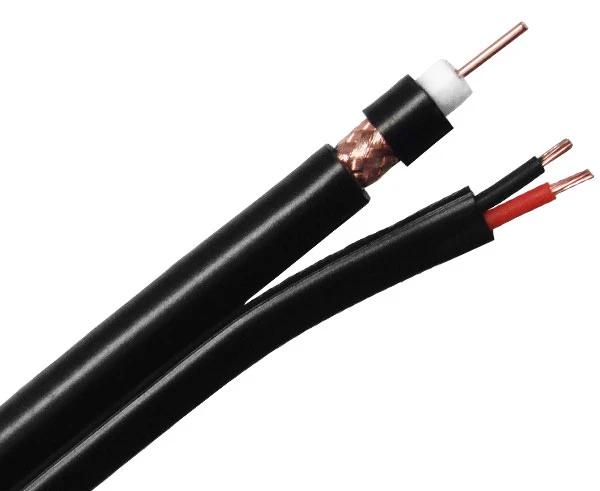

Our high-quality RG6 CCTV Siamese Coaxial Cable consists of an 18 AWG solid Bare Copper (BC) inner conductor that transmits the signal. It is wrapped in dielectric polyethylene insulation. This RG6 coaxial cable comes with a 90% Bare Copper Braid Shield. This is covered with a flame-rated PE jacket (CM).
Where to use Siamese Coaxial Cable

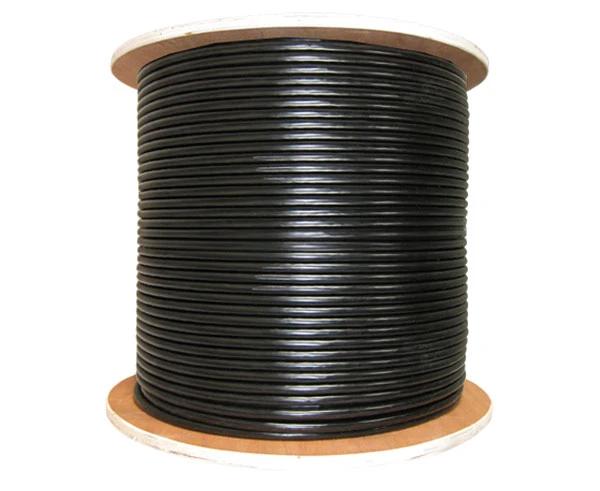

A broad range of applications exist for coaxial cabling. It is widely used with entertainment equipment such as TVs, VCRs, DVRs, and satellite receivers. It is also used with security cameras and GPS Systems. Since this RG6 Siamese Coaxial Cable has a solid copper conductor and two stranded bare copper power wires, it is the perfect cable choice for any CCTV transmission or surveillance system to run power and data in a single pass. This RG6 Siamese Coaxial Cable is available in a black jacket. The 500' is supplied on a reel in a box or on a spool. The 1000' is supplied on a wooden spool.
| RG6 Coaxial Cable Options | |||||||||
|---|---|---|---|---|---|---|---|---|---|
CCTV |
CATV |
||||||||
| Single Conductor | Siamese | Single Conductor | Siamese | Single Conductor | Single Conductor | Single Conductor | Single Conductor | Single Conductor+ Messenger |
Single Conductor |
| Solid BC (CM) |
Solid BC (CM) |
Plenum BC (CMP) |
Plenum Siamese BC (CMP) |
Plenum BC (CMP) |
Plenum CCS (CMP) |
Solid BC (CMR) |
Solid CCS (CMR) |
Solid CCS (CMR) |
Outdoor CCS (CMX) |
Features
Features
- Data and Power CCTV Surveillance Cameras and Radio Frequency Applications
- 18 AWG Solid Bare Copper (BC) Conductor
- BC Stranded 18/2 Power Wires
- Flame Rated PVC Jacket & UV Resistance
- Sweep Tested to 3.0 GHz.
- 75 Ohm
- 90% CCA Braided Shielding
- CM Rated
- RoHS Compliant
- Supplied in Black

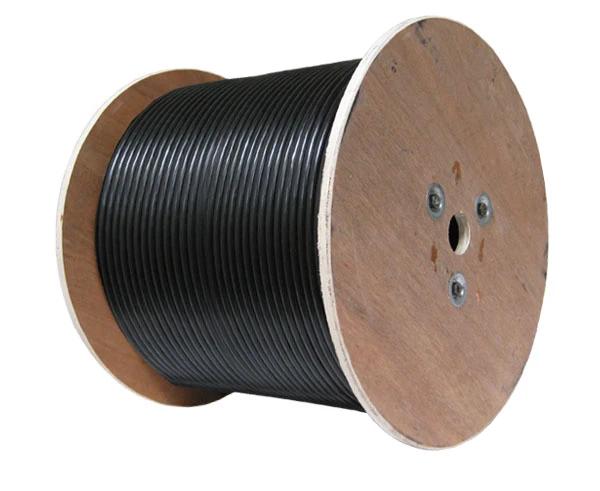

- 1000' on Wooden Spool.
Specifications
Specifications
| Physical Characteristics | |
|---|---|
| Conductor Size: | 18 AWG |
| Conductor Material: | Solid Bare Copper |
| Dielectric Material: | Foam PE |
| Shielding: | 90% CCA Wire Braiding |
| Outer Jacket Material: | PVC |
| Electrical Characteristics | |
|---|---|
| Nominal Impedance: | 75 Ohm |
| Nominal Velocity of Propagation: | 82% |
| Nominal Capacitance: | 53 Pf/M |
| Nominal Conductor DC Resistance DCR @ 20 °C: | 21.9 |
| Maximum Operating Voltage-UL: | 300 |
| Mechanical Characteristics | |
|---|---|
| Operating Temperature Range: | -20°C to +70°C |
| Maximum Recommended Pulling Tension: | N/A |
Additional Information
Additional Information
To learn more about our RG6 Bulk Coaxial Cable, here is a link to a page containing more information on our premium RG6 Bulk Coaxial Cable.
What's in the Box
What's in the Box
- Qty 1 – 1,000 ft RG6 Siamese Cable (18 AWG Bare Copper, 90% Braid Shield, 18/2 Stranded)
- Qty 1 – Wooden Spool (included for 1,000 ft orders)
