Description
RG6, 95% BC Wire Braid Shield, Plenum Coaxial Cable for Indoor CCTV Networking
Our CCTV RG6 Plenum Coaxial Cable is commonly used for wiring CCTV surveillance cameras and radio frequency applications. The cable's jacket is designated CL2P for in-wall installation. The RG6 Plenum Coaxial Cable tops out at 75 Ohms and does not keep a high Gigahertz.
Applications
Plenum Coaxial Cable is used to transmit radio frequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Plenum Coaxial Cable also provides protection of the signal from external electromagnetic interference. Plenum Coaxial Cables connects radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distributing cable television signals.
Product Quality
Plenum Coaxial Cable consists of a 18 AWG solid bare copper center conductor that transmits the signal. It is surrounded with a Fluorinated Ethylene-Propylene (FEP) dielectric insulation and 95% bare copper braided shielding. This is covered with a Plenum CMP jacket.
Where to use Plenum Coaxial Cable
A broad range of applications exist for coaxial cabling. It is widely used with entertainment equipment such as TV, VCR, DVR, satellite receivers in commercial settings such as schools and hospitals. It is also used with security cameras, and GPS Systems. Since this RG6 Plenum Coaxial Cable has a solid copper conductor it is the perfect cable choice for any CCTV transmission or surveillance system and helps eliminate signal loss.
Why Plenum?
A plenum space is the open area above the drop ceiling or below the floor that is used for air circulation in buildings. This could be a problem if there is ever a fire. Using non-plenum cables in a plenum space can spread fire and toxic smoke throughout a building. Plenum cable uses a flame-retardant jacket that is made of special plastics to prevent the release of harmful smoke. Plenum cable is mostly used in commercial applications such as schools and hospital buildings that house a large population of people. It also is required in most multi-floor business buildings with large plenum space areas.
| RG6 Coaxial Cable Options | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| CCTV | CATV | ||||||||
| Single Conductor | Siamese | Single Conductor | Siamese | Single Conductor | Single Conductor | Single Conductor | Single Conductor | Single Conductor+ Messengar |
Single Conductor |
| Solid BC (CM) |
Solid BC (CM) |
Plenum BC (CMP) |
Plenum Siamese BC (CMP) |
Plenum BC (CMP) |
Plenum CCS (CMP) |
Solid BC (CMR) |
Solid CCS (CMR) |
Solid CCS (CMR) |
Outdoor CCS (CMX) |
Features
Features
- Premium RG6/U Coaxial Cable
- Made for Closed Circuit Television (CCTV) Applications in Plenum Areas
- Sweep-Tested to 3.0 GHz
- 75 Ohm
- 18 AWG Solid Bare Copper (BC) Conductor
- 95% Bare Copper Wire Braiding
- Foam FEP Dielectric Core
- ETL Listed
- Plenum CMP Rated Jacket
- Meets Current NEC Guidelines, CCTV, CMP, CL2P
- RoHS Compliant
- Made In The USA

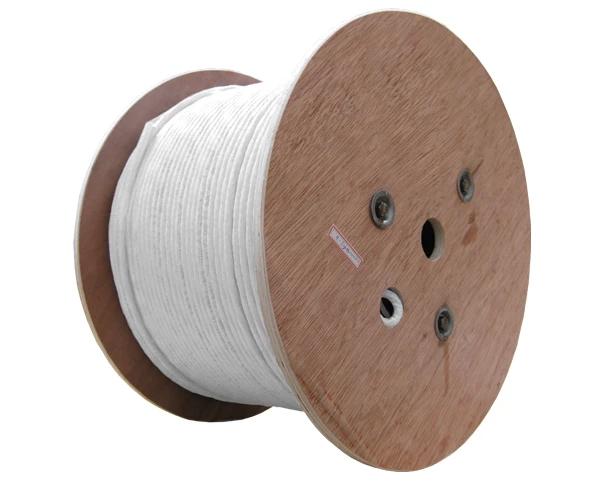

- Supplied on Wooden Spool - 1,000ft Increments
- Comes in White
Specifications
| Physical Characteristics | |
|---|---|
| Conductor Size: | 18 AWG |
| Conductor Material: | Solid Bare Copper (BC) |
| Dielectric Material: | Foam FEP |
| Shielding: | 95% Bare Copper Wire Braiding |
| Outer Jacket Material: | Plenum CMP |
| Electrical Characteristics | |
|---|---|
| Nominal Impedance: | 75 Ohm |
| Nominal Velocity of Propagation: | 84% |
| Nominal Capacitance: | 15.8 Pf/ft |
| Nominal Conductor DC Resistance DCR @ 20™C: | N/A |
| Maximum Operating Voltage-UL: | N/A |
| Mechanical Characteristics | |
|---|---|
| Operating Temperature Range: | -20™C to +75™C |
| Maximum Recommended Pulling Tension: | N/A |
Additional Information
Additional Information
To learn more about our RG6 Bulk Coaxial Cable here is a link to a page containing more information on our premium RG6 Bulk Coaxial Cable.
To learn more about our CMP Rated Cable here is a link to a page containing more information on our premium CMP Rated Cable.
What's in the Box
What's in the Box
- Qty 1 - RG6 Coaxial Cable CATV Plenum BC 18 AWG Conductor BC 95% Shielding. 1,000ft Increments on a Wooden Spool White
