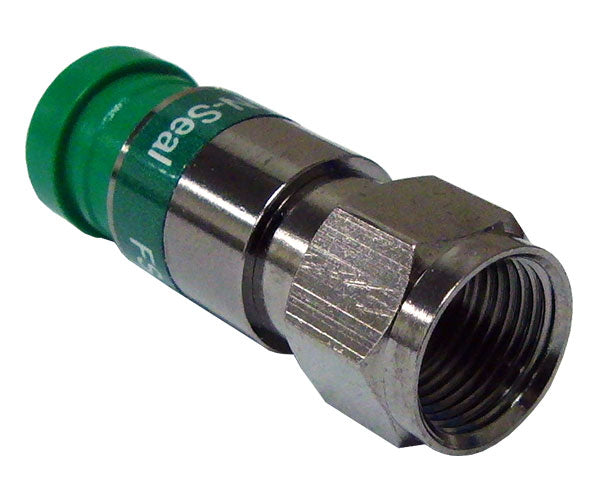

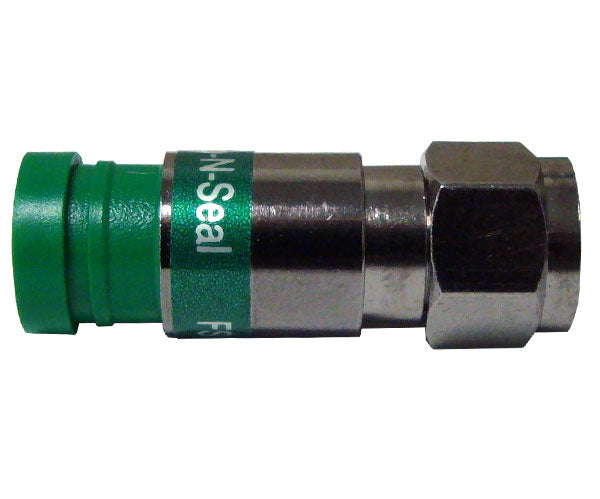

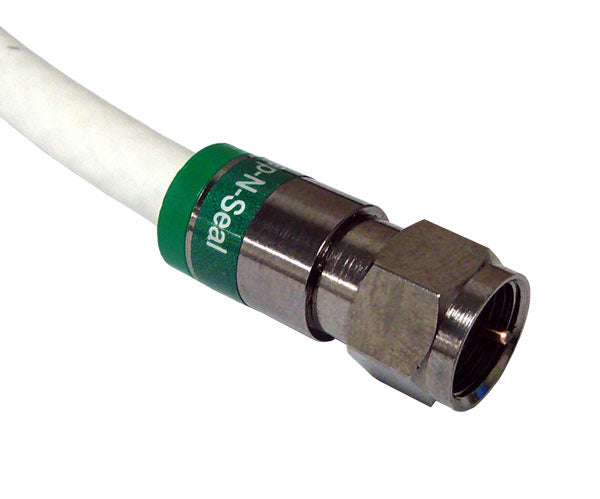

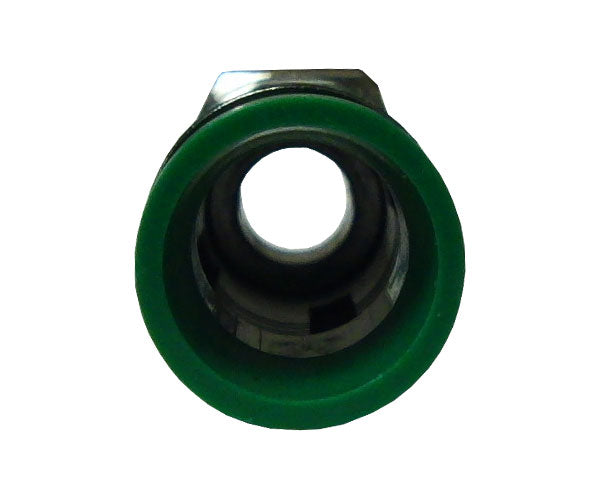

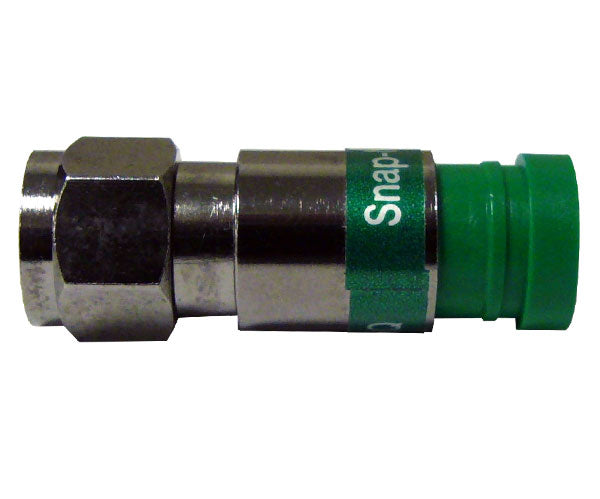

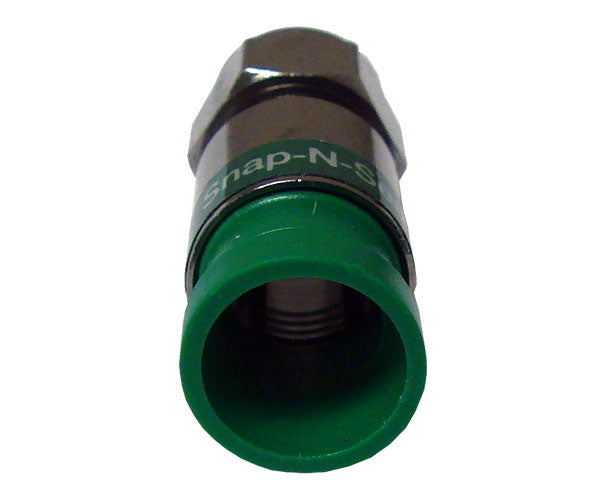

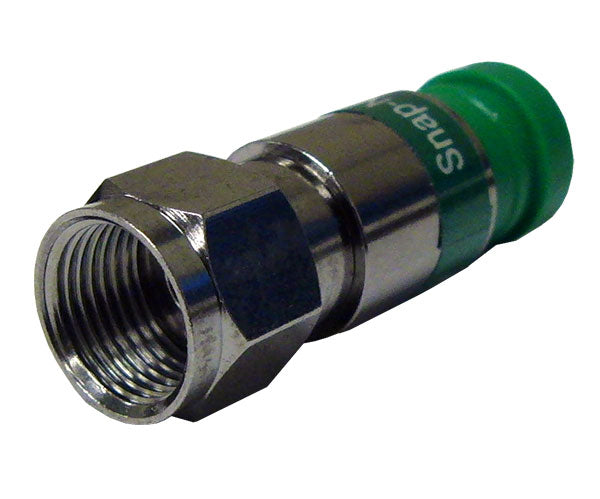

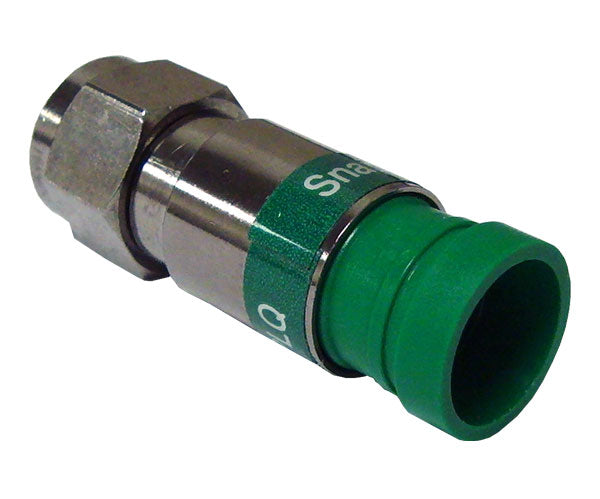

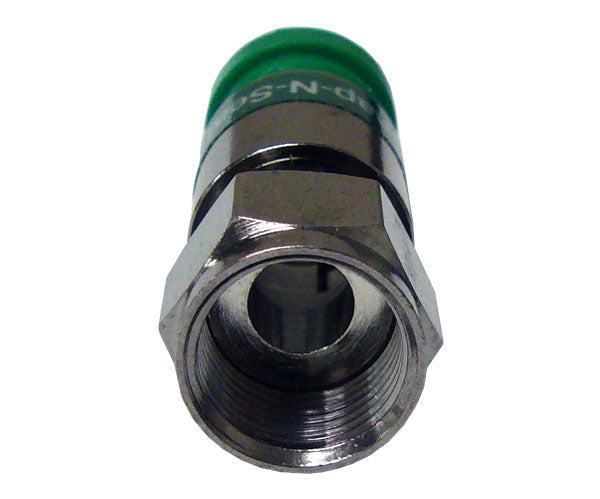

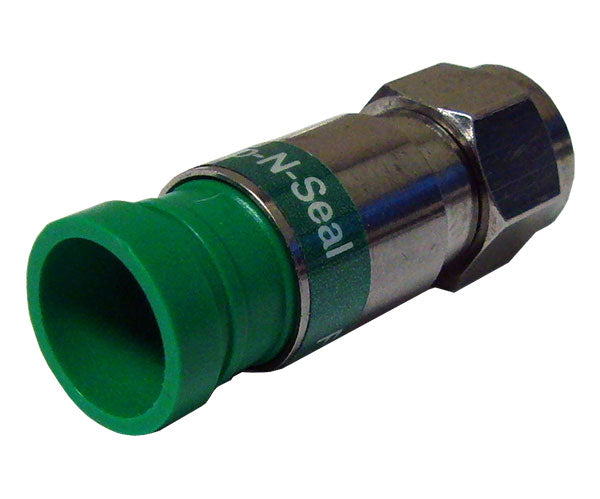

Plenum Quad F-Type Pro Snap N Seal® RG6 Coax Cable Connector
The RG6 Quad Plenum Pro Snap N Seal® Universal F Connector incorporates a patented detachable plastic sleeve guide, simplifying cable conductor insertion and streamlining installation. As the conductor is inserted, the guide moves forward and detaches upon proper insertion, allowing for easy verification. Featuring an internal O-ring at the nut base for simplified installation and ProSNS™ technology, this high-quality Universal F Connector ensures effortless installation.
Where to use Coaxial Cable
A broad range of applications exists for coaxial cabling. It is widely used with home entertainment equipment such as Cable Television (CATV) and TV Cable Wire, Digital HDTV, Audio / Video, and Digital Satellite. It is also used with security cameras and GPS Systems.
Applications
Coaxial Cable is used to transmit radiofrequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Coaxial Cable also provides protection of the signal from external electromagnetic interference. Coaxial Cables connect radio transmitters and receivers to their antennas, computer network (Internet) connections, and digital audio (S/PDIF), and distribute cable television signals.
Features
Features
- No Blind Cable Entry
- Easy to Compress
- Fits Standard and Quad Shielded Plenum Coaxial Cable
- Green Ring
- Supports 4K, Ultra HD & GBPS Networks
- 75 Ohm Impedance
- 3GHz. Performance
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| MECHANICAL CHARACTERISTICS | |
| CONNECTOR SYSTEM COMPATIBILITY | COAX |
| CONNECTOR INTERFACE TYPE | F |
| GENDER | MALE - PLUG |
| CONNECTOR SERIES NAME | PROSNS |
| COLOR BAND | GREEN |
| LOCKING | NO |
| TOOL COMPATIBILITY | CPLCCT‑SLMR, CPSNSCT‑596 (COMPRESSION), PSA59/6 (STRIP) |
| TERMINATION TYPE | COMPRESSION |
| CABLE CENTER CONDUCTOR DIAMETER LIMITS | .0399 – .0418 INCH |
| CABLE DIELECTRIC DIAMETER LIMITS | .166 – .193 INCH |
| CABLE OUTER JACKET DIAMETER LIMITS | .230 – .281 INCH |
| STANDARDS | |
| RG TYPE | 6 |
| SERIES TYPE | 6 |
| APPLICABLE ENVIRONMENTAL AND OTHER PROGRAMS | |
| EU CE MARK | YES |
| MATERIALS | |
| MATERIAL | NICKEL PLATED BRASS / GOLD PLATED |
| ELECTRICAL CHARACTERISTICS | |
| NOMINAL CHARACTERISTIC IMPEDANCE | 75 OHM |
| RETURN LOSS (DC–1 GHZ) | 31 DB RETURN LOSS < 1.05 VSWR |
| RETURN LOSS (DC–2 GHZ) | 26 DB RETURN LOSS < 1.09 VSWR |
| RETURN LOSS (DC–3 GHZ) | 21 DB RETURN LOSS < 1.18 VSWR |
| ELECTRICAL CHARACTERISTICS NOTES | CABLE PULLOUT FORCE EXCEEDS 40 LBS |
Additional Information
To learn more about our RG6 Coaxial Cable Connectors here is a link to a page containing more information on our premium RG6 Coaxial Cable Connectors.
Installation Instructions
- Fold back the braid and position the connector.
- Push the cable end into the connector until the cable dielectric is flush with the end of the post.
- Compress connector sleeve.
What's In the Box
What's In the Box
- Qty 1 - RG6 Quad Plenum Pro Snap N Seal® Universal F-Type Connectors
