RG6 Coaxial Cable, Siamese, 18 AWG BC Conductor, 95% BC Braid, 18/2 Stranded BC, 500' or 1,000', Black

SKU: CC1-2916BK-65SR
ROHS Compliant logo


RG6 Siamese Coaxial Cable for Indoor CCTV Networks

The RG6 Siamese Coaxial Cable is frequently employed in the wiring of satellite, digital CCTV, and HDTV television networks, demanding an elevated level of shielding for optimal signal retention. Distinguished by a denser jacket and a thicker conductor compared to RG59, this RG6 coaxial cable facilitates data transfer at twice the speed. We offer RG6 dual shield and quad shield cables to enhance signal retention, ensuring exceptionally sharp and clear digital images. The RG6 Coaxial Cable operates at 75 Ohms and undergoes sweep testing at 3GHz for reliable performance.

This cable is compatible with our CN3-1594-59 BNC RG59 and CN2-7887-RG6 F-Type RG6 Connectors.


Coaxial Cable is used to transmit radio frequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Coaxial Cable also provides protection of the signal from external electromagnetic interference. Coaxial Cables connects radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distributing cable television signals. This makes RG6 cable an ideal solution for coax cable for internet usage.

Product Quality

Our high quality RG6 CCTV Siamese Coaxial Cable with 18/2 stranded BC power wires consists of an 18 AWG solid Bare Copper (BC) inner conductor that transmits the signal. It is wrapped in a dielectric polyethylene insulation. This RG6 coaxial cable comes with 95% Bare Copper Braid Shield. This is covered with a flame rated PE jacket (CM).

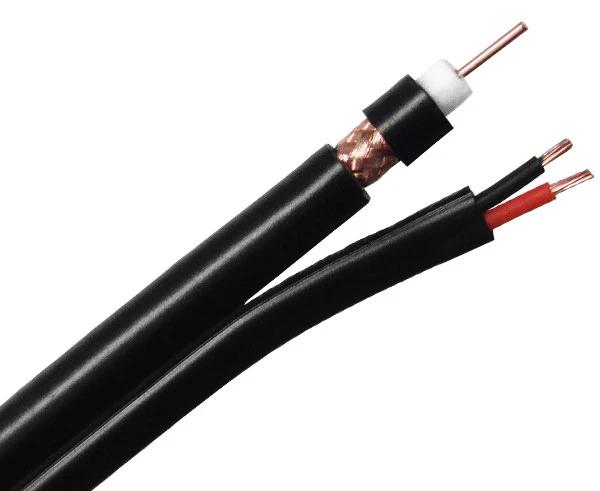

RG6 Coaxial Cable, Siamese, 18 AWG BC Conductor, 95% BC Braid, 18/2 Stranded BC

Where to use Siamese Coaxial Cable

A broad range of applications exist for coaxial cabling. It is widely used with entertainment equipment such as TV, VCR, DVR, satellite receivers. It is also used with security cameras, and GPS Systems. Since this RG6 Siamese Coaxial Cable has a solid copper conductor and two stranded bare copper power wires, it is the perfect cable choice for any CCTV transmission or surveillance system to run power and data in a single pass. This RG6 Siamese Coaxial Cable is available in black jacket. The 500' is supplied on a reel in box or on a spool. The 1000' is supplied on a wooden spool.

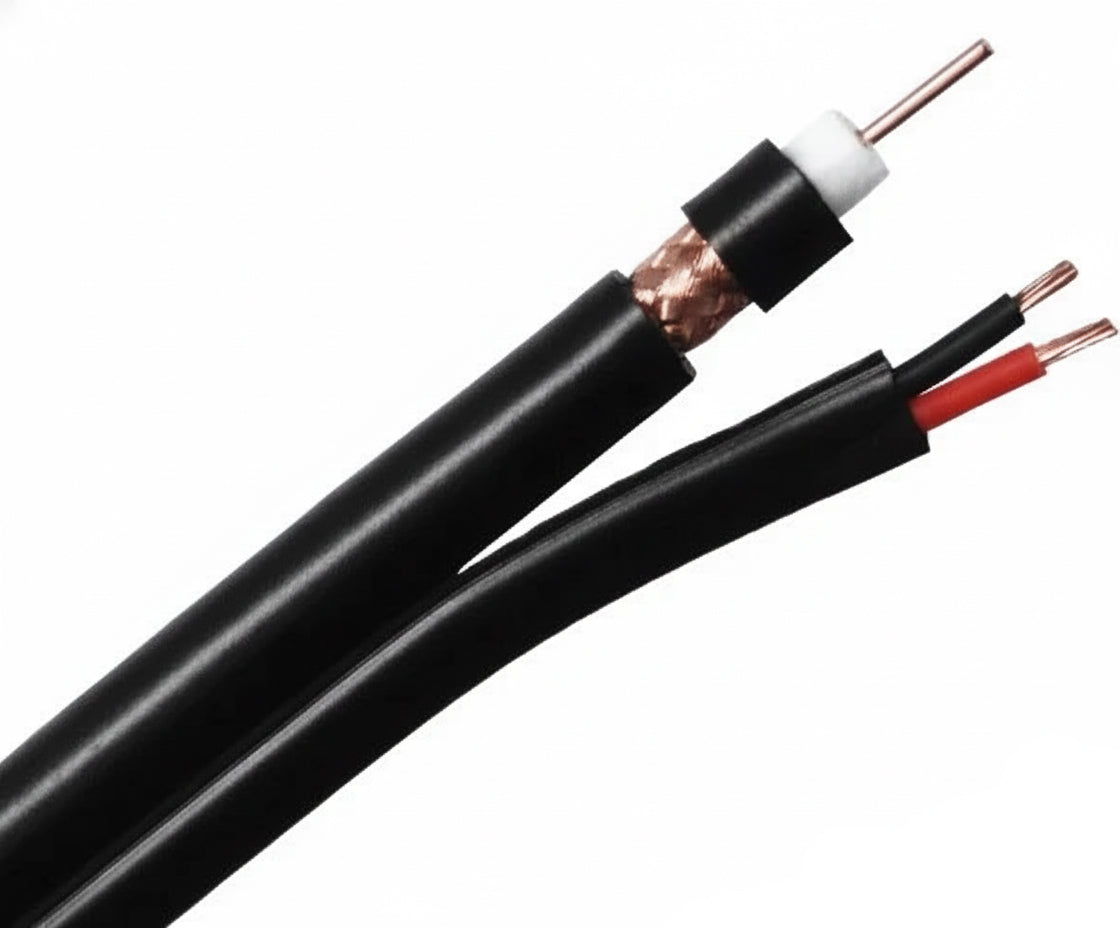

RG6 Siamese Coaxial Cable Diagram

Container and Trucking Quotes
To avoid excessive shipping charges on 10 or more of this product please call 951-824-1571 or email to get a shipping quote.



  • Data and Power CCTV Surveillance Cameras and Radio Frequency Applications
  • 18 AWG Solid Bare Copper (BC) Conductor
  • BC Stranded 18/2 Power Wires
  • Flame Rated PVC Jacket  & UV Resistance
  • Sweep Tested to 3.0 GHz.
  • 75 Ohm
  • 95% Bare Copper Wire Braided Shielding
  • CM Rated
  • RoHS Compliant
  • Supplied in Black
  • 500' is Supplied on Spool
  • 1000' is Supplied on Wooden Spool.



Physical Characteristics

Conductor Size: 18 AWG
Conductor Material: Solid Bare Copper
Dielectric Material: Foam PE
Shielding: 95% Solid Bare Copper
Outer Jacket Material: FRPVC  & UV Resistance

Electrical Characteristics

Nominal Impedence: 75 Ohm
Nominal Velocity of Propagation: 83%
Nominal Capacitance: 53.48 Pf/M
Nominal Conductor DC Resistance DCR @ 20™C: 21.1
Maximum Operating Voltage-UL: 300

Mechanical Characteristics

Operating Temperature Range: -20°C to +60°C
Maximum Recommended Pulling Tension: N/A

Additional Information

Additional Information

Where to use Siamese Coaxial Cable

To learn more about our RG6 Bulk Coaxial Cable here is a link to a page containing more information on our premium RG6 Bulk Coaxial Cable.

What's in the Box

What's in the Box

  • RG6 Siamese, 18 AWG BC, 95% BC Wire Braid Shield, BC Stranded 18/2 Black Coax Cable
  • 1000ft Increments on Wooden Spool and 500' Increments on Spool
