RG6 Coaxial Cable, Siamese CCTV Plenum CMP, 18/2 AWG Stranded BC Conductors, 18 AWG BC Conductor, 95% BC Braid, 1000ft, White

$824.92
SKU: CC2-2098WH-6SW

UL Listed logo ROHS Compliant logo ETL Verified logo Made in USA

Description

RG6 Siamese Plenum Coaxial Cable with 18AWG BC Center Conductor for Indoor CCTV

The RG6 CCTV Siamese Plenum Coaxial Cable is extensively utilized for CCTV surveillance cameras and radio frequency applications. Featuring a CL2-designated jacket, it's ideal for in-wall installations. Operating at 75 Ohms, this cable does not accommodate high Gigahertz frequencies.

This cable is compatible with our CN2-7885-RG6P F-Type RG6 Connector.

Applications

Siamese Plenum Coaxial Cable is used to transmit radio frequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Siamese Plenum Coaxial Cable also provides protection of the signal from external electromagnetic interference. Siamese Plenum RG6 Coax Cables connects radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distributing cable television signals. This makes RG6 cable an ideal solution for coax cable for internet usage.

Product Quality

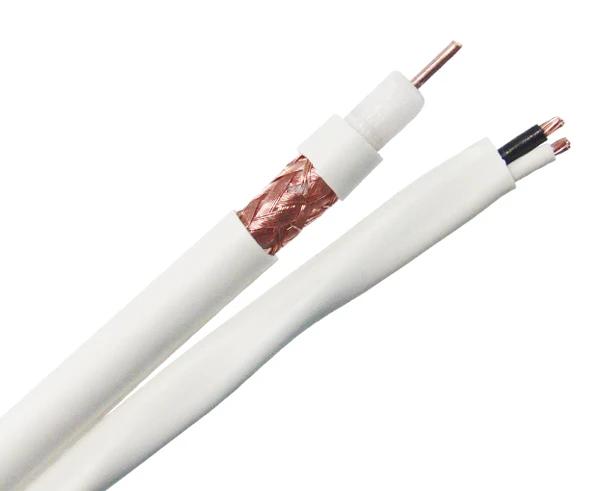

This RG6 Cable consists of an 18 AWG solid bare copper center conductor that transmits the signal. It is surrounded by a Fluorinated Ethylene-Propylene (FEP) dielectric insulation, and 95% bare copper wire braid shielding. It includes 2x18 AWG-stranded bare copper conductors. This is covered with a Plenum CMP jacket. Our cables are UL listed, ETL Listed, and RoHS Compliant.

RG6 Coaxial Cable, Siamese CCTV Plenum CMP, 18 AWG BC Conductor, 18/2 AWG Stranded BC Conductors, 95% BC Braid,

Where to use Plenum Coaxial Cable

A broad range of applications exists for coaxial cabling. It is widely used with entertainment equipment such as TV, VCR, DVR, satellite receivers in commercial settings such as schools and hospitals. It is also used with security cameras and GPS Systems. Since this RG6 Siamese Plenum Coaxial Cable has a solid copper conductor and two stranded bare copper power wires, it is the perfect cable choice for any CCTV transmission or surveillance system to run power and data in a single pass.

Why Plenum?

A plenum space is the open area above the drop ceiling or below the floor that is used for air circulation in buildings. This could be a problem if there is ever a fire. Using non-plenum cables in a plenum space can spread fire and toxic smoke throughout a building. Plenum cable uses a flame-retardant jacket that is made of special plastics to prevent the release of harmful smoke. Plenum cable is mostly used in commercial applications such as schools and hospital buildings that house a large population of people. It also is required in most multi-floor business buildings with large plenum space areas.

Container and Trucking Quotes
To avoid excessive shipping charges on 10 or more of this product please call 951-824-1571 or email support@primuscable.com to get a shipping quote.

Features

Features

  • Premium RG6 Siamese Plenum Coaxial Cable
  • 18 AWG Solid Bare Copper Center Conductor
  • Stranded Bare Copper (BC) 18/2 Power Supply Wires
  • Suitable for Distribution of Audio/Video, Radio Frequency CCTV-MATV, Computer/Data Processing and CCTV Transmissions
  • Sweep-Tested To 3.0 GHz
  • 75 Ohm
  • 95% Bare Copper Braid Shielding
  • UL and ETL Listed
  • Plenum CMP Rated Jacket
  • Improved Audio and Video Performance
  • RoHS Compliant
  • Made In The USA

Specifications

Specifications


Physical Characteristics

Conductor Size: 18 AWG
Conductor Material: Solid Bare Copper (BC)
Dielectric Material: Foam FEP
Braid Shielding: 95% Bare Copper Wire Braiding
Outer Jacket Material: Plenum
Power Cable Conductor Size: 18/2 AWG
Power Cable Conductor Material: Stranded Bare Copper
Power Cable Insulation Material: PVC (Black/White)

Electrical Characteristics

Nominal Impedance: 75 Ohm
Nominal Velocity of Propagation: 84%
Nominal Capacitance: 15.8 Pf/ft
Nominal Conductor DC Resistance DCR @ 20™C: N/A
Maximum Operating Voltage-UL: N/A

Mechanical Characteristics

Operating Temperature Range: -20°C to +75°C
Maximum Recommended Pulling Tension: N/A

Additional Information

Additional Information

Where to use Plenum Coaxial Cable

To learn more about our RG59 Bulk Coaxial Cable here is a link to a page containing more information on our premium RG59 Bulk Coaxial Cable.

To learn more about our CMP Rated Cable here is a link to a page containing more information on our premium CMP Rated Cable.

What's in the Box

What's in the Box

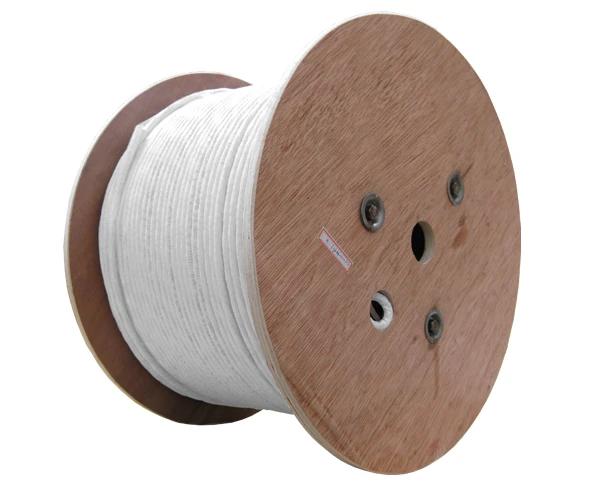

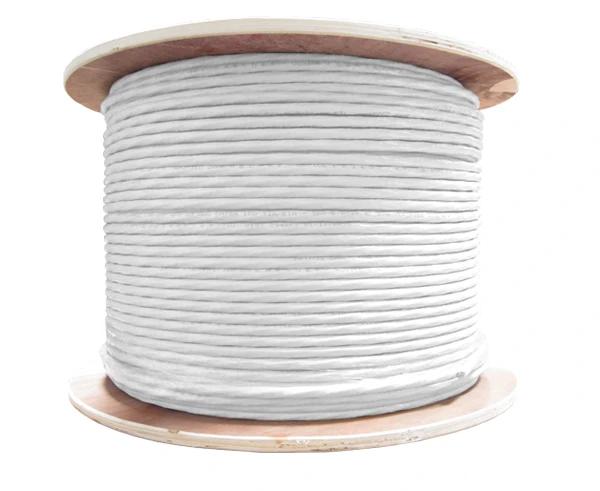

  • 1000ft of White RG6 Siamese CCTV Plenum Coaxial Cable on Wooden Spool.
