Description
Description

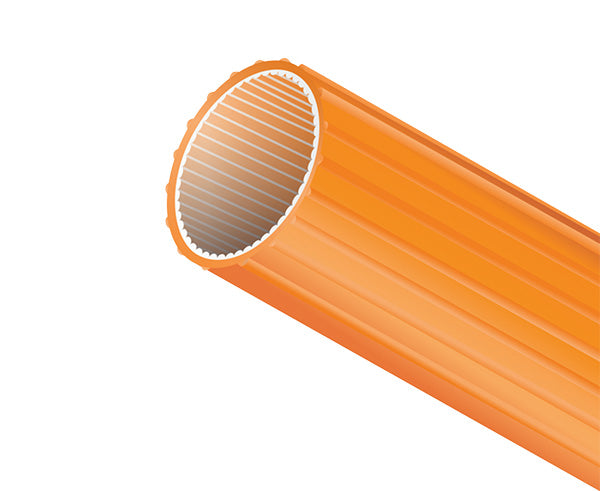

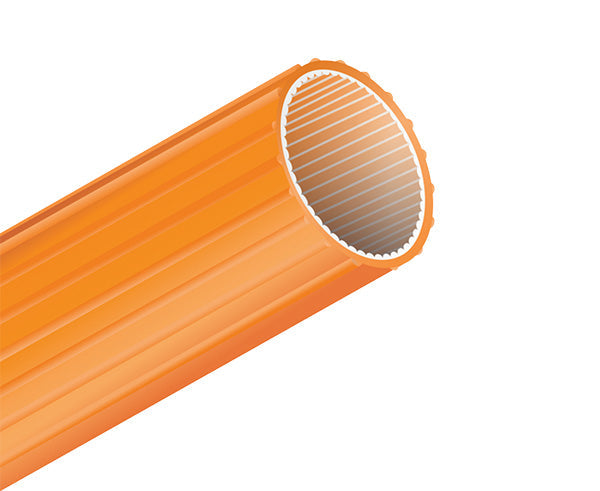

Ribbed In/Out Standard HDPE Conduit, from 1 to 1 ½ inches
HDPE duct featuring inner and outer ribs. The internal ribs minimize friction, while external ones deter spiraling and ease innerduct pulling into larger conduits. Optional Silicore ULF lining offers permanent lubrication.
For more information on the different types of Dura-Line products we carry, view our Dura-Line page here.
Installations
Applications
- Long Haul
- CellularDAS
- Renewable Energy
- Rails / Tunnels
- Electrical
- Campus Healthcare Industrial
- Transportation
- Smart Cities
- Airports
Features
Features
- Manufactured from flexible HDPE, makes gradual bends without special equipment
- External ribs help reduce spiraling during duct installation and reduces installation forces when installed into conduit
- Internal ribs reduce the the coefficient of friction during cable placement
- Continuous lengths reduce joining costs
- Excellent low-temperature properties, allows installation in cold climates
- Outstanding long-term cable protection from shifting ground, rock, and root impingement
- Provides a permanent pathway, simplifies future cable repairs or replacement
- Available with multiple ducts per reel
- Footage/Meter Markings
- Internal Ribs
Specifications
Specifications
Available Sizes
Available Sizes
Size Range Available
- 1"
- 1 ¼"
- 1 ½"
Wall Types
-
True SIDR 9
Standard Colors
- Blue
- Orange
- Green
- Brown
- Gray
- White
- Red
- Black
- Terra Cotta
Options
