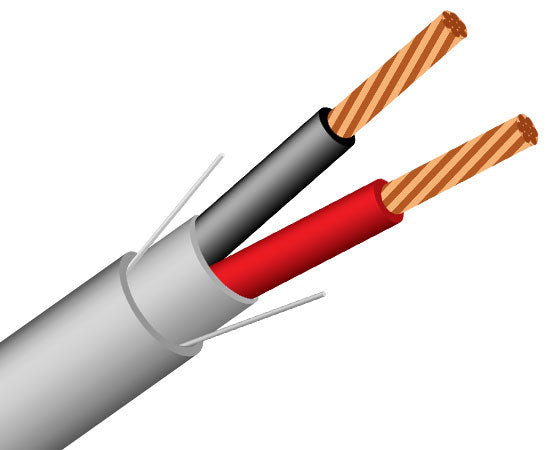

Premium Riser Security Alarm Cable: 20/2, CL3R Rated, 7-Strand Stranded, Shielded, 1000ft, Gray

SKU: ASC2-5522-202
Various lead times may apply to this product. Please contact us for more details.
Made in USA RoHS Compliant ETL Verified logo


20/2 Riser Security Alarm Cable (7 Strand) CMR Rated Shielded 1,000'

The 20/2 Riser Security Alarm Cable boasts two 20-gauge stranded copper conductors tailored for security, intercom, power limited controls, and sound/audio systems. With a 7-strand bare copper construction, shielded by a CL3R rated gray jacket, it's proudly made in the USA. Available in 1,000 ft increments.



  • 20 AWG 2 conductors
  • 7 stranded bare copper conductors
  • PVC insulation
  • AL foil shielded
  • PVC jacket
  • Sequential footage marking
  • CL3R rated jacket
  • ETL listed
  • RoHS compliant
  • NEC articles
    • 22-16 AWG: FPLR/760, CMR/800, CL3R, CL2R/725
    • 14-12 AWG: FPLR, CL3R

Residential or commercial applications

  • Security systems
  • Intercom systems
  • Sound/audio systems
  • Power-limited controls



Physical Construction

Inner Conductor Stranded Bare Copper
Conductor Size 20 AWG
Insulation PVC
Nominal OD 3.61mm
Outer Jacket Diameter .38mm
Jacket Low Smoke PVC
Jacket Color Gray
Number of Strands 7
Inner Conductor Diameter 1.2mm

Electrical Characteristics

Temperature 75°C
Voltage Rating 300V
Center Resistance 21.20 (Ω/km)

Additional Information

Standards ETL | RoHS | CMP
Applications Security Systems | Intercom Systems Sound | Audio Systems | Power-Limited Controls
Jacket Printing 20 AWG 2C (ETL) 725/CL3P 800/CMP (VID:###) XXXX FT
Important Notes The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only.

What's in the Box

What's in the Box

  • Security Alarm Cable - Riser (CMR) - 22/8 AWG, CL3R, Stranded (7 Strand), Shielded, Gray
  • 1000 Ft
