Description

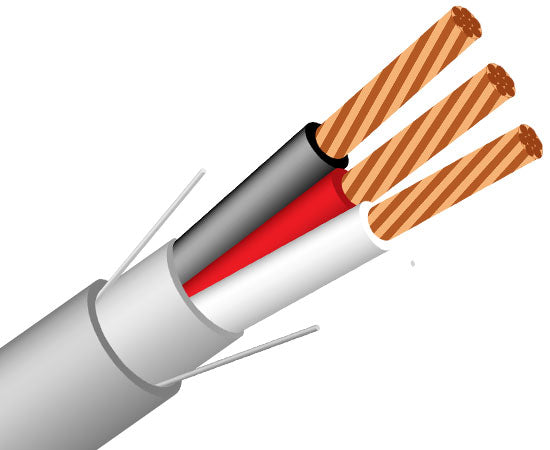

22/3 Riser Security Alarm Cable (7 Strand) CMR Rated Shielded 1,000'
This 22/3 Riser Security Alarm Cable has three 22 gauge stranded copper conductors. It is designed for security systems but can also be used for intercom systems, power limited controls and sound/audio systems. The cables are made from 7 strand bare copper cable. It is shielded with a CL3R rated gray colored jacket and is made in the USA. This 22/3 security cable is supplied in increments of 1,000 ft.
Features
Features
- 22 AWG 3 conductors
- 7 stranded bare copper conductors
- PVC insulation
- AL foil shielded
- PVC jacket
- Sequential footage marking
- CL3R rated jacket
- ETL listed
- RoHS compliant
- NEC articles
- 22-16 AWG: FPLR/760, CMR/800, CL3R, CL2R/725
- 14-12 AWG: FPLR, CL3R
Residential or commercial applications
- Security systems
- Intercom systems
- Sound/audio systems
- Power-limited controls
Specifications
Specifications
Physical Construction |
|
|---|---|
| Inner Conductor | Stranded Bare Copper |
| Conductor Size | 22 AWG |
| Insulation | PVC |
| Nominal OD | 2.54mm |
| Outer Jacket Diameter | .38mm |
| Jacket | Low Smoke PVC |
| Jacket Color | Gray |
| Number of Strands | 7 |
| Inner Conductor Diameter | 1.2mm |
Electrical Characteristcs |
|
|---|---|
| Temperature | 75°C |
| Voltage Rating | 300V |
| Center Resistance | 21.20 (Ω/km) |
Additional Information |
|
|---|---|
| Standards | ETL | RoHS | CMR |
| Applications | Security Systems | Intercom Systems Sound | Audio Systems | Power-Limited Controls |
| Jacket Printing | 22 AWG 3C (ETL) 725/CL3R 800/CMR (VID:###) XXXX FT |
| Important Notes | The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only. |
What's in the Box
What's in the Box
- Security Alarm Cable - Riser (CMR) - 22/3 AWG, CL3R, Stranded (7 Strand), Shielded, Gray
- 1000 Ft
