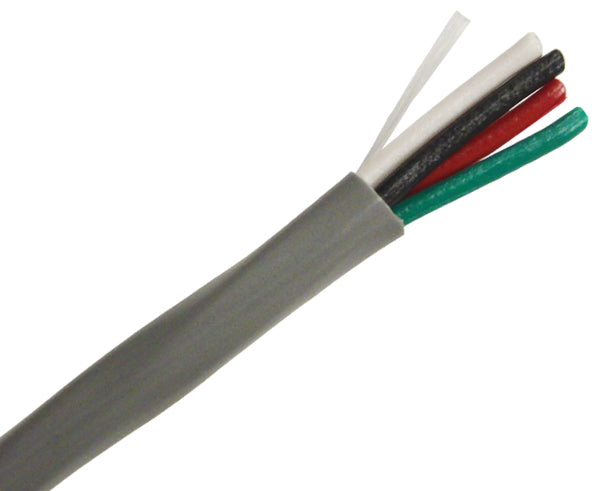

Security Alarm Cable - Riser (CMR) - 22/4 CL3R, Stranded (7 Strand), Unshielded, 1000ft, Gray

$113.11
SKU: ASC-4737/224
Various lead times may apply to this product. Please contact us for more details.
ROHS Compliant logo ETL Verified logo Made in USA

Description

Security Alarm Cable 22/4 (7 Strand) CMR FT4 Rated Unshielded

This 22 AWG 4 conductor Security Alarm Cable was designed for Security Systems but can also be used for intercom systems, power limited controls and sound/audio systems. The cables are made from 7 strand bare copper cable. It is unshielded with a FT4 Rated Gray colored jacket and is made in the USA. This 22/4 Security Cable is supplied in increments of 1000 ft.

Features

Features

  • 22 AWG 4 Conductors
  • 7 Stranded Bare Copper Conductors
  • PVC Insulation
  • Unshielded
  • PVC Jacket
  • Sequential Footage Marking
  • CMR FT4 Rated
  • ETL Listed
  • RoHS Compliant
  • NEC Articles
    • 22-16 AWG: FPLR/760, CMR/800, CL3R, CL2R/725
    • 14-12 AWG: FPLR, CL3R

Residential Or Commercial Applications:

  • Security Systems
  • Intercom Systems
  • Sound/Audio Systems
  • Power-Limited Controls

Specifications

Specifications

Quick Reference Guide

Quick Reference Guide

PART NO.

PRODUCT DESCRIPTION

*(ASC-) Riser CMR Unshielded Alarm and Security Cable

ASC-1928/222/71 22 AWG / 2 Conductor (7 Strands) Unshielded
ASC-4737/224 22 AWG / 4 Conductor (7 Strands) Unshielded
ASC-1931/226 22 AWG / 6 Conductor (7 Strands) Unshielded
ASC-1881/182 18 AWG / 2 Conductor (7 Strands) Unshielded
ASC-2928/184 18 AWG / 4 Conductor (7 Strands) Unshielded
ASC-1889/186 18 AWG / 6 Conductor (7 Strands) Unshielded
ASC-1890/188 18 AWG / 8 Conductor (7 Strands) Unshielded
ASC-1893/162 16 AWG / 2 Conductor (19 Strands) Unshielded
ASC-1895/164 16 AWG / 4 Conductor (19 Strands) Unshielded
ASC-1896/142 14 AWG / 2 Conductor (19 Strands) Unshielded

*(ASC2-) Riser CMR Shielded Alarm and Security Cable

ASC2-2903/222 22 AWG / 2 Conductor (7 Strands) Shielded
ASC2-326/223 22 AWG / 3 Conductor (7 Strands) Shielded
ASC2-3236/224 22 AWG / 4 Conductor (7 Strands) Shielded
ASC2-2904/226 22 AWG / 6 Conductor (7 Strands) Shielded
ASC2-3237/228 22 AWG / 8 Conductor (7 Strands) Shielded
ASC2-5522/202 20 AWG / 2 Conductor (7 Strands) Shielded
ASC2-2895/182 18 AWG / 2 Conductor (7 Strands) Shielded
ASC2-327/183 18 AWG / 3 Conductor (7 Strands) Shielded
ASC2-328/184 18 AWG / 4 Conductor (7 Strands) Shielded
ASC2-329/186 18 AWG / 6 Conductor (7 Strands) Shielded
ASC2-330/188 18 AWG / 8 Conductor (7 Strands) Shielded
ASC2-331/162 16 AWG / 2 Conductor (19 Strands) Shielded
ASC2-332/163 16 AWG / 3 Conductor (19 Strands) Shielded
ASC2-3036/164 16 AWG / 4 Conductor (19 Strands) Shielded

*(ASC1-) Plenum CMP Unshielded Alarm and Security Cable

ASC1-1004/222 22 AWG / 2 Conductor (7 Strands) Unshielded
ASC1-2664/224 22 AWG / 4 Conductor (7 Strands) Unshielded
ASC1-1006/226 22 AWG / 6 Conductor (7 Strands) Unshielded
ASC1-2772/182 18 AWG / 2 Conductor (7 Strands) Unshielded
ASC1-1841/1810 18 AWG / 10 Conductor (7 Strands) Unshielded
ASC1-5013/1812 18 AWG / 12 Conductor (7 Strands) Unshielded
ASC1-2905/162 16 AWG / 2 Conductor (19 Strands) Unshielded
ASC1-1843/164 16 AWG / 4 Conductor (19 Strands) Unshielded

*(ASC3-) Plenum CMP Shielded Alarm and Security Cable

ASC3-458/222 22 AWG / 2 Conductor (7 Strands) Shielded
ASC3-460/224 22 AWG / 4 Conductor (7 Strands) Shielded
ASC3-461/226 22 AWG / 6 Conductor (7 Strands) Shielded
ASC3-474/182 18 AWG / 2 Conductor (7 Strands) Shielded
ASC3-477/186 18 AWG / 6 Conductor (7 Strands) Shielded
ASC3-478/188 18 AWG / 8 Conductor (7 Strands) Shielded

What's in the Box

What's in the Box

  • Security Alarm Cable - Riser (CMR) - 22/4 AWG, CL3R, Stranded (7 Strand), Unshielded, Gray
  • 1000 Ft
