Former Part Number: CN1-007-4CUL
Description

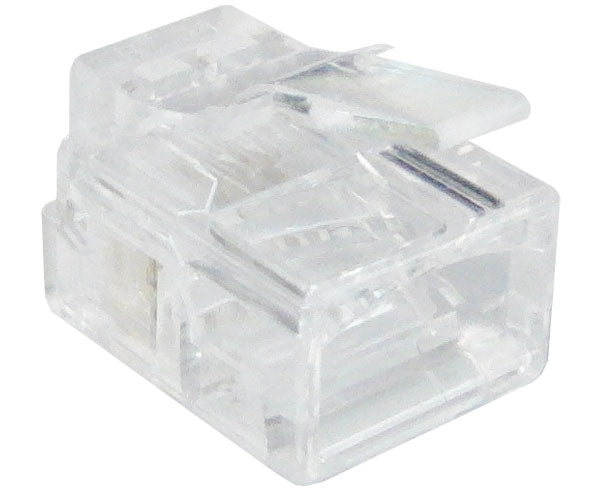

RJ11 Plug, 6 Position, 4 Conductor, For Round Solid and Stranded Wires (for Telephone cords).
Features
Features
- 50µ” Gold Plated Contacts
- Works On Round Solid Conductors
- Transparent Housing For Easy Conductor Alignment
- 6 Pins x 4 Conductors
- Fits 24 AWG - 28 AWG (0.96 - 1.02 mm OD) Wires
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| ELECTRICAL SPECIFICATIONS | |
| UL Applications | 250 Volts AC Max., At 2 AMPS |
| Dielectric Withstanding Voltage | 500 Volts AC |
| Insulation Resistance | 100 MΩ |
| Termination | Resistance 20mΩ Max After Environmental Testing |
| MECHANICAL SPECIFICATIONS | |
| Cable-To-Plug Tensile Strength | 20 Pound Min. |
| Durability | 350 Matting Cycles |
| PHYSICAL CHARACTERISTICS | |
| Housing | Polycarbonate, UL94V-0 |
| Color | Transparent |
| Contact Blade | Phosphor And Bronze |
| Conductor | Stranded & Solid Wire, 24–28 AWG (Plug Can Be Used For Wire OD’s Of 0.96–1.02 mm) |
| Gold Plating | 50µ” |
Additional Information
To learn more about our Telephone Jacks here is a link to a page containing more information on our premium Telephone Jacks.
What's In The Box
What's In The Box
CN1-7871-7CUL:
- Qty 1 (25 Pack) - RJ11 Modular Plug
