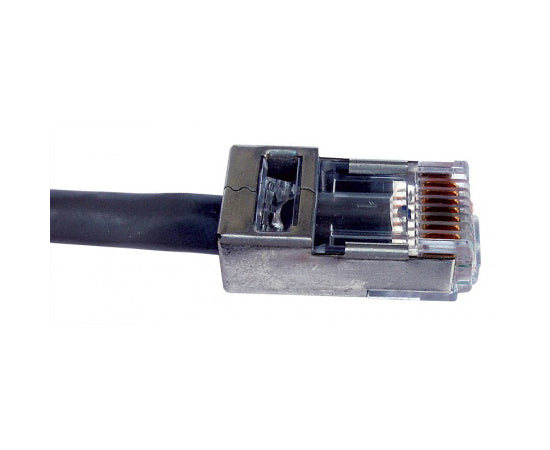

Shielded EZ-RJ45® RJ45 Connector for CAT5E Feed Through Wires

$79.90
SKU: CN1-7850-Z5S
Package Quantity
Made in USA

Former Part Number: CN1-3004-Z5S

Description

Description

Maximize productivity with the shielded EZ-RJ45® connector for CAT5E Ethernet cable. This RJ45 connector allows the wires to be pulled through the front of the EZ-RJ45® in an efficient manner, while maintaining high signal integrity. The EZ to verify wire sequence makes installation of this RJ45 connector quick and error free, which reduces scrap.

The EZ-RJ45® connector is preferable for applications where NEXT, FEXT, and AXT complications are an issue. It is a fully shielded plug, with an internal ground to optimize electrical performance. Shielding reduces crosstalk, providing an unparalleled solution for the market. This makes the EZ-RJ45® connector more reliable, and it works on both solid and stranded cable, which reduces inventory and confusion.

Features

Features

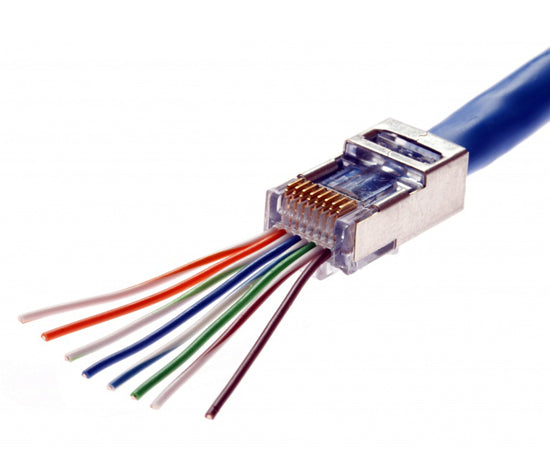

  • EZ-RJ45® design allows the wires to pass through the connector so the twists in each pair can be pulled closer to the contacts than conventional plugs.
  • Maintaining the twists to the point of termination significantly decreases crosstalk and markedly increases performance.
  • Fully shielded products provide reduced pair-to-pair crosstalk, alien crosstalk, and considerably improved immunity to noise at all frequencies.
  • Significantly improve Shannon capacity.
  • Substantially improve noise immunity at all frequencies, especially above 30 MHz when cable balance starts to significantly degrade.

Application Sites

  • Hospitals, medical centers
  • Manufacturing plants
  • Casinos
  • Broadcast studios
  • Structures close to microwave towers or power stations

Specifications

Specifications

Product Details

Connector Plating 50 Micro-Inches Gold Plated
Conductors/Position 8/8
Prongs 2
Cable OD Max: 0.260"
Conductor OD Max: 0.041"

Applications

  • Applications with RF problems or grounding requirements
  • Compatible with solid and stranded wire
  • Compatible with CAT5E cables

Important Notes

The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only.

Additional Information

Additional Information

To learn more about our Shielded EZ Connectors here is a link to a page containing more information on our premium Shielded EZ Connectors.

What's in the box?

What's in the box?

  • Qty 1 (50 Pack and/or 100 Pack) - Shielded EZ-RJ4® Connectors
