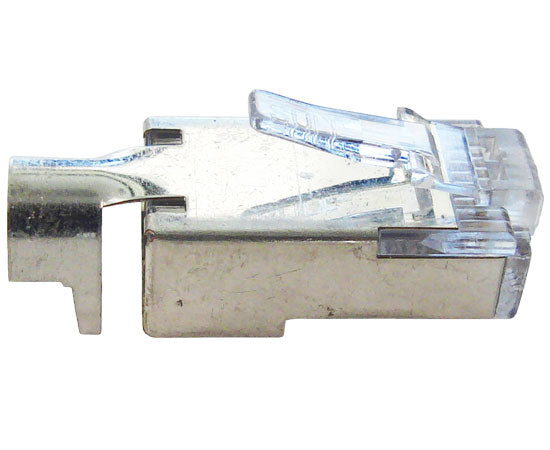

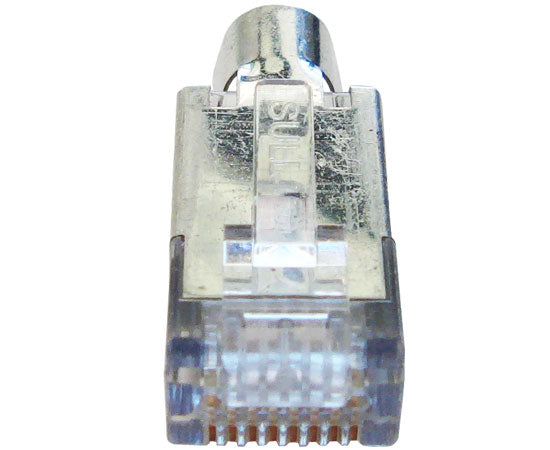

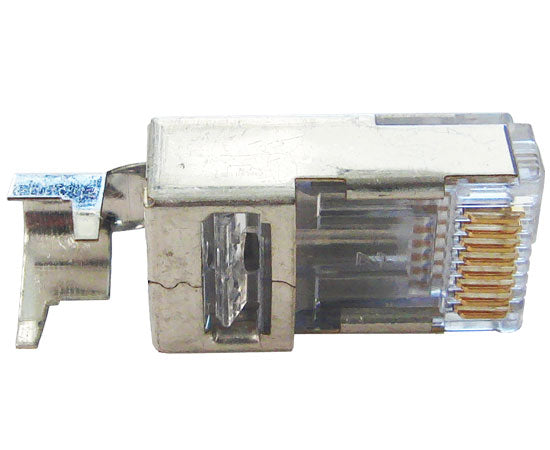

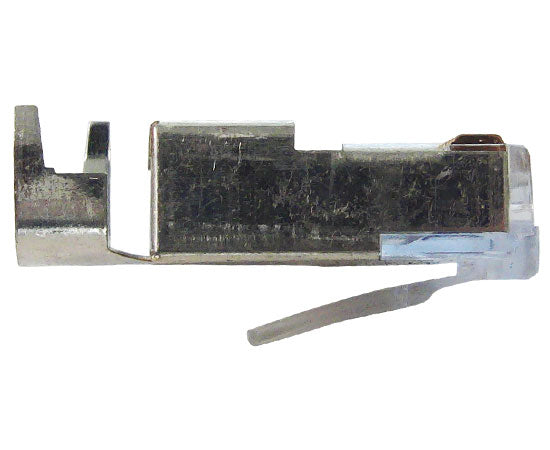

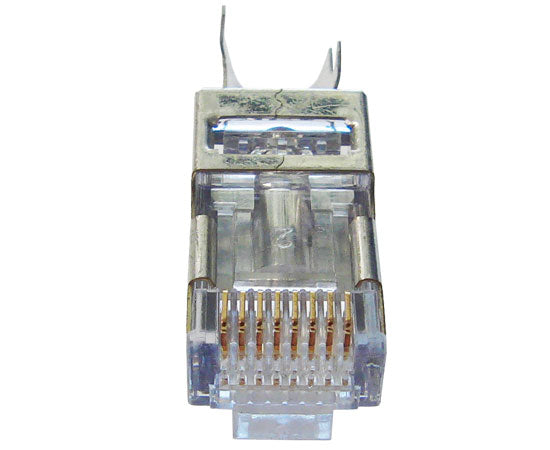

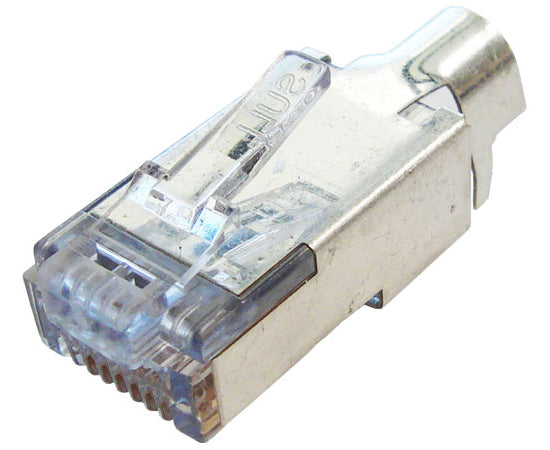

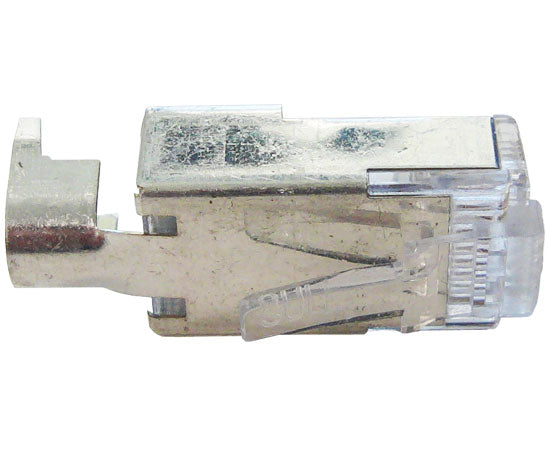

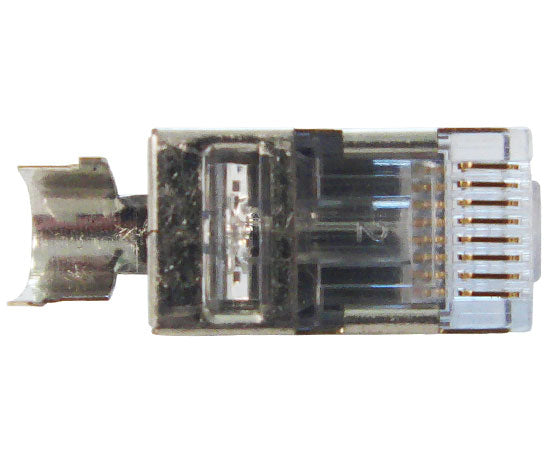

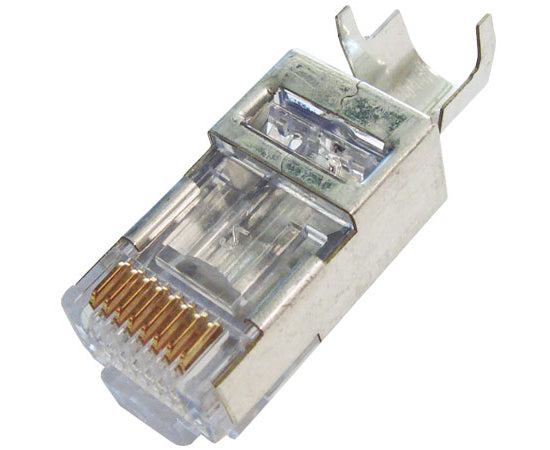

Shielded EZ-RJ45® Connector for CAT6 with External Ground

$93.65
SKU: CN1-7855-Z6S
Package Quantity
Made in USA

Former Part Number: CN1-4565-Z6S

Description

Description

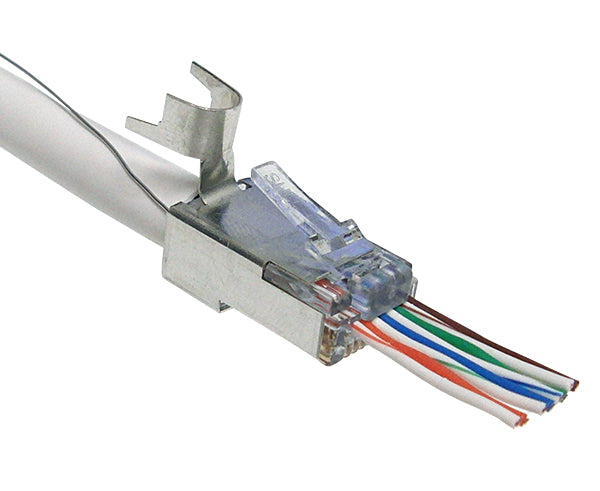

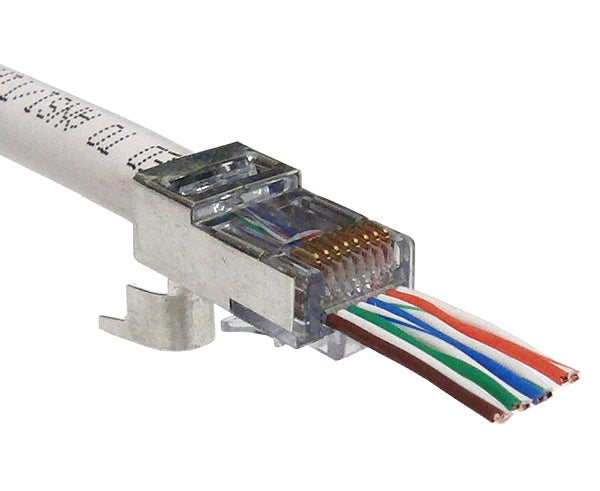

The patented Shielded EZ-RJ45® Connector combines the performance of the EZ-RJ45® design with the advantages of shielded products to reduce crosstalk issues. Simplified twisted pair terminations are achieved by allowing the wires to be inserted through the RJ45 connector and out the front contributing to easy verification of proper wiring order. Electrical performance of the termination is optimized by pulling the RJ45 connector down over the cable jacket and seating it tightly in the rear of the connector.

Crimp and trim in one cycle with the patented EZ-RJ45® Crimp Tool Part Number TL1-2100-ZPRO). Manufactured in the USA. Patented Design.

Features

Features

  • For use in CAT6 Ethernet Data Networks.
  • Category 6 performance per EIA/TIA B.2
  • Patented EZ to verify wire sequence
  • Wires inserted through front of connector
  • Works with solid or stranded wire
  • Faster terminations with reduced scrap
  • FCC compliant, UL rated
  • Simple one piece design - no bars or liners

Specifications

Specifications

Product Details

Connector Plating 50 Micro-Inches Gold Plated
Conductors/Position 8/8
Prongs 2
Cable OD Max 0.280" (7.112mm)
Conductor OD Max 0.041" (1.04mm)

Additional Information

Applications

  • Applications with RF problems or grounding requirements
  • Compatible with solid and stranded wire
  • Compatible with CAT6 cables

Important Notes

The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only.

What's in the box?

What's in the box?

  • Qty 1 (50 Pack or 100 Pack) - CAT6 Shielded EZ-RJ45® Connector
