Short Roller Ball - DS Series - 10 Pack

by GRI
SKU: DS-03-12
Loop Type
Various lead times may apply to this product. Please contact us for more details.

These products are all Made to Order

Which means they are non-cancelable and non-refundable

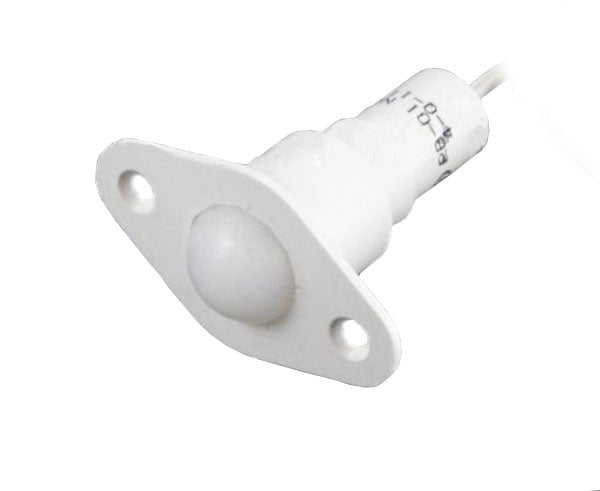

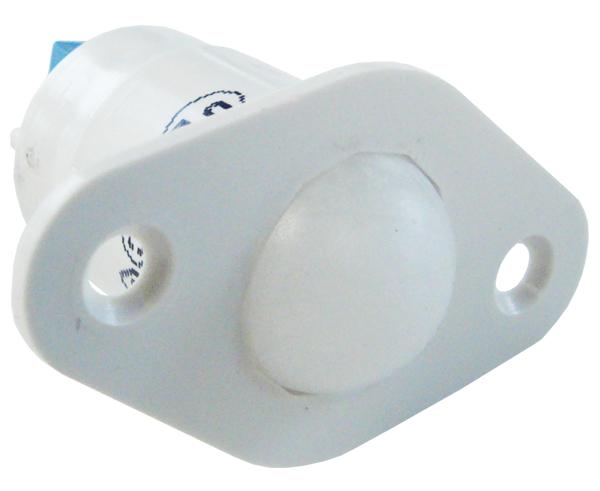

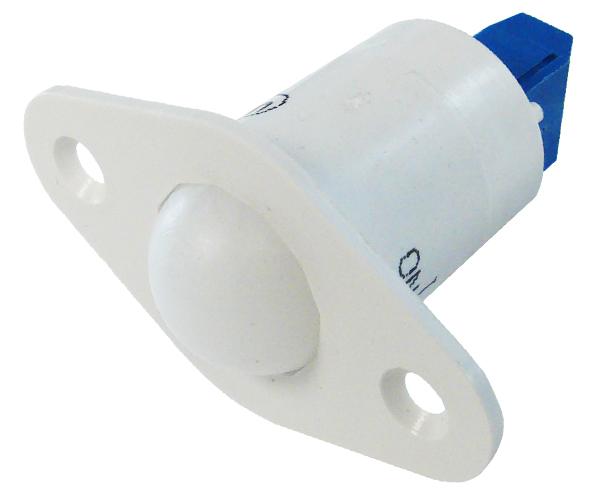

Short Roller Ball - 10 Pack

The new Short Roller Ball is a unique combination of many features most requested by today's top install technicians. The single mounting configuration also eliminates the need for multiple stock variations like those required for horizontal and vertical mounting.

The Short Roller Ball is so versatile it can be used in place of a regular plunger switch or wheel type switch. The flanged collar insures positive and reliable retention


  • 360° of Ball Access, Provides Smooth Travel of the Plunger for Longer Life & Better Reliability
  • Screw Down Flange

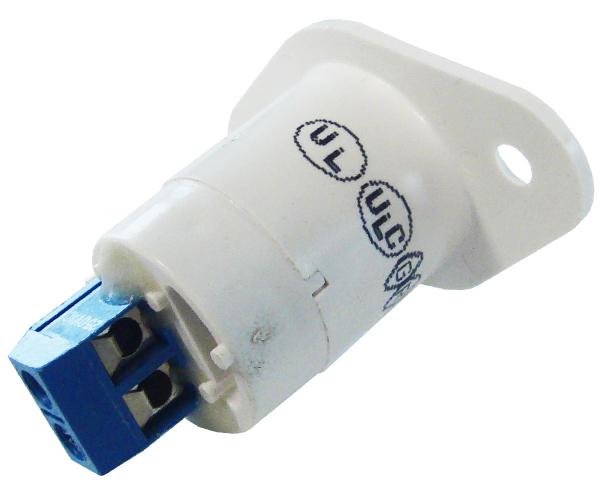

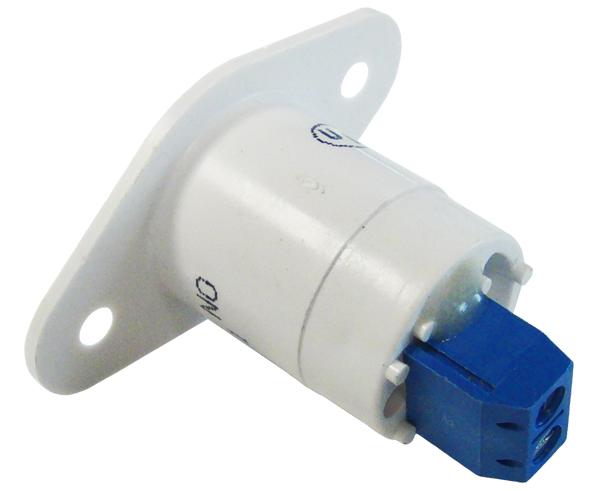

  • 12” Wire Leads #22AWG or Screw Terminals
  • Jacketed Cable, Zip Cord, Longer Leads Available On Request
  • Hermetically Sealed
  • Plated Contacts Resist Sticking and/or Freezing
  • Built-in E.O.L. Resistors and Diodes Upon Request

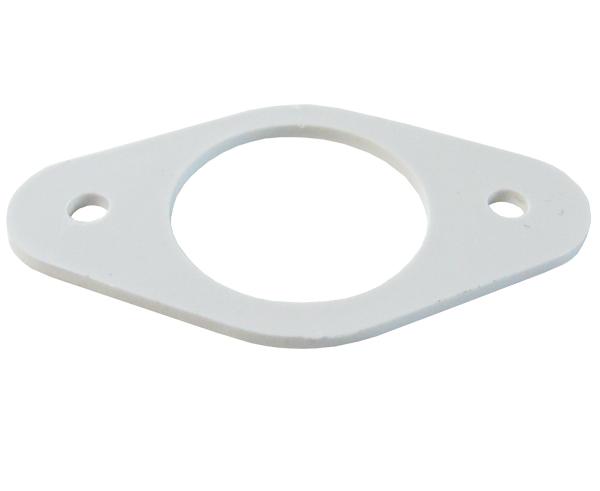

  • Spacer and Mounting Hardware Included
  • Supervisory Loops Upon Request
  • Lifetime Warranty
  • Color: White or Brown
  • Made In U.S.A.


What's In The Box

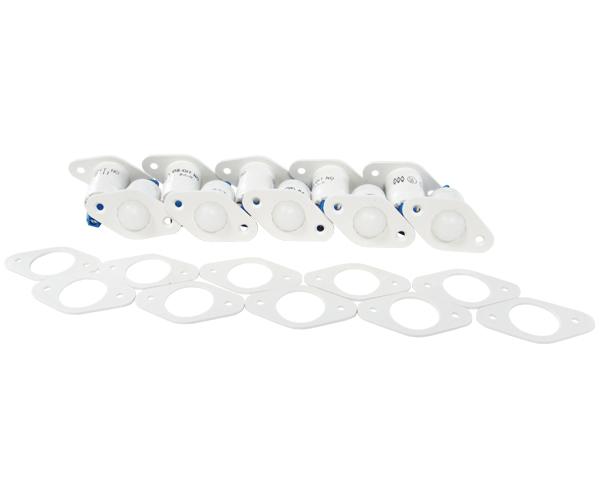

  • 10 x Short Roller Ball Switches + Hardware + Spacers
