Description
Round Cable Strip & Ring Tool, 4.5 - 29 mm

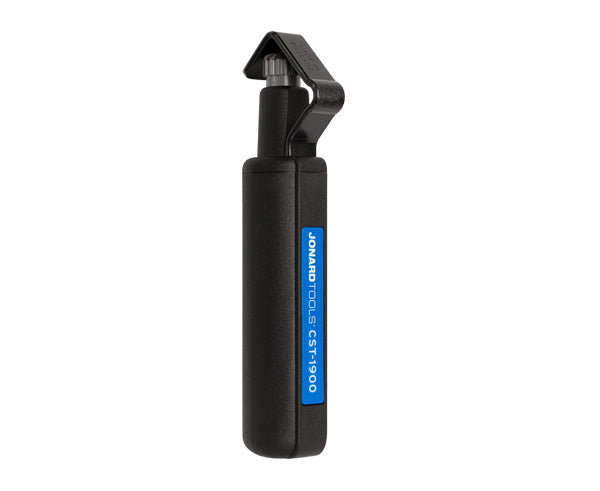

The PATENTED CST-1900 Round Cable Strip & Ring Tool is designed for fast and precise removal of cable jackets from round cables that are 3/16” to 1 1/8” (4.5 mm-29 mm) in diameter.
Features
Features

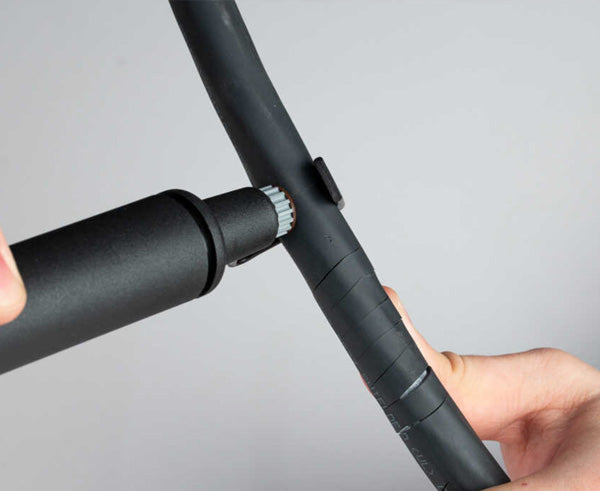

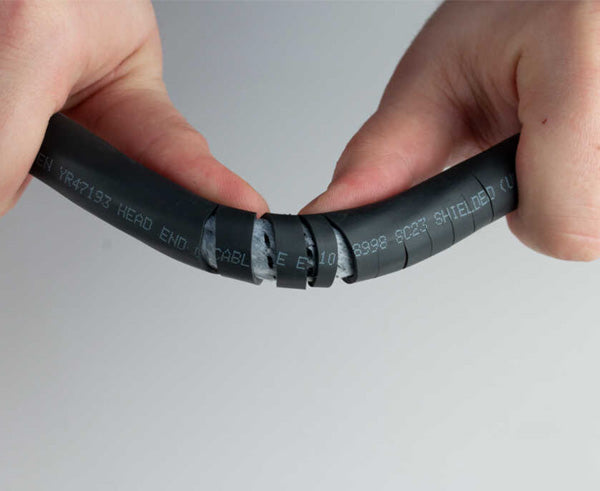

- Patented stripping mechanism provides a Spiral Stripping Mode to strip and remove tough insulations
- Cuts through a variety of jacket materials such as PVC, rubber, PE, and many others

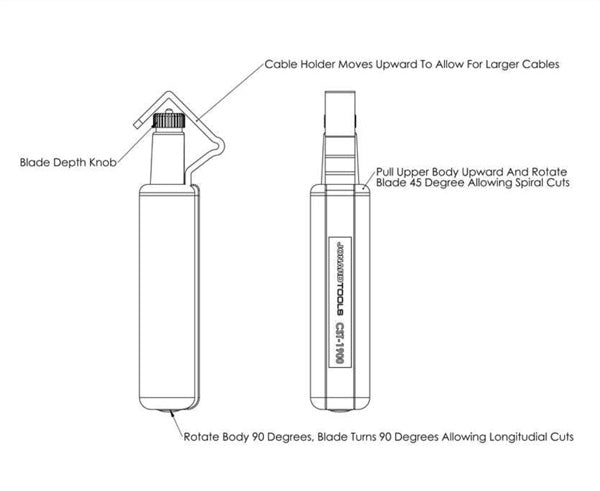

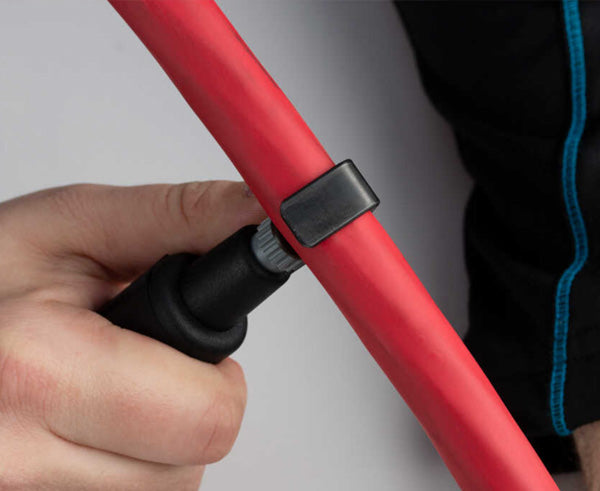

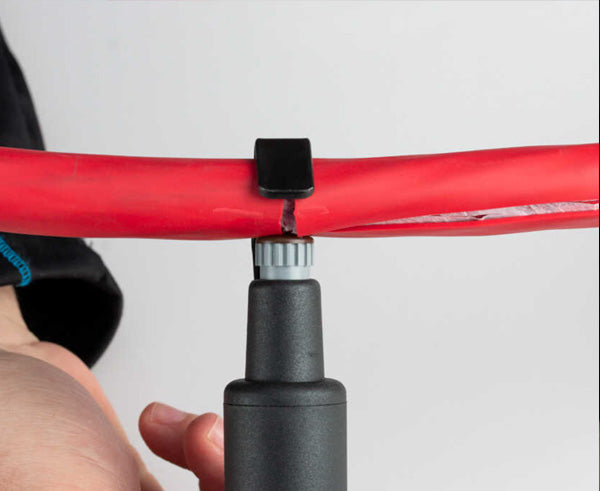

- Triple action design makes longitudinal cuts for end stripping, spiral cuts for end and mid-span stripping, and circular cuts for jacket removal

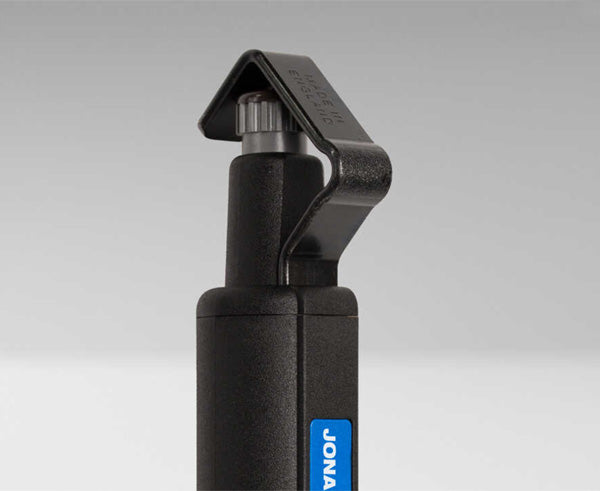

- Spring-loaded blade can be rotated 90 degrees for versatile slitting and can be adjusted for multiple round cable sizes from 3/16" to 1 1/8" (4.5 mm-29 mm) in diameter

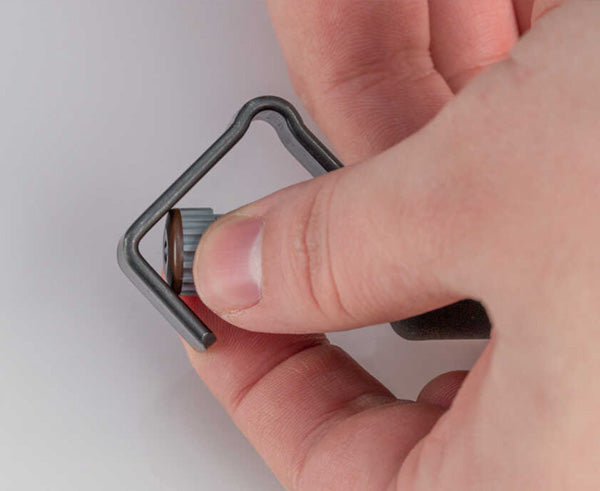

- Blade depth 0 mm-3 mm
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| CUT TYPE | SLIT, RING |
| CABLE TYPE | JACKET, ROUND DISTRIBUTION |
| CABLE DIAMETER | 3/16"-1 1/8" (4.5 MM-29 MM) |
| BLADE DEPTH | 0 MM-3 MM |
| OVERALL LENGTH | 5 1/4" (133 MM) |
| DIMENSIONS | 5.4 IN X 1.49 IN X 1.2 IN (13.7 CM X 3.78 CM X 3.04 CM) |
| WEIGHT | 0.21 LB (95.34 G) |
| UPC # | 811490011977 |
Additional Information
| Product Videos | |
|---|---|
ROUND CABLE STRIP & RING TOOLS |
HOW TO REPLACE A ROUND CABLE STRIP AND RING BLADE |
