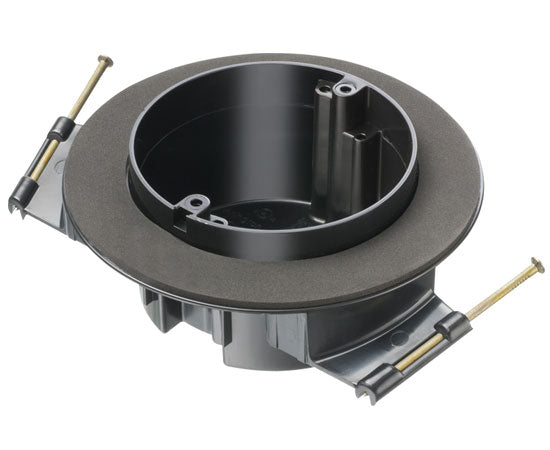

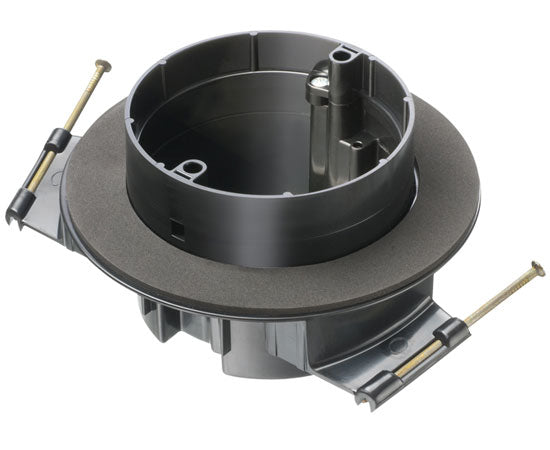

Nail-On Vapor Barrier Box - Ceiling Fan/Fixtures

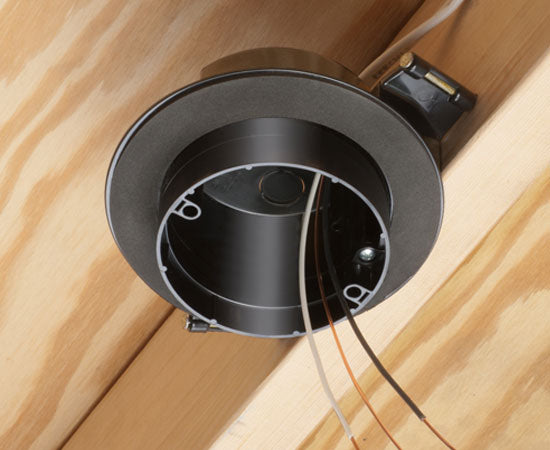

Our Nail-On Ceiling Fan Vapor Barrier Box features built-in flanges and gaskets that form a protective barrier against air infiltration, enabling installers to meet local codes where required. The benefit of the vapor barrier is noticeable in areas where temperate air, such as warm or cool air, passes through during ceiling fan installations. The Gasket helps seal the installation area to reduce air infiltration.
Features
Features
- Non-metallic, non-conductive

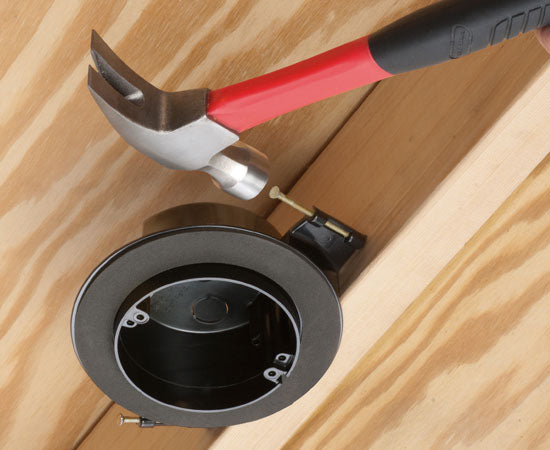

- Ships with mounting screws or captive nails
- Includes gasket material for sealing knockouts

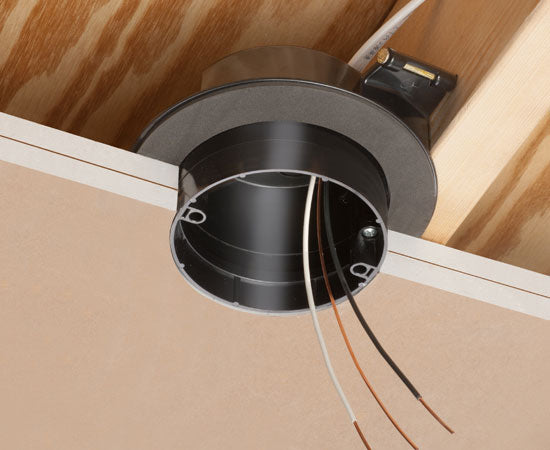

- For new construction with single or double drywall (two-hour fire rating)
- UL Listed in US and Canada
Specifications
| PRODUCT NUMBER | FN430F | FN440F |
| Diameter | ⌀ 6.250 | ⌀ 6.250 |
| Color | Black | Black |
| Material | Plastic | Plastic |
| UPC | 018997151001 | 018997151209 |
| Line Diagram | FN430F_Line Drawing | FN440F_Line Drawing |
What's In The Box
What's In The Box
- Qty 20 - NM95 Cable Connector
- Qty 40 - NM94 Cable Connectors
- Qty 20 - Mud Cover
- Qty 60 - Gaskets for knockouts
- Qty 20 - Flange Gasket
- Qty 20 - Box with flange
- Qty 40 - 16d Nails
