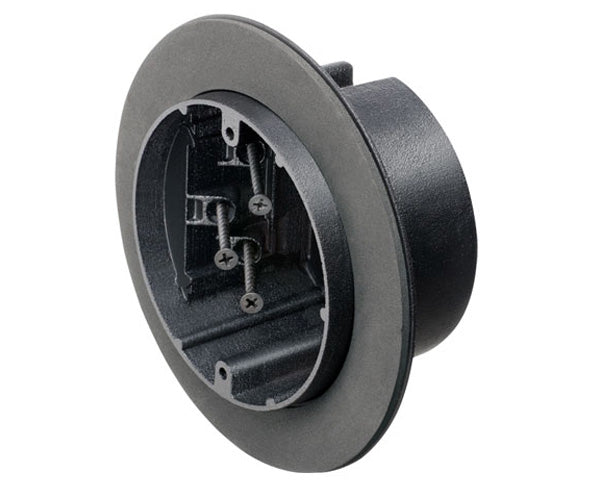

Screw-On Vapor Box

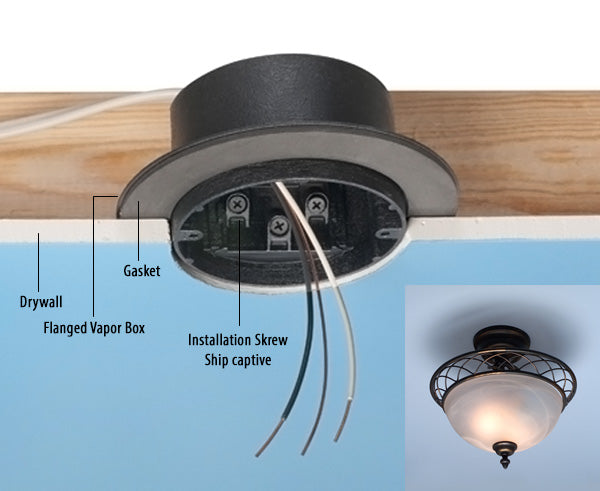

Our screw-on vapor box is a non-metallic vapor box that flanges with gaskets attached that form a protective barrier against air infiltration, enabling installers to meet local codes where required.
Fast, easy, secure installation in new construction, our vapor boxes mount to wood or steel joists with screws that ship captive.
Features
Features
- Non-metallic, non-conductive
- Available in round for fixtures, and devices in single-gang, two-gang, three-gang, and four-gang styles
- Ships with captive mounting screws (on facing page)
- Includes gasket material for sealing knockouts
- For new construction with single or double drywall (two-hour fire rating)
- UL Listed in US and Canada
Specifications
Specifications
| Product Number | F426F |
| Diameter | ⌀6.250 |
| Weight | 0.316 lbs |
| Color | Black |
| Material | Plastic |
| UPC | 018997069030 |
What's In The Box
What's In The Box
- Qty 1 - NM95 Cable Connectors
- Qty 2 - NM94 Cable Connectors
- Qty 3 - Gaskets for knockouts
- Qty 1 - Flange Gasket
- Qty 1 - Box with flange
- Qty 3 - #6 x 1-5/8" Long Screws
