Security Alarm Cable - Riser (CMR) - 18/8 AWG, CL3R, Stranded (7 Strand), Unshielded, 1000ft, Gray
by Primus Cable
$471.53
SKU: ASC-1890-188
Description

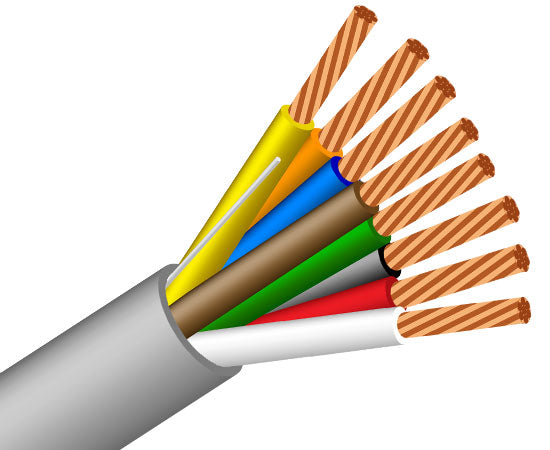

18/8 Riser Security Alarm Cable (7 Strand) CMR Rated Unshielded
This 18/8 Riser Security Alarm Cable has eight 18 gauge 19 stranded copper conductors. It is designed for security systems but can also be used for intercom systems, power limited controls and sound/audio systems. It is unshielded with a CL3R/FPLR rated gray colored jacket and is made in the USA. This 18/8 riser security cable is supplied in increments of 1,000 ft.
Features
Features
- 18 AWG 8 Conductors
- 7 Stranded Bare Copper Conductors
- PVC Insulation
- Unshielded
- PVC Jacket
- Sequential Footage Marking
- CMR FT4 Rated
- ETL Listed
- RoHS Compliant
- NEC Articles
- 22-16 AWG: FPLR/760, CMR/800, CL3R, CL2R/725
- 14-12 AWG: FPLR, CL3R
Residential Or Commercial Applications:
- Security Systems
- Intercom Systems
- Sound/Audio Systems
- Power-Limited Controls
Specifications
Specifications
Physical Construction |
|
|---|---|
| Inner Conductor | Stranded Bare Copper |
| Conductor Size | 18 AWG |
| Insulation | PVC |
| Nominal OD | 6.30mm |
| Outer Jacket Diameter | .38mm |
| Jacket | Low Smoke PVC |
| Jacket Color | Gray |
| Number of Strands | 7 |
| Inner Conductor Diameter | 1.2mm |
Electrical Characteristcs |
|
|---|---|
| Temperature | 75°C |
| Voltage Rating | 300V |
| Center Resistance | 21.20 (Ω/km) |
Additional Information |
|
|---|---|
| Standards | UL | ETL | RoHS | CMR | FT6 |
| Applications | Security Systems | Intercom Systems | Sound/Audio Systems | Power-Limited Controls |
| Jacket Printing | 18 AWG 8C UNSHIELDED TYPE CL3R/FPLR c(ETL)us TYPE CMR 3054355 |
| Important Notes | The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only. |
Quick Reference Guide
Quick Reference Guide
PART NO. |
PRODUCT DESCRIPTION |
|---|---|
*(ASC-) Riser CMR Unshielded Alarm and Security Cable |
|
| ASC-1928/222/71 | 22 AWG / 2 Conductor (7 Strands) Unshielded |
| ASC-4737/224 | 22 AWG / 4 Conductor (7 Strands) Unshielded |
| ASC-1931/226 | 22 AWG / 6 Conductor (7 Strands) Unshielded |
| ASC-1881/182 | 18 AWG / 2 Conductor (7 Strands) Unshielded |
| ASC-2928/184 | 18 AWG / 4 Conductor (7 Strands) Unshielded |
| ASC-1889/186 | 18 AWG / 6 Conductor (7 Strands) Unshielded |
| ASC-1890/188 | 18 AWG / 8 Conductor (7 Strands) Unshielded |
| ASC-1893/162 | 16 AWG / 2 Conductor (19 Strands) Unshielded |
| ASC-1895/164 | 16 AWG / 4 Conductor (19 Strands) Unshielded |
| ASC-1896/142 | 14 AWG / 2 Conductor (19 Strands) Unshielded |
*(ASC2-) Riser CMR Shielded Alarm and Security Cable |
|
| ASC2-2903/222 | 22 AWG / 2 Conductor (7 Strands) Shielded |
| ASC2-326/223 | 22 AWG / 3 Conductor (7 Strands) Shielded |
| ASC2-3236/224 | 22 AWG / 4 Conductor (7 Strands) Shielded |
| ASC2-2904/226 | 22 AWG / 6 Conductor (7 Strands) Shielded |
| ASC2-3237/228 | 22 AWG / 8 Conductor (7 Strands) Shielded |
| ASC2-5522/202 | 20 AWG / 2 Conductor (7 Strands) Shielded |
| ASC2-2895/182 | 18 AWG / 2 Conductor (7 Strands) Shielded |
| ASC2-327/183 | 18 AWG / 3 Conductor (7 Strands) Shielded |
| ASC2-328/184 | 18 AWG / 4 Conductor (7 Strands) Shielded |
| ASC2-329/186 | 18 AWG / 6 Conductor (7 Strands) Shielded |
| ASC2-330/188 | 18 AWG / 8 Conductor (7 Strands) Shielded |
| ASC2-331/162 | 16 AWG / 2 Conductor (19 Strands) Shielded |
| ASC2-332/163 | 16 AWG / 3 Conductor (19 Strands) Shielded |
| ASC2-3036/164 | 16 AWG / 4 Conductor (19 Strands) Shielded |
*(ASC1-) Plenum CMP Unshielded Alarm and Security Cable |
|
| ASC1-1004/222 | 22 AWG / 2 Conductor (7 Strands) Unshielded |
| ASC1-2664/224 | 22 AWG / 4 Conductor (7 Strands) Unshielded |
| ASC1-1006/226 | 22 AWG / 6 Conductor (7 Strands) Unshielded |
| ASC1-2772/182 | 18 AWG / 2 Conductor (7 Strands) Unshielded |
| ASC1-1841/1810 | 18 AWG / 10 Conductor (7 Strands) Unshielded |
| ASC1-5013/1812 | 18 AWG / 12 Conductor (7 Strands) Unshielded |
| ASC1-2905/162 | 16 AWG / 2 Conductor (19 Strands) Unshielded |
| ASC1-1843/164 | 16 AWG / 4 Conductor (19 Strands) Unshielded |
*(ASC3-) Plenum CMP Shielded Alarm and Security Cable |
|
| ASC3-458/222 | 22 AWG / 2 Conductor (7 Strands) Shielded |
| ASC3-460/224 | 22 AWG / 4 Conductor (7 Strands) Shielded |
| ASC3-461/226 | 22 AWG / 6 Conductor (7 Strands) Shielded |
| ASC3-474/182 | 18 AWG / 2 Conductor (7 Strands) Shielded |
| ASC3-477/186 | 18 AWG / 6 Conductor (7 Strands) Shielded |
| ASC3-478/188 | 18 AWG / 8 Conductor (7 Strands) Shielded |
What's in the Box
What's in the Box
- Security Alarm Cable - Riser (CMR) - 18/8 AWG, CL3R, Stranded (7 Strand), Unshielded, Gray
- 1000 Ft
