Security Alarm Cable - Plenum (CMP) - 22/2 AWG, CL3P, Stranded (7 Strand), Unshielded, 1000 ft, White

$84.70
SKU: ASC1-1004/222
Various lead times may apply to this product. Please contact us for more details.
Made in USA RoHS Compliant ETL Verified logo

Description

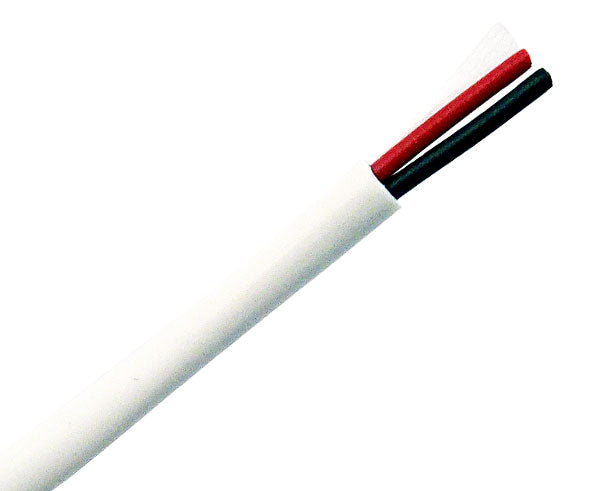

Plenum Security Alarm Cable 22/2 (7 Strand) CMP Rated Unshielded 1000'

The 22/2 Plenum Security Alarm Cable comprises two 22-gauge, stranded copper conductors, ideal for security systems, intercom systems, power-limited controls, and sound/audio systems. It is constructed from 7 strands of bare copper cable, encased in a white, plenum CMP-rated jacket. Made in the USA, this 22/2 plenum security cable is available in increments of 1,000 feet.

Features

Features

  • 22 AWG 2 conductors
  • 7 stranded bare copper conductors
  • Low smoke PVC insulation
  • Unshielded
  • Low smoke white PVC jacket
  • Sequential footage marking
  • CL3P rated jacket
  • ETL listed
  • RoHS compliant
  • NEC articles
    • 22-16 AWG: FPLP/760, CMP/800, CL3P, CL2P/725
    • 14-12 AWG: FPLP, CL3P

Residential or commercial applications

  • Security systems
  • Intercom systems
  • Sound/audio systems
  • Power-limited controls

Specifications

Specifications

Physical Construction

Electrical Characteristics

Inner Conductor Stranded Bare Copper Temperature 75°C
Conductor Size 22 AWG Voltage Rating 300V
Insulation Low Smoke PVC Center Resistance 21.20 (Ω/km)
Nominal OD 3.15mm
Outer Jacket Diameter .38mm
Jacket Low Smoke PVC
Jacket Color White
Number of Strands 7
Inner Conductor Diameter 1.2mm




Additional Information

Standards UL | ETL | RoHS | CMP | CL3P
Applications security systems, intercom systems, sound audio systems, power-limited controls
Important Notes The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only.

What's in the Box

What's in the Box

  • Security Alarm Cable - Plenum (CMP) - 22/2 AWG, CL3P, Stranded (7 Strand), Unshielded, White
  • 1000 Ft
