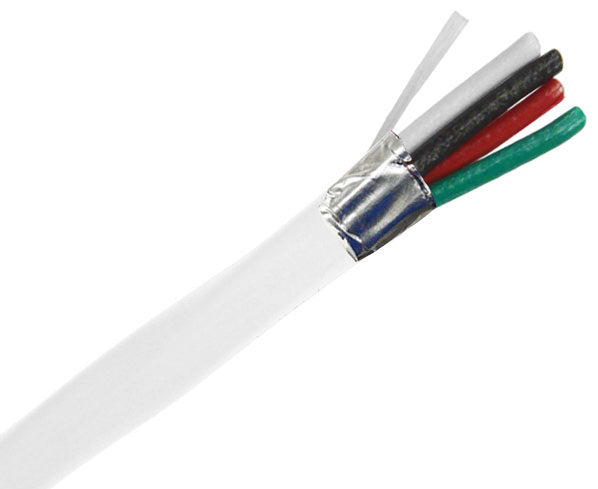

Security Alarm Cable - Plenum (CMP) - 14/4 AWG, CL3P, Stranded (19 Strand), Shielded, 1000ft, White

SKU: ASC3-484/144
Various lead times may apply to this product. Please contact us for more details.
Made in USA RoHS Compliant ETL Verified logo


Alarm Cable for Residential & Commercial Security Systems


Introducing our Bulk Security Alarm Cables, commonly referred to as alarm wire, meticulously crafted to meet the installation specifications of alarm systems. This plenum alarm cable is engineered with four 14 gauge bare copper conductors, each comprising 19 strands. Utilizing aluminum mylar shielding, it safeguards against external electromagnetic interference. Supplied with a low smoke CMP jacket for enhanced fire safety. Proudly manufactured in the USA, this security cable is tailored for installation with security systems, intercom systems, power-limited controls, and sound/audio systems.

Product Quality

We stock a wide variety of high quality alarm cables to meet all your needs. Our bulk security cables come with both riser and plenum rated jacket. Be sure to check the building code requirements before purchasing alarm cable. The alarm cable also include print legends to allow for quick identification of each cable's application. Time is precious and the convenience of the cables at installation makes our security alarm cables the choice for multiple applications.

Where to use Plenum Security Alarm Cable

A broad range of applications exist for bulk plenum security alarm cabling. It is widely used with security systems, intercom systems, sound/audio systems, and power-limited controls in commercial settings such as schools, universities, hospitals, airports, government buildings, train and transportation centers, stadiums, and arenas. Since this security cable has multiple conductors under one jacket, the preparation, set up, and termination time is shorter.

Why Plenum?

A plenum space is the open area above the drop ceiling or below the floor that is used for air circulation in buildings. This could be a problem if there is ever a fire. Using non-plenum cables in a plenum space can spread fire and toxic smoke throughout a building. Plenum cable uses a flame-retardant jacket that is made of special plastics to prevent the release of harmful smoke. Plenum cable is mostly used in commercial applications such as schools and hospital buildings that house a large population of people. It also is required in most multi-floor business buildings with large plenum space areas.



  • 14 AWG 4 Conductors
  • Plenum Rated
  • 19 Stranded Bare Copper Conductors
  • Low Smoke PVC Insulation
  • Aluminum Mylar Shielded
  • Drain Wire
  • Low Smoke White PVC Jacket
  • Sequential Footage Marking
  • CMP FT6 Rated
  • ETL Listed
  • RoHS Compliant
  • NEC Articles:
    • 22-16 AWG: FPLP/760, CMP/800, CL3P, CL2P/725
    • 14-12 AWG: FPLP, CL3P

Conductor Jacket Color

  • Black
  • Red
  • White
  • Green

Residential or Commercial Applications

  • Security Systems
  • Intercom Systems
  • Sound/Audio Systems
  • Power-Limited Controls



Physical Construction

Inner Conductor Stranded Bare Copper
Conductor Size 14 AWG
Insulation Low Smoke PVC
Nominal OD 6.71mm
Outer Jacket Diameter .457mm
Jacket Low Smoke PVC
Jacket Color White
Number of Strands 19
ConductorInsulation .012"

Electrical Characteristics

Temperature 75°C
Voltage Rating 300V

Additional Information

Standards ETL | RoHS | CMP
Applications Security Systems | Intercom Systems Sound | Audio Systems | Power-Limited Controls
Jacket Printing 14 AWG 4C SHIELDED TYPE CL3P/FPLP c(ETL)us TYPE CMP 3054355
Important Notes The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only.

What's in the Box

What's in the Box

  • Security Alarm Cable - Plenum (CMP) - 14/4 AWG, CL3P, Stranded (19 Strand), Shielded, White
  • 1000 Ft
