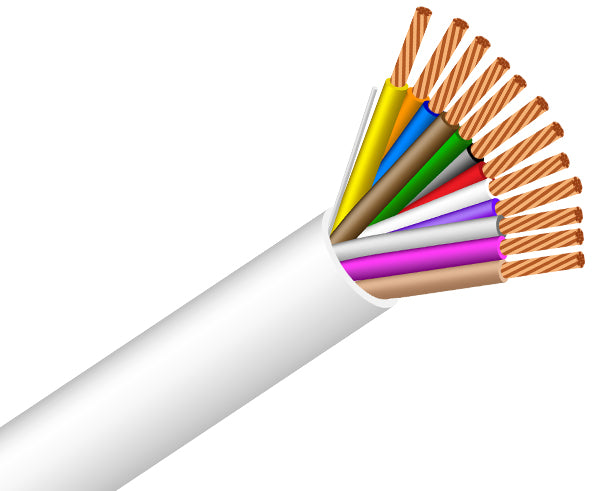

Security Alarm Cable - Plenum (CMP) - 18/12 AWG, CL3P, Stranded (7 Strand), Unshielded, 1000ft, White

SKU: ASC1-5013/1812
Various lead times may apply to this product. Please contact us for more details.
RoHS Compliant ETL Verified logo


18/12 Alarm Cable for Residential & Commercial Security Systems

Crafted for alarm systems, our Bulk Security Alarm Cables, also called alarm wire, meet installation requirements. This plenum alarm cable boasts twelve 18-gauge bare copper conductors with 7 strands each. Supplied with a low smoke CMP jacket for fire safety, this USA-made security cable is ideal for installation in security systems, intercom systems, power-limited controls, and sound/audio systems.

Product Quality

We carry a diverse range of top-notch alarm cables to fulfill your requirements. Our bulk security cables are available with both riser and plenum rated jackets. Prior to purchasing alarm cable, verify compliance with building code requirements. The alarm cables also feature print legends, enabling swift identification of each cable's application. With time being precious, the installation convenience of our security alarm cables makes them the preferred choice for various applications.


A broad range of applications exist for bulk plenum security alarm cabling. It is widely used with security systems, intercom systems, sound/audio systems, and power-limited controls in commercial settings such as schools, universities, hospitals, airports, government buildings, train and transportation centers, stadiums, and arenas. Since this security cable has multiple conductors under one jacket, the preparation, set up, and termination time is shorter.

Why Plenum?

A plenum space is the open area above the drop ceiling or below the floor that is used for air circulation in buildings. This could be a problem if there is ever a fire. Using non-plenum cables in a plenum space can spread fire and toxic smoke throughout a building. Plenum cable uses a flame-retardant jacket that is made of special plastics to prevent the release of harmful smoke. Plenum cable is mostly used in commercial applications such as schools and hospital buildings that house a large population of people. It also is required in most multi-floor business buildings with large plenum space areas.



  • 18 AWG 12 Conductors
  • Plenum Rated
  • 7 Stranded Bare Copper Conductors
  • Low Smoke PVC Insulation
  • Unshielded
  • Low Smoke White PVC Jacket
  • Sequential Footage Marking
  • CL3P/FPLP Rated
  • ETL Listed
  • RoHS Compliant
  • NEC Articles
    • 22-16 AWG: FPLP/760, CMP/800, CL3P, CL2P/725
    • 14-12 AWG: FPLP, CL3P

Conductor Jacket Color

  • Black
  • Red
  • White
  • Green
  • Brown
  • Blue
  • Orange
  • Yellow
  • Purple
  • Gray
  • Pink
  • Tan

Residential or Commercial Applications

  • Security Systems
  • Intercom Systems
  • Sound/Audio Systems
  • Power-Limited Controls



Physical Construction

Inner Conductor Stranded Bare Copper
Conductor Size 18 AWG
Insulation Low Smoke PVC
Nominal OD 7.52mm
Outer Jacket Diameter .38mm
Jacket Low Smoke PVC
Jacket Color White
Number of Strands 7
Conductor Insulation 1.2mm PVC

Electrical Characteristics

Temperature 75°C
Voltage Rating 300V

Additional Information

Standards ETL | RoHS | CMP
Applications Security Systems | Intercom Systems Sound | Audio Systems | Power-Limited Controls
Jacket Printing 18 AWG 12C UNSHIELDED TYPE CL3P/FPLP c(ETL)us TYPE CMP 3054355
Important Notes The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only.

What's in the Box

What's in the Box

  • Security Alarm Cable - Plenum (CMP) - 18/12 AWG, CL3P, Stranded (7 Strand), Unshielded, White
  • 1000 Ft
