1000ft Gray Shielded Security Alarm Cable: Riser (CMR) - 14/2, CL3R, Stranded (19 Strand)

$396.88
SKU: ASC2-333/142
Made in USA RoHS Compliant ETL Verified logo

Description

14/2 Riser Security Alarm Cable (19 Strand) CMR Rated Shielded 1,000'

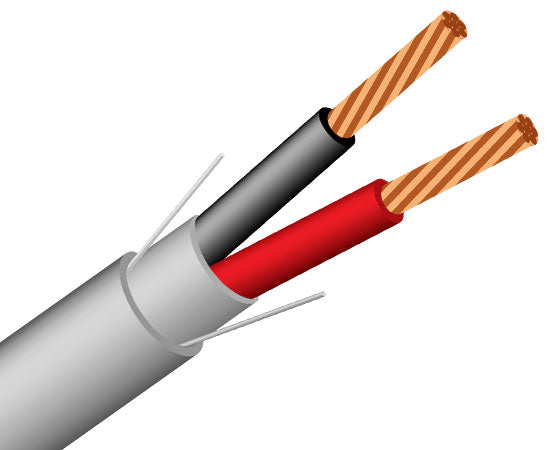

Riser-rated Shielded Security Alarm Cable, 14/2 (19 Strand), CMR Rated, 1,000'. Features stranded bare copper conductors with PVC insulation, twisted configuration, aluminum mylar shielding with a drain wire, and a gray PVC jacket equipped with a rip cord.

Features

Features

  • 14 AWG 2 conductors
  • 19 strand bare copper conductors
  • PVC insulation
  • AL foil shielded
  • PVC jacket
  • Sequential footage marking
  • CL3R rated jacket
  • ETL listed
  • RoHS compliant
  • NEC articles
    • 14-12 AWG: FPLR, CL3R

Residential or commercial applications

  • Security systems
  • Intercom systems
  • Sound/audio systems
  • Power-limited controls

Specifications

Specifications

Physical Construction

Inner Conductor Stranded Bare Copper
Conductor Size 14 AWG
Insulation PVC
Nominal OD 5.74mm
Outer Jacket Thickness .38mm
Jacket Low Smoke PVC
Jacket Color Gray
Strand 19

Electrical Characteristics

Temperature -25 °C to 75°C
Voltage Rating 300V
Center Resistance 21.20 (Ω/km)




Additional Information

Additional Information

Standards ETL | RoHS | CMR
Applications Security Systems | Intercom Systems Sound | Audio Systems | Power-Limited Controls
Jacket Printing 14 AWG 2C (ETL) CL3R FPLR XXXX FT
Important Notes The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only.


What's in the Box

What's in the Box

  • Security Alarm Cable - Riser (CMR) - 14/2 AWG, CL3R, Stranded (19 Strand), Shielded, Gray
  • 1000 Ft
