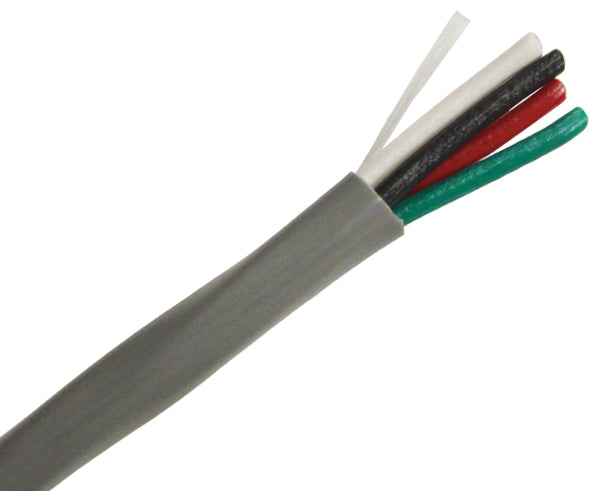

Riser Security Alarm Cable, 16/4 AWG, CL3R, Stranded (19 Strand), Unshielded, 1000ft, Gray

Riser Security Alarm Cable, 16/4 AWG, CL3R, Stranded (19 Strand), Unshielded, 1000ft, Gray

BY Primus Cable

Regular price $476.66 USD
Regular price Sale price $476.66 USD
Sale Sold out

SKU: SKU: ASC-1895/164

 Various lead times may apply to this product. Please contact us for more details.

View full details

RoHS Compliant ETL Verified logo

16/4 CMR Unshielded Residential & Commercial Security Systems Alarm Cable

Description

Our bulk security alarm cables, commonly known as alarm wires, are specifically crafted to satisfy the installation requirements of alarm systems. This riser alarm cable comprises four 16-gauge bare copper conductors, each with 19 strands. Made in the USA, this security cable is intended for applications in security systems, intercom systems, power-limited controls, and sound/audio systems.

Product Quality

We stock a wide variety of high-quality alarm cables to meet all your needs. Our bulk security cables come with both a riser and plenum-rated jacket. Be sure to check the building code requirements before purchasing alarm cables. The alarm cable also includes print legends to allow for quick identification of each cable's application. Time is precious and the convenience of the cables at installation makes our security alarm cables the choice for multiple applications.

Applications

A broad range of applications exist for bulk riser security alarm cabling. It is widely used with security systems, intercom systems, sound/audio systems, and power-limited controls in commercial settings such as schools, universities, hospitals, airports, government buildings, train and transportation centers, stadiums, and arenas. This security cable is an excellent choice for home alarm systems as well. Since this alarm cable has multiple conductors under one jacket, the preparation, setup, and termination time is shorter. The riser alarm cable is rated to be utilized in floor-to-floor applications in multi-story buildings.

Features

Features

  • 16 AWG 4 Conductors
  • CL3R, Riser Rated
  • 19 Stranded Bare Copper Conductors
  • PVC Insulation
  • Unshielded
  • Gray PVC Jacket
  • Sequential Footage Marking
  • CL3R/FPLR Rated
  • ETL Listed
  • RoHS Compliant
  • NEC Articles
    • 22-16 AWG: FPLR/760, CMR/800, CL3R, CL2R/725
    • 14-12 AWG: FPLR, CL3R
  • Conductor Jacket Color
  1. Black
  2. Red
  3. White
  4. Green

Residential or Commercial Applications:

  • Security Systems
  • Intercom Systems
  • Sound/Audio Systems
  • Power-Limited Controls

Specifications

Specifications

Physical Construction

Inner Conductor Stranded Bare Copper
Conductor Size 16 AWG
Insulation PVC
Nominal OD 5.49mm
Outer Jacket Diameter .38mm
Jacket PVC
Jacket Color Gray
Number of Strands 19
Conductor Insulation 1.2mm PVC

Electrical Characteristics

Temperature 75°C
Voltage Rating 300V


What's in the Box

What's in the Box

  • Security Alarm Cable - Riser (CMR) - 16/4 AWG, CL3R, Stranded (19 Strand), Unshielded, Gray
  • 1000 Ft
