Security Alarm Cable - Riser (CMR) - 18/3 AWG, CL3R, Stranded (7 Strand), Shielded, 1000ft, Gray

$184.27
SKU: ASC2-327/183
ROHS Compliant logo ETL Verified logo Made in USA

Description

18/3 CMR Shielded Alarm Cable for Residential & Commercial Security Systems

Applications

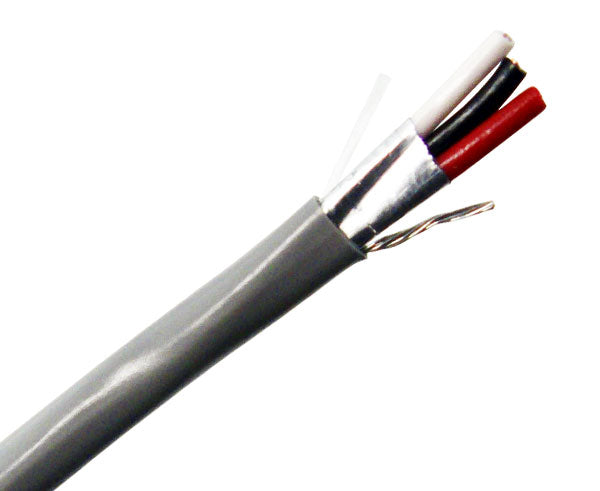

Our Bulk Security Alarm Cables, also known as alarm wire, has been designed to meet the installation requirements for alarm systems. This riser alarm cable features three 18 gauge bare copper 7 strand conductors. It uses an aluminum mylar shielding to protect from external electromagnetic interference. This USA made security cable is constructed to be installed with security systems, intercom systems, power-limited controls and sound/audio systems.

Product Quality

Our stock a wide variety of high quality alarm cables to meet all your needs. Our bulk security cables come with both riser and plenum rated jacket. Be sure to check the building code requirements before purchasing alarm cable. The alarm cable also include print legends to allow for quick identification of each cable's application. Time is precious and the convenience of the cables at installation makes our security alarm cables the choice for multiple applications.

Where to use Riser Security Alarm Cable

A broad range of applications exist for bulk riser security alarm cabling. It is widely used with security systems, intercom systems, sound/audio systems, and power-limited controls in commercial settings such as schools, universities, hospitals, airports, government buildings, train and transportation centers, stadiums, and arenas. This security cable is an excellent choice for home alarm systems as well. Since this alarm cable has multiple conductors under one jacket, the preparation, set up, and termination time is shorter. The riser alarm cable is rated to be utilized in floor to floor applications in multi-story buildings.

Features

Features

  • 18 AWG 3 Conductors
  • Riser Rated
  • 7 Stranded Bare Copper Conductors
  • PVC Insulation
  • Shielded
  • Gray PVC Jacket
  • Sequential Footage Marking
  • CL3R/FPLR Rated
  • ETL Listed
  • RoHS Compliant
  • NEC Articles
    • 22-16 AWG: FPLR/760, CMR/800, CL3R, CL2R/725
    • 14-12 AWG: FPLR, CL3R
  • Conductor Jacket Color
  1. Black
  2. Red
  3. White

Residential or Commercial Applications

  • Security Systems
  • Intercom Systems
  • Sound/Audio Systems
  • Power-Limited Controls

Specifications

Specifications


Physical Construction

Inner Conductor Stranded Bare Copper
Conductor Size 18 AWG
Insulation PVC
Nominal OD 4.45mm
Outer Jacket Diameter .38mm
Jacket PVC
Jacket Color Gray
Number of Strands 7
Conductor Insulation 1.2mm PVC

Electrical Characteristcs

Temperature 75°C
Voltage Rating 300V

Additional Information

Standards UL | ETL | RoHS | CMR
Applications Security Systems | Intercom Systems Sound | Audio Systems | Power-Limited Controls
Jacket Printing 18 AWG 3C SHIELDED TYPE CL3R/FPLR c(ETL)us TYPE CMR 3054355
Important Notes The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only.

Quick Reference Guide

Quick Reference Guide

PART NO.

PRODUCT DESCRIPTION

*(ASC-) Riser CMR Unshielded Alarm and Security Cable

ASC-1928/222/71 22 AWG / 2 Conductor (7 Strands) Unshielded
ASC-4737/224 22 AWG / 4 Conductor (7 Strands) Unshielded
ASC-1931/226 22 AWG / 6 Conductor (7 Strands) Unshielded
ASC-1881/182 18 AWG / 2 Conductor (7 Strands) Unshielded
ASC-2928/184 18 AWG / 4 Conductor (7 Strands) Unshielded
ASC-1889/186 18 AWG / 6 Conductor (7 Strands) Unshielded
ASC-1890/188 18 AWG / 8 Conductor (7 Strands) Unshielded
ASC-1893/162 16 AWG / 2 Conductor (19 Strands) Unshielded
ASC-1895/164 16 AWG / 4 Conductor (19 Strands) Unshielded
ASC-1896/142 14 AWG / 2 Conductor (19 Strands) Unshielded

*(ASC2-) Riser CMR Shielded Alarm and Security Cable

ASC2-2903/222 22 AWG / 2 Conductor (7 Strands) Shielded
ASC2-326/223 22 AWG / 3 Conductor (7 Strands) Shielded
ASC2-3236/224 22 AWG / 4 Conductor (7 Strands) Shielded
ASC2-2904/226 22 AWG / 6 Conductor (7 Strands) Shielded
ASC2-3237/228 22 AWG / 8 Conductor (7 Strands) Shielded
ASC2-5522/202 20 AWG / 2 Conductor (7 Strands) Shielded
ASC2-2895/182 18 AWG / 2 Conductor (7 Strands) Shielded
ASC2-327/183 18 AWG / 3 Conductor (7 Strands) Shielded
ASC2-328/184 18 AWG / 4 Conductor (7 Strands) Shielded
ASC2-329/186 18 AWG / 6 Conductor (7 Strands) Shielded
ASC2-330/188 18 AWG / 8 Conductor (7 Strands) Shielded
ASC2-331/162 16 AWG / 2 Conductor (19 Strands) Shielded
ASC2-332/163 16 AWG / 3 Conductor (19 Strands) Shielded
ASC2-3036/164 16 AWG / 4 Conductor (19 Strands) Shielded

*(ASC1-) Plenum CMP Unshielded Alarm and Security Cable

ASC1-1004/222 22 AWG / 2 Conductor (7 Strands) Unshielded
ASC1-2664/224 22 AWG / 4 Conductor (7 Strands) Unshielded
ASC1-1006/226 22 AWG / 6 Conductor (7 Strands) Unshielded
ASC1-2772/182 18 AWG / 2 Conductor (7 Strands) Unshielded
ASC1-1841/1810 18 AWG / 10 Conductor (7 Strands) Unshielded
ASC1-5013/1812 18 AWG / 12 Conductor (7 Strands) Unshielded
ASC1-2905/162 16 AWG / 2 Conductor (19 Strands) Unshielded
ASC1-1843/164 16 AWG / 4 Conductor (19 Strands) Unshielded

*(ASC3-) Plenum CMP Shielded Alarm and Security Cable

ASC3-458/222 22 AWG / 2 Conductor (7 Strands) Shielded
ASC3-460/224 22 AWG / 4 Conductor (7 Strands) Shielded
ASC3-461/226 22 AWG / 6 Conductor (7 Strands) Shielded
ASC3-474/182 18 AWG / 2 Conductor (7 Strands) Shielded
ASC3-477/186 18 AWG / 6 Conductor (7 Strands) Shielded
ASC3-478/188 18 AWG / 8 Conductor (7 Strands) Shielded

What's in the Box

What's in the Box

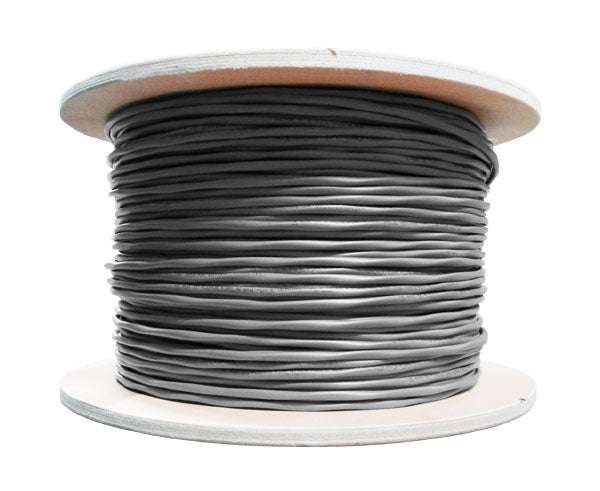

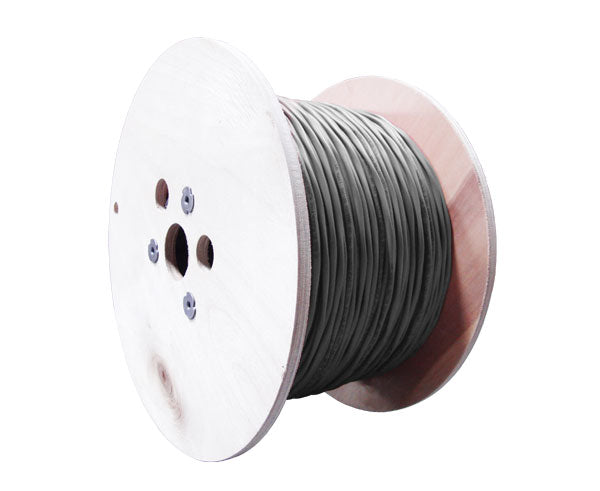

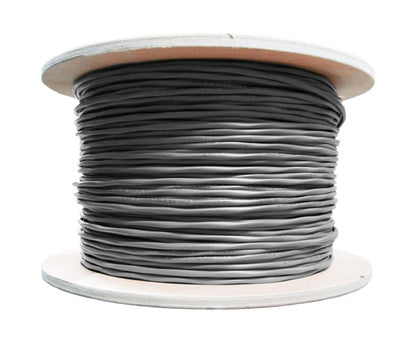

  • Security Alarm Cable - Riser (CMR) - 18/3 AWG, CL3R, Stranded (7 Strand), Shielded, Gray
  • 1000 Ft
