Description

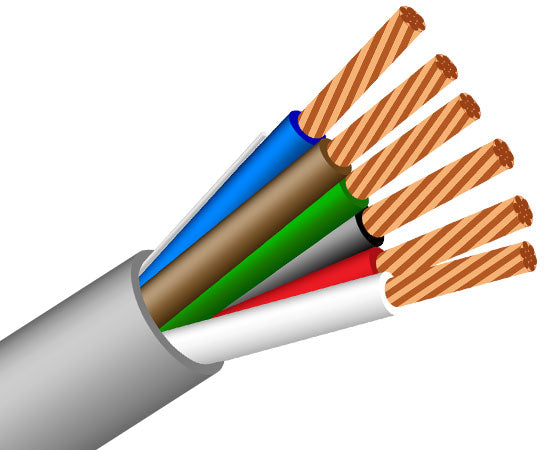

Security Alarm Cable 18/6 (7 Strand) CMR FT4 Rated Unshielded
The 18 AWG 6 Conductor Security Alarm Cable, tailored for Security Systems, is versatile for intercom systems, power-limited controls, and sound/audio systems. Made from 7-strand bare copper cable, it is unshielded and features an FT4 Rated Gray jacket. Proudly manufactured in the USA, this 18/6 Security Cable is available in increments of 1000 ft.
Features
Features
Security Alarm Cable Features:
- 18 AWG 6 Conductors
- 7 Stranded Bare Copper Conductors
- PVC Insulation
- Unshielded
- PVC Jacket
- Sequential Footage Marking
- CMR FT4 Rated
- ETL Listed
- RoHS Compliant
- NEC Articles
- 22-16 AWG: FPLR/760, CMR/800, CL3R, CL2R/725
- 14-12 AWG: FPLR, CL3R
Residential Or Commercial Applications:
- Security Systems
- Intercom Systems
- Sound/Audio Systems
- Power-Limited Controls
Specifications
Specifications
Physical Construction |
|
|---|---|
| Inner Conductor | Stranded Bare Copper |
| Conductor Size | 18 AWG |
| Insulation | PVC |
| Nominal OD | 5.74mm |
| Outer Jacket Diameter | .38mm |
| Jacket | Low Smoke PVC |
| Jacket Color | Gray |
| Number of Strands | 7 |
| Inner Conductor Diameter | 1.2mm |
Electrical Characteristics |
|
|---|---|
| Temperature | 75°C |
| Voltage Rating | 300V |
| Center Resistance | 21.20 (Ω/km) |
Additional Information |
|
|---|---|
| Standards | ETL | RoHS | CMP |
| Applications | Security Systems | Intercom Systems Sound | Audio Systems | Power-Limited Controls |
| Jacket Printing | 18 AWG 6C (ETL) 725/CL3R 800/CMR (VID:###) XXXX FT |
| Important Notes | The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only. |
What's in the Box
What's in the Box
- Security Alarm Cable - Riser (CMR) - 18/6 AWG, CL3R, Stranded (7 Strand), Unshielded, Gray
- 1000 Ft
