Description

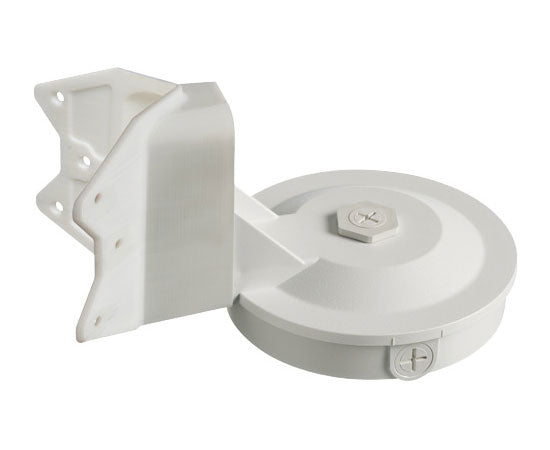

Security Camera Mounting Box (Corner-Mount)

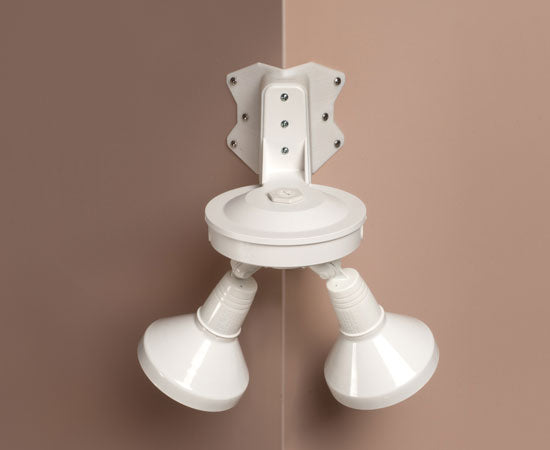

Ideal for securing security cameras and electrical accessories, the 8161CB is designed for mounting security cameras, detectors, or fixtures face down on an outside corner, with a weight capacity of up to 50 lbs.
- For power or low voltage cameras (etc) with mounting holes wider than 4.5" apart
- Integral corner-mount bracket
- Non-metallic, UV rated for long outdoor life
- For interior or exterior use in dry, damp or wet locations
Features
Features
- Corner mount holds up to 50 lbs
- For power or low voltage cameras (etc) with mounting holes wider than 4.5" apart
- Integral corner-mount bracket
- Non-metallic, UV rated for long outdoor life
- For interior or exterior use in dry, damp or wet locations
Specifications
Specifications
| PHYSICAL INFORMATION | |
| Weight | 1.318 lbs/each |
| Height | 10.851" |
| Width | 7.046" |
| Color | White |
| Material(s) | UV-Rated Plastic |
| TECHNICAL INFORMATION | |
| Application | Mount security cameras, fixtures, detectors, and more indoors or outdoors. |
| Load Rating | Corner Mount: 50lbs |
| Style | Corner Mount |
| Trade Size | Corner Mount |
Additional Information
Additional Information
What’s In The Box
What’s In The Box
- (1) Box
- (1) 3/4" to 1/2" NPT Reducing Bushing
- (2) 1/2" Plugs
