Description

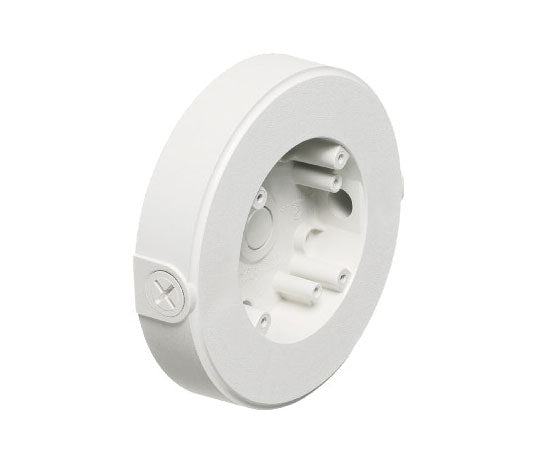

Security Camera Mounting Box with Threaded Openings

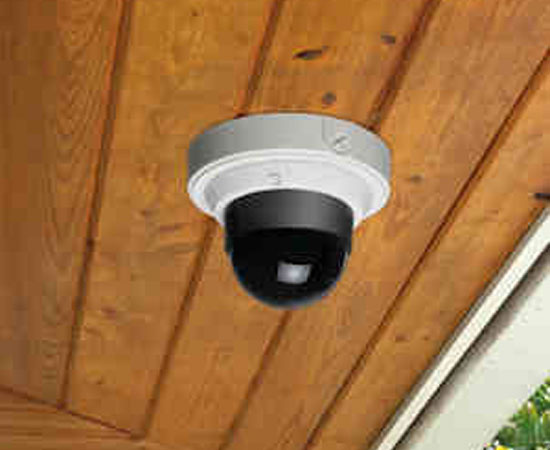

Versatile Security Camera Mounting Box: Ideal for Exterior or Interior Wall or Ceiling Installation. This box provides flexible solutions for mounting security cameras, detectors, and other items outdoors. Easily install power or low-voltage security cameras (with mounting holes spaced wider than 4.5" apart) directly on the box and mount it to a wall or ceiling. The box features positionable threaded openings, allowing you to install the camera where needed and add additional cameras later.
- Mounts security cameras, electrical accessories & fixtures up to 50 lbs. on ceilings or 10 lbs. on walls
- Use indoors or outdoors for dry, damp or wet locations
- UV rated for long outdoor life
- For cameras with a base diameter smaller than 4.5" use our SC5 mounting kit
Features
Features
- Mounts security cameras, electrical accessories & fixtures up to 50 lbs. on ceilings or 10 lbs. on walls
- Use indoors or outdoors for dry, damp or wet locations
- UV rated for long outdoor life
- For cameras with a base diameter smaller than 4.5" use our SC5 mounting kit
Specifications
Specifications
| PHYSICAL INFORMATION | |
| Weight | 0.850 lbs/each |
| Height | 6.720" |
| Width | 6.720" |
| Color | White |
| Material(s) | UV-Rated Plastic |
| TECHNICAL INFORMATION | |
| Application | Mount security cameras, fixtures, detectors, and more indoors or outdoors. |
| Load Rating | Wall Mount: 10lbs Ceiling Mount: 50lbs |
| Style | Wall or Ceiling Mount |
| Trade Size | Flat Surface Mount |
Additional Information
Additional Information
What’s In The Box
What’s In The Box
- (1) Box
- (1) 3/4" to 1/2" NPT Reducing Bushing
- (2) 1/2" Plugs
- (2) #12 x 2" Long Screws
