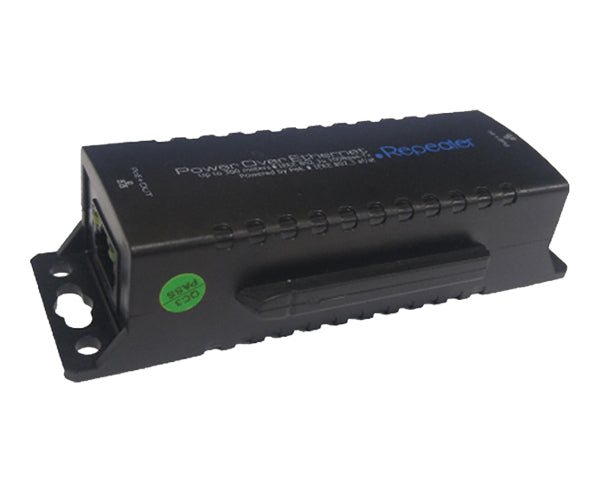

IP PoE Repeater for Security Cameras

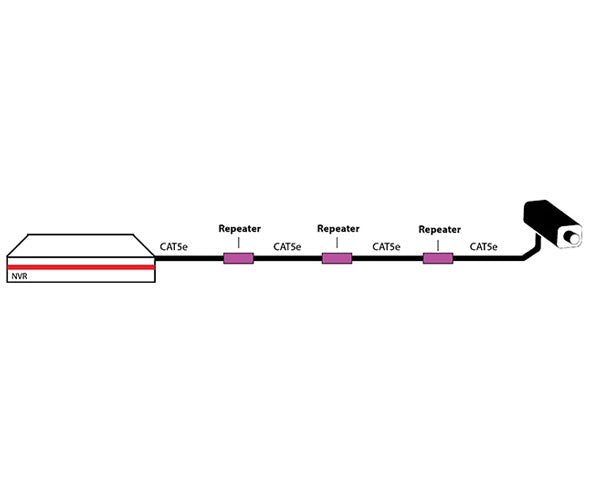

When you need to extend your ethernet service beyond 300ft, this is the perfect solution. Our PoE Repeater allows an ethernet connection and power signal up to 300ft and can cascade up to 1,300 ft. This device offers real-time and zero time delay with no-store & forward technology. It has a built-in splicing slot, a magnet hanger, and a unique, integrated design for wall mounting.
Features
Features
- Real-time and zero time delay
- PoE (Power over Ethernet)
- IP Accessory
- PoE IN: 100Mbps PoE In port
- Uses Cat5E Cable
- Supports IEEE802.3af
- PoE OUT: 100Mbps PoE Output port
- 1300 foot distance (300 ft per unit)
Specifications
Specifications
| Power | |
|---|---|
| Power Supply | PoE |
| Consumption | < 3 Watt |
| Network Port | |
|---|---|
| Port | PoE IN: 100Mbps PoE In port |
| Transmission Distance | PoE OUT: 100Mbps PoE Output port |
| Media | CAT5E |
| PoE Standard | Supports IEEE802.3af |
| PoE Power Supply | Media-span and End-span |
| Ethernet Exchange | |
|---|---|
| Standard | IEEE802.3u 100BASE-TX |
| Delay | < 20us |
| LED Indicator | PoE IN port and PoE OUT port: RJ45 Yellow LED: PoE Status Green LED: Ethernet status |
| Protection | |
|---|---|
| ESD | Lever lll 1a Contact Discharge Lever lll 1b Air Discharge |
| Surge Protection | Lever lll Per: IEC61000-4-5 |
| Environment | |
|---|---|
| Working Temperature | - 10°C - 55°C |
| Storage Temperature | -40°C - 85°C |
| Humidity | 0-95% |
| Mechanical | |
|---|---|
| Size | 113mm x 45.5mm x 29mm |
| Material | ABS |
| Color | Black |
| Weight | 58g |
What's in the Box
What's in the Box
- Qty 1 - Security: IP POE Repeater
