Description
Description

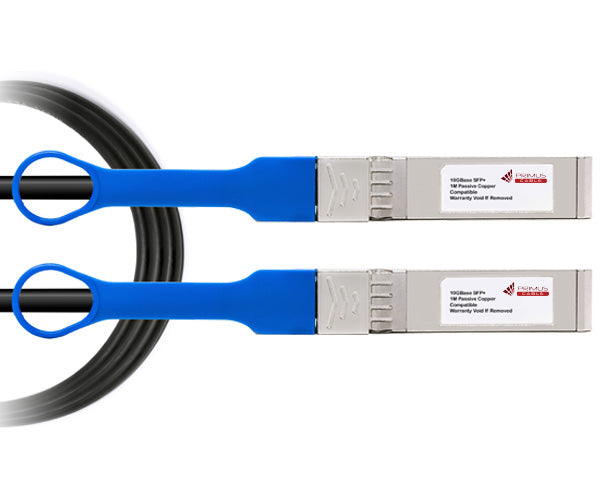

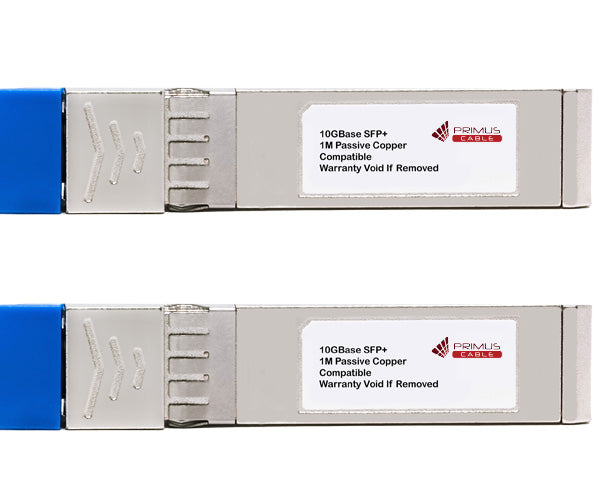

SFP+ 10GbE Copper Twinax Direct Attach Cable
The direct attach copper cables are based on the 10G Ethernet IEEE 802.3ae standard and are programmed to be fully compatible and functional with its brand's own designated switching devices. The passive design has no signal amplification. The passive SFP+ cable is a low-cost alternative for short-reach application.
Features
Features
- Up to 11 GBd bi-directional data links
- Hot-pluggable SFP+ footprint
- AC coupled inputs and outputs
- 100 Ohm differential impedance
- Enhanced EMI design
- Single power supply 3.3V
Compliance
- Meets MSA SFF-8431
- 10G FC
- RoHS Compliant
Applications
- Ideal for 10GBASE Ethernet connections and 10GB fiber channel.
- Suitable for Infiniband DDR and SDR applications.
- Supports 8GB Fibre Channel networks.
Specifications
Specifications
| Connector Type | SFP+ to SFP+ |
| Max Data Rate | 10GB |
| Wire AWG | 30 AWG Twinax |
| Cable Type | Passive |
| Power Supply | 3.3v |
| Operational Temperature Range | 0°C to +70°C |
