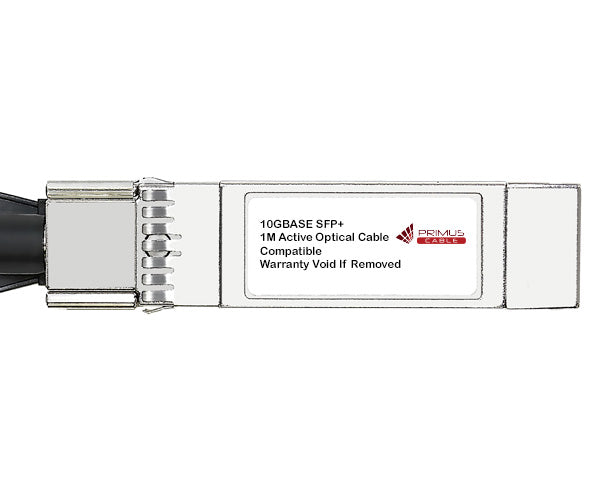

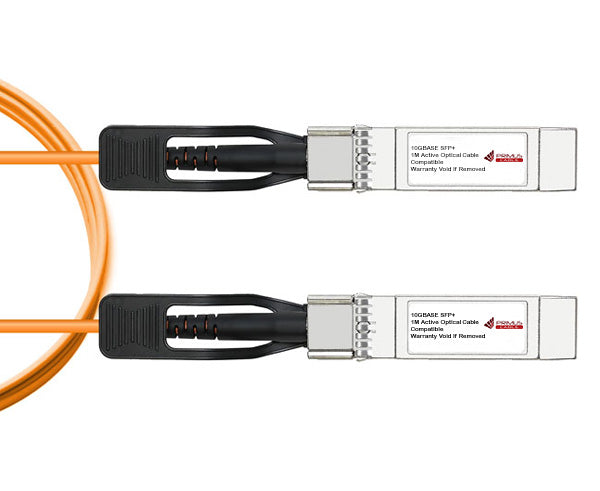

10G SFP+ Active Optical Cable
This Active Optical Cable (AOC) is designed for high-speed data transmission over short distances that adheres to the SFP+ 10Gbps SFF-8431 specification and utilizes multimode fiber with an 850nm nominal wavelength, offering a lightweight and compact solution for connections up to 100 meters.
Features
Features
- High Data Rate: Supports up to 11.3 GBd bi-directional data links.
- Hot-Pluggable: Features a hot-pluggable SFP+ footprint for easy installation.
- Compact Design: Features a slim fiber cable, making it suitable for dense networking environments.
- Low Power Consumption: Consumes less than 1W of power.
- Operating Temperature Range: Designed to operate within a temperature range of 0°C to 70°C.
Compliance
- Meets MSA SFF-8431 and SFF-8432 standards
- Compatible with 10G Fibre Channel (10G FC)
Applications
- Ideal for 10GBASE Ethernet connections.
- Suitable for Infiniband DDR and SDR applications.
- Supports 8GB Fibre Channel networks.
Specifications
Specifications
| Connector Type | SFP+ to SFP+ |
| Max Data Rate | 10GB |
| Fiber Type | OM2 Plenum (OFNP) Fiber |
| Power Supply | 3.3v |
| Operational Temperature Range | 0°C to +70°C |
What's in the Box
What's in the Box
- Qty 1 – Cisco-Compatible 10 Gb/s SFP+ Direct Attach Cable (AOC or DAC, with SFP+ latching connectors)
