Comparable to Cisco's GLC-SX-MM and compatible with Cisco switches.
Description

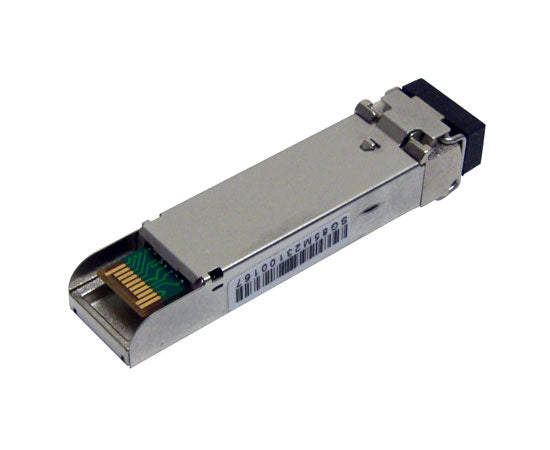

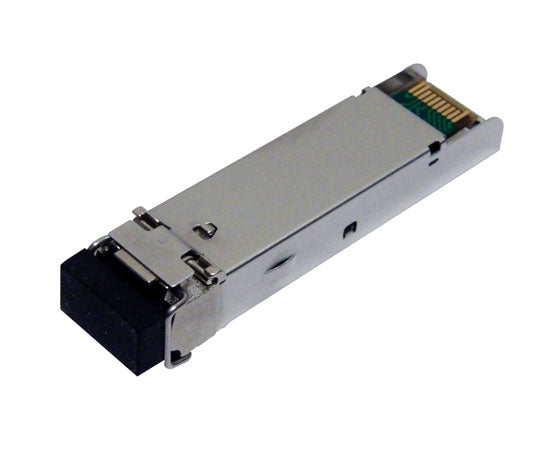

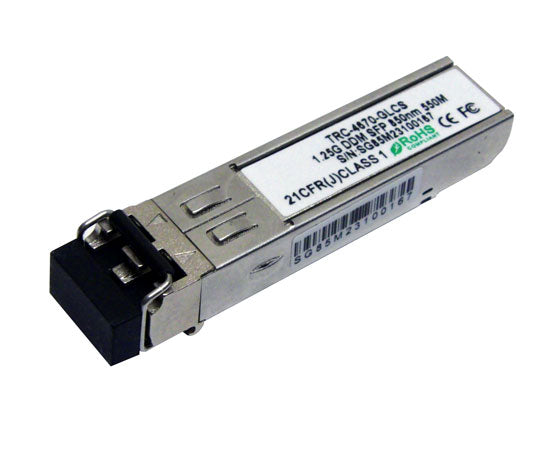

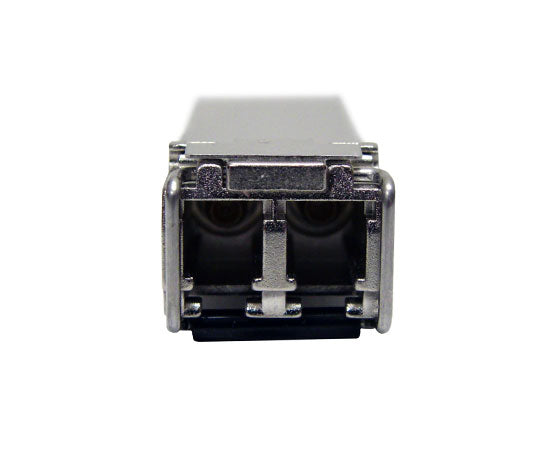

SFP Optical Fiber Transceiver Modules, GLC-SX-MM/TL-SM311LM, 1000BASE-SX, 850nm MMF, up to 550 Meters, LC, Cisco Compatible
The industry-standard Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. SFPs can be used and interchanged on a wide variety of media converters and ethernet switches.
The 1000BASE-SX SFP, compatible with the IEEE 802.3z 1000BASE-SX standard, operates on legacy 50 _m multimode fiber links up to 550M and on 62.5 _m Fiber Distributed Data Interface (FDDI)-grade multimode fibers up to 220M. It can support up to 1KM over laser-optimized 50 _m multimode fiber cable.
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Mode | Multi-Mode Fiber (MMF) |
| Data-rate | 1000BASE |
| Form-factor | SFP |
| Connector | LC |
| Wavelength | 850nm |
| Distance (62.5um @ 160MHz/km) | 220m (722ft) |
| Distance (62.5um @ 200MHz/km) | 275m (902ft) |
| Distance (50um @ 400MHz/km) | 500m (1,640ft) |
| Distance (50um @ 500MHz/km) | 550m (1,804ft) |
| Distance (50um @ 2000MHz/km) | 1km (3,281ft) |
Additional Information
| CISCO COMPATIBILITY CHART | |||
|---|---|---|---|
| CATALYST EXPRESS 500 SERIES | |||
| WS-CE500-24LC | WS-CE500-24PC | WS-CE500G-12TC | WS-CE520-8PC-K9 |
| WS-CE520-24LC-K9 | WS-CE520-24PC-K9 | WS-CE520G-24TC-K9 | |
| METRO ETHERNET | |||
| ME-2400-24TS-A | ME-2400-24TS-D | ME-3400-24TS-A | ME-3400-24TS-D |
| ME-3400G-12CS-A | ME-3400G-12CS-D | ME-3400G-2CS-A | ME-3400-24FS-A |
| ME-3400E-24TS-M | ME-3400EG-2CS-A | ME-3400EG-12CS-M | ME-C3750-24TE-M |
| ME-3600X-24FS-M1 | ME-3600X-24FS-M2 | ME-3600X-24TS-M2 | ME-3600X-24CX-M |
| ME-3800X-24FS-M3 | ME-3800X-24FS-M2 | ME-4924-10GE | ME-C6524GS-8S |
| ME-C6524GT-8S | |||
| CATALYST 2900 SERIES | |||
| WS-C2948G-GE-TX | WS-C2940-8TF-S | WS-C2950ST-8 LRE | WS-C2950ST-24 LRE |
| WS-C2950ST-24 LRE997 | WS-C2960-24TC-L | WS-C2960G-24TC-L | WS-C2960-48TC-L |
| WS-C2960-24PC-L | WS-C2960-24TC-S | WS-C2960-48TC-S | WS-C2960-8TC-S |
| WS-C2960-48PST-L | WS-C2960-8TC-L | WS-C2960G-8TC-L | WS-C2960G-48TC-L |
| WS-C2960-48PST-S | WS-C2960-24PC-S | WS-C2960-24LC-S | WS-C2960+48PST-L |
| WS-C2960+24PC-L | WS-C2960+24LC-L | WS-C2960+48TC-L | WS-C2960+24TC-L |
| WS-C2960+48PST-S | WS-C2960+24PC-S | WS-C2960+24LC-S | WS-C2960+48TC-S |
| WS-C2960+24TC-S | WS-C2960S-24TS-S | WS-C2960S-48TS-S | WS-C2960S-48FPS-L |
| WS-C2960S-48LPS-L | WS-C2960S-24PS-L | WS-C2960S-48TS-L | WS-C2960S-24TS-L |
| WS-C2960S-48FPD-L | WS-C2960S-48LPD-L | WS-C2960S-24PD-L | WS-C2960S-48TD-L |
| WS-C2960S-24TD-L | 2960S-F48TS-S | 2960S-F24TS-S | 2960S-F48FPS-L |
| 2960S-F48LPS-L | 2960S-F24PS-L | 2960S-F48TS-L | 2960S-F24TS-L |
| WS-C2960CG-8TC-L | WS-C2960C-8TC-S | WS-C2960C-8TC-L | WS-C2960C-8PC-L |
| WS-C2960C-12PC-L | WS-C2960X-24TS-LL | WS-C2960X-48TS-LL | WS-C2960X-24PSQ-L |
| WS-C2960X-24PS-L | WS-C2960X-24TS-L | WS-C2960X-48TS-L | WS-C2960X-48LPS-L |
| WS-C2960X-48FPS-L | WS-C2960X-24TD-L | WS-C2960X-24PD-L | WS-C2960X-48TD-L |
| WS-C2960X-48LPD-L | WS-C2960X-48FPD-L | WS-C2960XR-24TS-I | WS-C2960XR-48TS-I |
| WS-C2960XR-24PS-I | WS-C2960XR-48LPS-I | WS-C2960XR-48FPS-I | WS-C2960XR-24TD-I |
| WS-C2960XR-48TD-I | WS-C2960XR-24PD-I | WS-C2960XR-48LPD-I | WS-C2960XR-48FPD-I |
| WS-C2970G-24TS-E | WS-C2975GS-48PS-L | ||
| CATALYST 3500 SERIES | |||
| WS-C3560-24PS | WS-C3560-48PS | WS-C3560G-24TS | WS-C3560G-48TS |
| WS-C3560G-48PS | WS-C3560G-24PS | WS-C3560-48TS | WS-C3560-24TS |
| WS-C3560-8PC | WS-C3560-12PC-S | WS-C3560V2-24PS | WS-C3560V2-24TS |
| WS-C3560V2-48PS | WS-C3560V2-48TS | WS-C3560E-24TD5 | WS-C3560E-24PD5 |
| WS-C3560E-48TD5 | WS-C3560E-48PD5 | WS-C3560E-48PDF5 | WS-C3560E-12D5 |
| WS-C3560E-12SD | WS-C3560E-12SD5 | WS-C3560X-24T6 | WS-C3560X-48T6 |
| WS-C3560X-24P6 | WS-C3560X-48P6 | WS-C3560X-48PF6 | WS-C3560X-24T7 |
| WS-C3560X-48T7 | WS-C3560X-24P7 | WS-C3560X-48P7 | WS-C3560X-48PF7 |
| WS-C3560CG-8TC-S | WS-C3560CG-8PC-S | WS-C3560C-8PC-S | WS-C3560C-12PC-S |
| CATALYST 3600 SERIES | |||
| WS-C3650-24TS | WS-C3650-48TS | WS-C3650-24PS | WS-C3650-48PS |
| WS-C3650-48FS | WS-C3650-24TD | WS-C3650-48TD | WS-C3650-24PD |
| WS-C3650-48PD | WS-C3650-48FD | WS-C3650-48FQ | WS-C3650-48PQ |
| WS-C3650-48TQ | |||
| CATALYST 3700 SERIES | |||
| WS-C3750G-12S | WS-C3750G-24TS | WS-C3750G-48TS | WS-C3750G-24PS |
| WS-C3750G-48PS | WS-C3750-24TS | WS-C3750-48TS | WS-C3750-24PS |
| WS-C3750-48PS | WS-C3750-24FS-S | WS-C3750-24WFS | WS-C3750V2-24PS4 |
| WS-C3750V2-24TS4 | WS-C3750V2-48PS4 | WS-C3750V2-48TS4 | WS-C3750V2-24FS4 |
| WS-C3750E-24TD5 | WS-C3750E-24PD5 | WS-C3750E-48TD5 | WS-C3750E-48PD5 |
| WS-C3750E-48PDF5 | WS-C3750X-24T6 | WS-C3750X-48T6 | WS-C3750X-24P6 |
| WS-C3750X-48P6 | WS-C3750X-48PF6 | WS-C3750X-24T7 | WS-C3750X-48T7 |
| WS-C3750X-24P7 | WS-C3750X-48P7 | WS-C3750X-48PF7 | WS-C3750X-12S8 |
| WS-C3750X-24S8 | WS-C3750X-12S9 | WS-C3750X-24S9 | |
| CATALYST 3800 SERIES | |||
| C3850-NM-4-1G | C3850-NM-2-10G | C3850-NM-4-10G | |
| INDUSTRIAL ETHERNET AND SMART GRID | |||
| IE-2000-4TS-G-L | IE-2000-4TS-G-B | IE-2000-4T-G-L | IE-2000-4T-G-B |
| IE-2000-8TC-G-L | IE-2000-8TC-G-B | IE-2000-8TC-G-E | IE-2000-8TC-G-N |
| IE-2000-16TC-G-L | IE-2000-16TC-G-E | IE-2000-16TC-G-X | IE-2000-16TC-G-N |
| IE-2000-16PTC-G-L | IE-2000-16PTC-G-E | IE-2000-16PTC-G-NX | |
| CATALYST 4500 SERIES | |||
| WS-X4013+TS | WS-X4013+10GE | WS-X4748-SFP-E | WS-X4724-SFP-E |
| WS-X4712-SFP-E | WS-X4448-GB-SFP | WS-X4506-GB-T | WS-X4516-10GE |
| WS-X45-SUP6-E10 | WS-X4606-X210 | WS-X4624-SFP-E | WS-X45-SUP6L-E10 |
| WS-X4612-SFP-E | WS-X4640-CSFP-E | WS-X4712-SFP+E | WS-X45-SUP7-E |
| WS-X45-SUP7L-E | WS-X45-SUP8-E | WS-C4500X-32SFP+ | WS-C4500X-F-32SFP+ |
| WS-C4500X-40X-ES | C4KX-NM-8SFP+ | WS-C4500X-16SFP+ | WS-C4500X-F-16SFP+ |
| WS-C4500X-24X-ES | |||
| CATALYST 4900 SERIES | |||
| WS-C4948 | WS-4928-10GE | WS-C4948E | WS-X490811 |
| CATALYST 6500 SERIES | |||
| WS-SUP720 | WS-SUP720-3B | WS-SUP720-3BXL | WS-SUP32-GE-3B |
| WS-SUP32-10GE-3B | WS-SUP32-GE-PISA | VS-S720-10G-3C | VS-S720-10G-3CXL |
| WS-X6724-SFP | WS-X6748-SFP | VS-S2T-10G | VS-S2T-10G-XL |
| WS-X6824-SFP-2T | WS-X6824-SFP-2TXL | WS-X6848-SFP-2T | WS-X6848-SFP-2TXL |
| WS-X6904-40G-2T | WS-X6904-40G-2TXL | ||
| CATALYST 6800 SERIES | |||
| C6800IA-48FPD | C6800IA-48TD | C6880-X | |
| DATA CENTER AND BLADE SWITCHING | |||
| 2350-48TD-S10 | 2350-48TD-SD10 | 2360-48TD-S | WS-CBS3020-HPQ |
| WS-CBS3030-DEL | WS-CBS3040-FSC | WS-CBS-3120G-S10 | WS-CBS-3130G-S10 |
| WS-CBS3032-DEL10 | WS-CBS3110X-S10 | N2K-C2232PP-10GE | N3K-C3064PQ |
| N3K-C3064PQ-10GE | N3K-C3048TP-1GE | N4K-4001I-XPX | N5K-C5010P-BF |
| N5K-C5020P-BF | N5K-C5548P-FA | N5K-C5548UP-FA | N5KC5596UP-FA |
| N55-M16P | N55-M8P8FP | N55-M16UP | N10-S6100 |
| N10-S6200 | N10-E0440 | N10-E0600 | N20-I6584 |
| UCS-FI-6248UP | UCS-FI-E16UP | UCS-IOM-2208XP | N7K-M148GS-11 |
| N7K-M148GS-11L | N7K-F132XP-15 | N7K-F248XP-25 | N7K-F248XP-25E |
| N77-F348XP-23 | N9K-X9564PX | N9K-X9464PX | N9K-C9396PX |
| CSS11506-2AC | CSS11506-2DC | CSS11503-AC | CSS11503-DC |
| CSS11501 | CSS5-SCM-2GE | CSS5-IOM-2GE | |
| ROUTERS | |||
| CISCO892F-K9 | CISCO892FW-K9 | HWIC-1GE-SFP | EHWIC-1GE-SFP-CU |
| NME-XD-24ES-1S-P | NME-XD-48ES-2S-P | Cisco 2921 | Cisco 2951 |
| SM-D-ES3G-48-P | SM-D-ES3-48-P | SM-D-ES2-48 | Cisco 3825 |
| Cisco 3845 | Cisco 3925 | Cisco 3945 | Cisco 4451-X |
| Cisco 7201 | NPE-G2 | uBR7200-NPE-G2 | CISCO7301 |
| 7304-NPE-G100 | 7300-NSE-150 | WS-SUP720 | WS-SUP720-3B |
| WS-SUP720-3BXL | WS-SUP32-GE-3B | WS-X6724-SFP | WS-X6748-SFP |
| RSP720-3C-GE | RSP720-3CXL-GE | RSP720-10GE | 10x1GE-SFP-LC-B |
| 4GE-SFP-LC | EPA-3GE-SX/LH-LC | A901-12C-F-D | A901-12-C-FT-D |
| A901-4C-F-D | A901-4-C-FT-D | A901-6CZ-F-D | A901-6-CZ-FT-D |
| A901-6CZ-F-A | A901-6-CZ-FT-A | ||
| APPLIANCES | |||
| SSM-4GE | NAM2204-SFP | ||
| LAN CONTROLLERS | |||
| AIR-CT5760-25-K9 | AIR-CT5760-50-K9 | AIR-CT5760-100-K9 | AIR-CT5760-250-K9 |
| AIR-CT5760-500-K9 | AIR-CT5760-1K-K9 | AIR-CT5760-HA-K9 | |
1 SFP ports
2 SFP+ ports
3 Client ports
4 Uplink ports
5 With CVR-X2-SFP (for X2 ports)
6 With C3KX-NM-1G and C3KX-NM-10G (slots 1 and 3) network modules
7 With C3KX-NM-10G (slots 2 and 4) and C3KX-SM-10G network modules
8 Client ports and uplink ports with C3KX-NM-1G and C3KX-NM-10G (slots 1 and 3) network modules
9 Uplink ports with C3KX-NM-10G (slots 2 and 4) and C3KX-SM-10G network modules
10 With CVR-X2-SFP Twin Gig converter
11 With CVR-X2-SFP Twin Gig converter in a WS-C4900M
2 SFP+ ports
3 Client ports
4 Uplink ports
5 With CVR-X2-SFP (for X2 ports)
6 With C3KX-NM-1G and C3KX-NM-10G (slots 1 and 3) network modules
7 With C3KX-NM-10G (slots 2 and 4) and C3KX-SM-10G network modules
8 Client ports and uplink ports with C3KX-NM-1G and C3KX-NM-10G (slots 1 and 3) network modules
9 Uplink ports with C3KX-NM-10G (slots 2 and 4) and C3KX-SM-10G network modules
10 With CVR-X2-SFP Twin Gig converter
11 With CVR-X2-SFP Twin Gig converter in a WS-C4900M
What's in the Box
What's in the Box
- Qty 1 - SFP Fiber Optical Transceiver Modules, Multimode, GLC-SX-MM/TL-SM311LM, 550M 1000BASE-SX, LC Connector, Cisco Compatible
