Comparable to Cisco's GLC-BX-D and compatible with Cisco switches.
Description

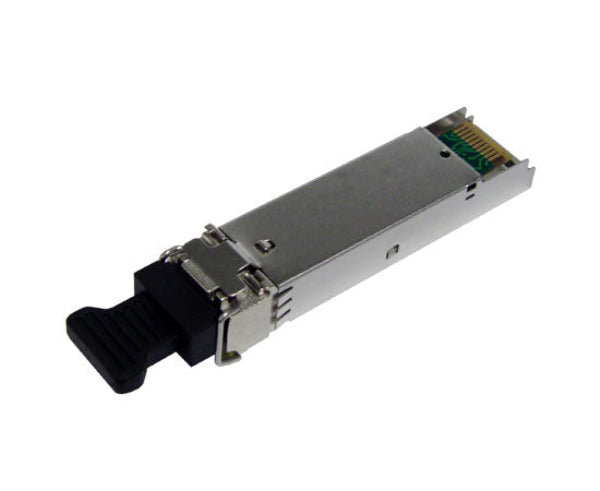

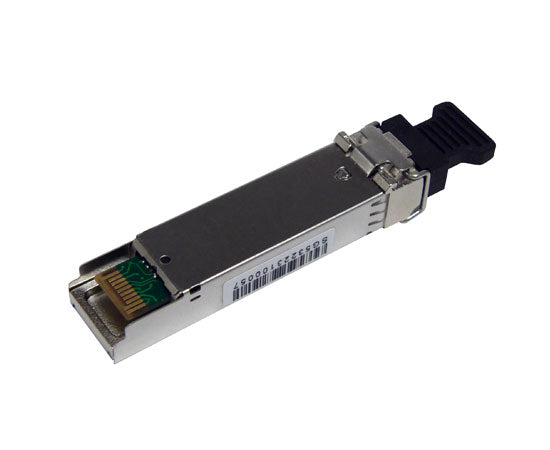

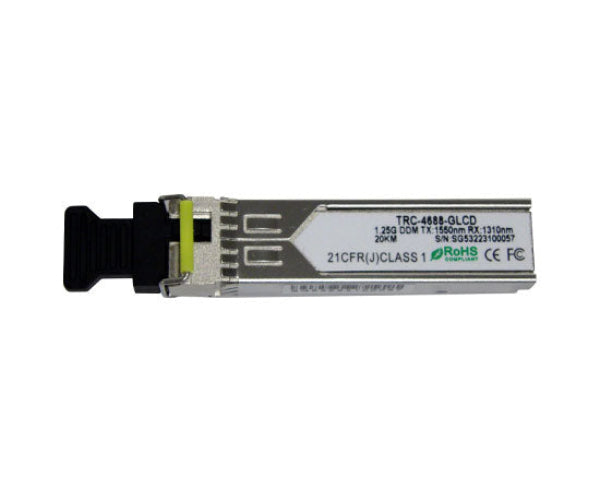

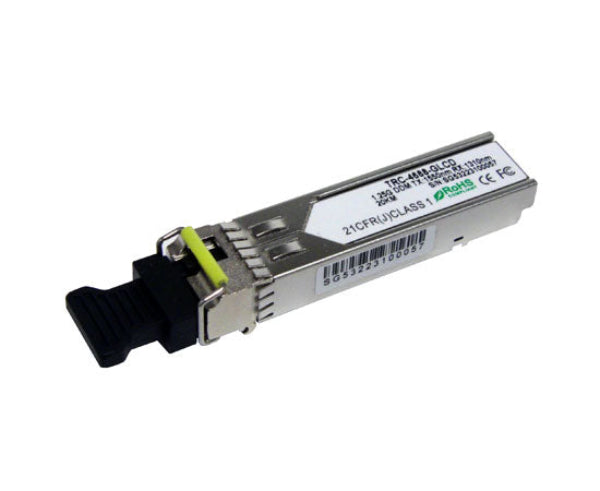

SFP Fiber Transceiver Modules, GLC-BX-D, 1000BASE-BX10-D WDM Bi-Directional, TX1490nm/RX1310nm SMF, up to 20 Kilometers, LC, Cisco Compatible
The industry-standard Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. SFPs can be used and interchanged on a wide variety of media converters and ethernet switches.
The TRC-4688-GLCD and TRC-4687-GLCU SFPs, compatible with the IEEE 802.3ah TRC-4688-GLCD and TRC-4687-GLCU standards, operate on a single strand of standard SMF.
A TRC-4688-GLCD device is always connected to a TRC-4687-GLCU device with a single strand of standard SMF with an operating transmission range up to 20 km.
The communication over a single strand of fiber is achieved by separating the transmission wavelength of the two devices: TRC-4688-GLCD transmits a 1490-nm channel and receives a 1310-nm signal, whereas TRC-4687-GLCU transmits at a 1310-nm wavelength and receives a 1490-nm signal. There is a wavelength-division multiplexing (WDM) splitter integrated into the SFP to split the 1310-nm and 1490-nm light paths.
The TRC-4688-GLCD and TRC-4687-GLCU SFPs also support digital optical monitoring (DOM) functions according to the industry-standard SFF-8472 multisource agreement (MSA). This feature gives the end user the ability to monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| CONNECTIONS & INTERFACE | |

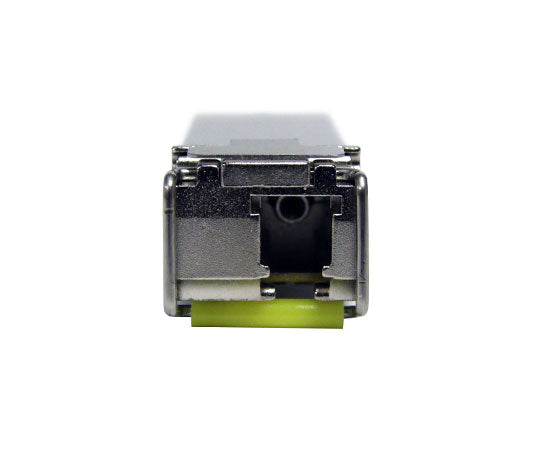

| CONNECTOR | LC |
| INTERFACE | 2-WIRE |
| GENERAL PARAMETERS | |
| DATA RATE | UP TO 1000BASE-BX10-D |
| MODE | SINGLE-MODE FIBER (SMF) |
| FORM-FACTOR | SFP |
| WAVELENGTH | 1490NM (DOWNSTREAM) |
| DISTANCE (9UM) | 20KM (12.4 MILES) |
| TEMPERATURE | |
| OPERATING TEMPERATURE | -5 TO 70 °C |
| PHYSICAL PROPERTIES | |
| FIBER CORE DIAMETER | 9/125 UM |
Additional Information
| Cisco Compatibility Chart | |
|---|---|
| METRO ETHERNET | |
| MODELS | ME-2400-24TS-A; ME-2400-24TS-D; ME2600X-44FA-D-K9=; ME2600X-44FE-D-K9=; ME2600X-44FA-A-K9=; ME-3400-24TS-A; ME-3400-24TS-D; ME-3400G-12CS-A; ME-3400G-12CS-D; ME-3400G-2CS-A; ME-3400-24FS-A; ME-3400E-24TS-M; ME-3400EG-2CS-A; ME-3400EG-12CS-M; ME-C3750-24TE-M; ME-3600X-24FS-M1; ME-3600X-24CX-M; ME-3800X-24FS-M2; ME4600-AMX-48GE; ME-4924-10GE; ME-C6524GS-8S; ME-C6524GT-8S |
| CATALYST 2900 SERIES | |
| MODELS | WS-C2960-24TC-L; WS-C2960G-24TC-L; WS-C2960-48TC-L; WS-C2960-24PC-L; WS-C2960-48PST-L; WS-C2960-8TC-L; WS-C2960G-8TC-L; WS-C2960G-48TC-L; WS-C2960+48PST-L; WS-C2960+24PC-L; WS-C2960+24LC-L; WS-C2960+48TC-L; WS-C2960+24TC-L; WS-C2960S-48FPS-L; WS-C2960S-48LPS-L; WS-C2960S-24PS-L; WS-C2960S-48TS-L; WS-C2960S-24TS-L; WS-C2960S-48FPD-L; WS-C2960S-48LPD-L; WS-C2960S-24PD-L; WS-C2960S-48TD-L; WS-C2960S-24TD-L; 2960S-F48FPS-L; 2960S-F48LPS-L; 2960S-F24PS-L; 2960S-F48TS-L; 2960S-F24TS-L; WS-C2960CG-8TC-L; WS-C2960C-8TC-L; WS-C2960C-8PC-L; WS-C2960C-12PC-L; WS-C2960X-24PSQ-L; WS-C2960X-24PS-L; WS-C2960X-24TS-L; WS-C2960X-48TS-L; WS-C2960X-48LPS-L; WS-C2960X-48FPS-L; WS-C2960X-24TD-L; WS-C2960X-24PD-L; WS-C2960X-48TD-L; WS-C2960X-48LPD-L; WS-C2960X-48FPD-L; WS-C2960XR-24TS-I; WS-C2960XR-48TS-I; WS-C2960XR-24PS-I; WS-C2960XR-48LPS-I; WS-C2960XR-48FPS-I; WS-C2960XR-24TD-I; WS-C2960XR-48TD-I; WS-C2960XR-24PD-I; WS-C2960XR-48LPD-I; WS-C2960XR-48FPD-I |
| CATALYST 3500 SERIES | |
| MODELS | WS-C3560-24PS; WS-C3560-48PS; WS-C3560G-24TS; WS-C3560G-48TS; WS-C3560G-48PS; WS-C3560G-24PS; WS-C3560-48TS; WS-C3560-24TS; WS-C3560-8PC; WS-C3560-12PC-S; WS-C3560V2-24PS; WS-C3560V2-24TS; WS-C3560V2-48PS; WS-C3560V2-48TS; WS-C3560E-24TD4; WS-C3560E-24PD4; WS-C3560E-48TD4; WS-C3560E-48PD4; WS-C3560E-48PDF4; WS-C3560E-12D4; WS-C3560E-12SD; WS-C3560E-12SD4; WS-C3560X-24T5; WS-C3560X-48T5; WS-C3560X-24P5; WS-C3560X-48P5; WS-C3560X-48PF5; WS-C3560X-24T6; WS-C3560X-48T6; WS-C3560X-24P6; WS-C3560X-48P6; WS-C3560X-48PF6; WS-C3560CG-8TC-S; WS-C3560CG-8PC-S; WS-C3560C-8PC-S; WS-C3560C-12PC-S |
| CATALYST 3600 SERIES | |
| MODELS | WS-C3650-24TS; WS-C3650-48TS; WS-C3650-24PS; WS-C3650-48PS; WS-C3650-48FS; WS-C3650-24TD; WS-C3650-48TD; WS-C3650-24PD; WS-C3650-48PD; WS-C3650-48FD; WS-C3650-48FQ; WS-C3650-48PQ; WS-C3650-48TQ |
| CATALYST 3700 SERIES | |
| MODELS | WS-C3750G-12S; WS-C3750G-24TS; WS-C3750G-48TS; WS-C3750G-24PS; WS-C3750G-48PS; WS-C3750-24TS; WS-C3750-48TS; WS-C3750-24PS; WS-C3750-48PS; WS-C3750-24FS-S; WS-C3750-24WFS; WS-C3750V2-24PS3; WS-C3750V2-24TS3; WS-C3750V2-48PS3; WS-C3750V2-48TS3; WS-C3750V2-24FS3; WS-C3750E-24TD4; WS-C3750E-24PD4; WS-C3750E-48TD4; WS-C3750E-48PD4; WS-C3750E-48PDF4; WS-C3750X-24T5; WS-C3750X-48T5; WS-C3750X-24P5; WS-C3750X-48P5; WS-C3750X-48PF5; WS-C3750X-24T6; WS-C3750X-48T6; WS-C3750X-24P6; WS-C3750X-48P6; WS-C3750X-48PF6; WS-C3750X-12S7; WS-C3750X-24S7; WS-C3750X-12S8; WS-C3750X-24S8 |
| CATALYST 3800 SERIES | |
| MODELS | C3850-NM-4-1G; C3850-NM-2-10G; C3850-NM-4-10G |
| INDUSTRIAL ETHERNET AND SMART GRID | |
| MODELS | IE-2000-4TS-G-L; IE-2000-4TS-G-B; IE-2000-4T-G-L; IE-2000-4T-G-B; IE-2000-8TC-G-L; IE-2000-8TC-G-B; IE-2000-8TC-G-E; IE-2000-8TC-G-N; IE-2000-16TC-G-L; IE-2000-16TC-G-E; IE-2000-16TC-G-X; IE-2000-16TC-G-N; IE-2000-16PTC-G-L; IE-2000-16PTC-G-E; IE-2000-16PTC-G-NX; IE 2000U-4TS-G; IE 2000U-8TC-G; IE 2000U-16TC-G; IE 2000U-16TC-G-X; IE 2000U-16TC-GP; IE-3000-4TC; IE-3000-8TC; IE-3010-24TC; IE-3010-16S-8PC; CGS-2520-24TC; CGS-2520-16S-8PC |
| CATALYST 4500 SERIES | |
| MODULES & MODELS | WS-X4013+TS; WS-X4013+10GE; WS-X4748-SFP-E; WS-X4724-SFP-E; WS-X4712-SFP-E; WS-X4448-GB-SFP; WS-X4506-GB-T; WS-X4516-10GE; WS-X45-SUP6-E9; WS-X4606-X29; WS-X4624-SFP-E; WS-X45-SUP6L-E9; WS-X4612-SFP-E; WS-X4640-CSFP-E; WS-X4712-SFP+E; WS-X45-SUP7-E; WS-X45-SUP7L-E; WS-X45-SUP8-E; WS-C4500X-32SFP+; WS-C4500X-F-32SFP+; WS-C4500X-40X-ES; C4KX-NM-8SFP+; WS-C4500X-16SFP+; WS-C4500X-F-16SFP+; WS-C4500X-24X-ES |
| CATALYST 4900 SERIES | |
| MODELS | WS-C4948; WS-4928-10GE; WS-C4948E; WS-X490810 |
| CATALYST 6500 SERIES | |
| SUPERVISORS & MODULES | WS-SUP720; WS-SUP720-3B; WS-SUP720-3BXL; WS-SUP32-GE-3B; WS-SUP32-10GE-3B; WS-SUP32-GE-PISA; VS-S720-10G-3C; VS-S720-10G-3CXL; WS-X6724-SFP; WS-X6748-SFP; VS-S2T-10G; VS-S2T-10G-XL; WS-X6824-SFP-2T; WS-X6824-SFP-2TXL; WS-X6848-SFP-2T; WS-X6848-SFP-2TXL; WS-X6904-40G-2T; WS-X6904-40G-2TXL |
| CATALYST 6800 SERIES | |
| MODELS | C6800IA-48FPD; C6800IA-48TD; C6880-X |
| DATA CENTER AND BLADE SWITCHING | |
| MODULES & MODELS | N7K-M148GS-11; N7K-M148GS-11L; N7K-F248XP-25; N7K-F248XP-25E; N77-F348XP-23 |
| ROUTERS | |
| MODELS | CISCO892F-K9; CISCO892FW-K9; EHWIC-1GE-SFP-CU; CISCO 2921; CISCO 2951; SM-D-ES3G-48-P; SM-D-ES3-48-P; SM-D-ES2-48; CISCO 3925; CISCO 3945; CISCO 4451-X; 7300-NSE-150; WS-SUP32-GE-3B; WS-X6724-SFP; WS-X6748-SFP; RSP720-3C-GE; RSP720-3CXL-GE; RSP720-10GE; 7600-ES20-GE3CXL; 7600-ES20-GE3C; 7600-ES+20G3C; 7600-ES+20G3CXL; 7600-ES+40G3C; 7600-ES+40G3CXL; 76-ES+T-20G; 76-ES+T-40G; 76-ES+XC-20G3C; 76-ES+XC-20G3CXL; 76-ES+XC-40G3C; 76-ES+XC-40G3CXL; A901-12C-F-D; A901-12-C-FT-D; A901-4C-F-D; A901-4-C-FT-D; A901-6CZ-F-D; A901-6-CZ-FT-D; A901-6CZ-F-A; A901-6-CZ-FT-A; A900-IMA8S; ASR1001; ASR1002; ASR1002-F; ASR1002-X; A9K-40GE-B; A9K-40GE-E; A9K-2T20GE-B; A9K-2T20GE-E; A9K-2T20GE-L; A9K-40GE-L; A9K-MPA-20X1GE; A9K-RSP440-TR; A9K-RSP440-SE; ASR-9000V-AC; ASR-9000V-DC-A; ASR-9000V-DC-E; MWR-2941-DC |
| LAN CONTROLLERS | |
| MODELS | AIR-CT5760-25-K9; AIR-CT5760-50-K9; AIR-CT5760-100-K9; AIR-CT5760-250-K9; AIR-CT5760-500-K9; AIR-CT5760-1K-K9; AIR-CT5760-HA-K9 |
| NOTES | |
| PORT / MODULE FOOTNOTES | 1 SFP PORTS; 2 CLIENT PORTS; 3 UPLINK PORTS; 4 WITH CVR-X2-SFP (FOR X2 PORTS); 5 WITH C3KX-NM-1G AND C3KX-NM-10G (SLOTS 1 AND 3) NETWORK MODULES; 6 WITH C3KX-NM-10G (SLOTS 2 AND 4) AND C3KX-SM-10G NETWORK MODULES; 7 CLIENT PORTS AND UPLINK PORTS WITH C3KX-NM-1G AND C3KX-NM-10G (SLOTS 1 AND 3) NETWORK MODULES; 8 UPLINK PORTS WITH C3KX-NM-10G (SLOTS 2 AND 4) AND C3KX-SM-10G NETWORK MODULES; 9 WITH CVR-X2-SFP TWIN GIG CONVERTER; 10 WITH CVR-X2-SFP TWIN GIG CONVERTER IN A WS-C4900M |
What's in the Box
What’s in the Box
- Qty 1 - SFP Optical Transceiver Modules, Single Mode, GLC-BX-D, 20KM 1000BASE-BX10-D WDM Bi-Directional, LC Connector, TX-1490/RX-1310, Cisco Compatible
