SG2210MP TP-Link | Omada 10-Port Gigabit Smart Switch with 8-Port PoE+
What This Product Does
The Omada SG2210MP is a robust 10-port gigabit smart switch designed for dynamic business and enterprise environments. It delivers both power and data over a single cable through its eight Gigabit PoE⁺ ports—each capable of up to 30 W within a total PoE budget of 150 W—as well as two Gigabit SFP uplink slots. This precise power delivery supports high-demand applications such as IP surveillance, wireless access points, and VoIP systems, while its advanced management features—zero-touch provisioning, VLAN configuration, ACLs, QoS, and IGMP Snooping—ensure efficient traffic control and streamlined network segmentation all within the versatile Omada SDN ecosystem.
Software Defined Networking (SDN) with Cloud Access
Featuring a durable metal chassis for both desktop and 1U rack mounting, the SG2210MP is engineered for efficient cooling, energy management, and reliable operation in diverse setups. Its centralized, cloud-based management simplifies monitoring and configuration across multiple sites, making it a scalable solution that adapts gracefully to the evolving demands of modern network infrastructures. This switch stands as an excellent choice for organizations looking to strengthen their network backbone while benefiting from an agile, easy-to-manage system.
Features
Features
- 8× Gigabit 802.3af/at PoE+ ports and 2× Gigabit SFP slots
- 150 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
-
Durable metal casing and desktop/rack mounting design
| Feature | TP‑Link (Omada) | Ubiquiti (UniFi) |
|---|---|---|
| Wireless Standard | Wi‑Fi 7 (802.11be) ✔ | Wi‑Fi 6 (802.11ax) ✔ |
| WAN Ports | Up to 6 WAN + USB LTE ✔ | 1×2.5GbE (plus 4×LAN) ✘ |
| Cloud Management | ✔ | ✔ |
| License Fee | ✔ Free controller | ✔ Free controller |
| VPN & Security | ✔ IPSec, OpenVPN, WireGuard | ✔ OpenVPN, IPS/IDS |
| AI Optimization | ✔ Auto-tuning | ✘ |
| Remote App | ✔ Omada App | ✔ UniFi App |
| Multi-site | ✔ | ✔ |
| Firewall/Gateway | ✔ | ✔ |
Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface | • 8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX) • 2× 100/1000 Mbps SFP Slots |
| Physical Security Lock | ✔️ |
| Power Supply | 100-240V AC, 50/60Hz |
| PoE Ports (RJ45) | • Standard: 802.3at/af compliant • PoE+ Ports: 8 Ports • PoE Power Budget: 150 W* |
| Dimensions (W × D × H) | 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm) |
| Mounting | Rackmount/Desktop |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.9 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| GENERAL | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content |
|
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment |
|
Additional Information
Ethernet Switch Accessories
An Ethernet network switch is a telecommunication device that receives data transmitted from a connected device and relays it to a specific device. Ethernet switches create separate collision domains per switch port, allowing for simultaneous data transfers to occur without interference. They also reduce the number of broadcast domains and don't require heavy CPU usage. The Ethernet switch manages the flow of network traffic more efficiently and in a safer manner than repeater hubs. It allows for the flow of data between connected devices. Ethernet switches come in both managed and unmanaged varieties. Unmanaged switches are the easy-to-install, plug-and-play variety. To learn more about our Ethernet Switches please visit our overview page. Our Switches can be combined with a wide array of products such as:
- CAT6 Ethernet Cables
- CAT6A Ethernet Cables
- CAT5E Ethernet Cables
- PoE Splitter, Fast Ethernet, 1 Port
Build Features

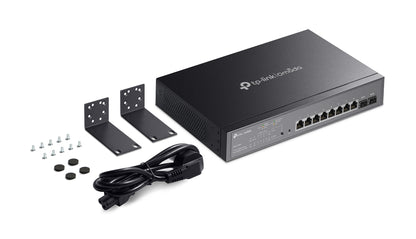

What's In The Box
What's In The Box
- Qty 1 - SG2210MP
- Qty 1 - Power Cord
- Qty 1 - Rackmount Kits
- Qty 1 - Rubber Feet
