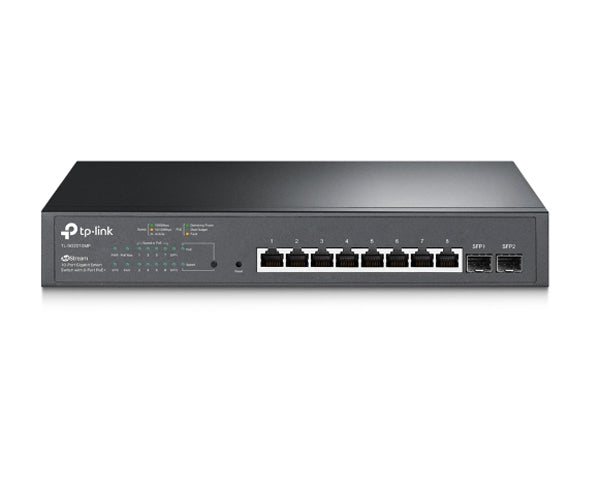

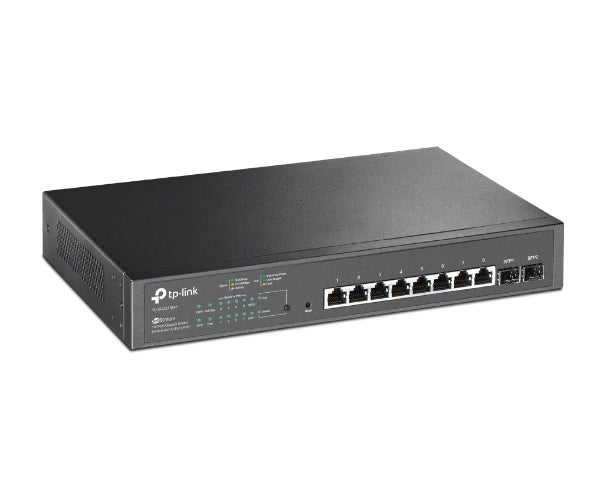

TL-SG2210MP TP-Link | Omada JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+
TL-SG2210MP TP-Link | Omada JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+
BY TP-Link
SKU: SKU: TL-SG2210MP
Couldn't load pickup availability
⚠ Various lead times may apply to this product. Please contact us for more details.
View full details
TL-SG2210MP TP-Link | Omada JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+
What This Product Does
TP-Link JetStream Gigabit Smart Switch TL-SG2210MP is equipped with 8 gigabit RJ45 ports, all RJ45 Ports support the 802.3af/at (PoE+) standard with a total PoE power budget of 150W and useful PoE power management features. The switch provides high-performance and useful security strategies.
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Features
- 150 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 150 W*.
- Full Gigabit Ports: 8× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
- Integrated Into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Specifications
| HARDWARE FEATURES | ||
|---|---|---|
| Interface | 8 x 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/ Auto MDI/ MDIX) | |
| Fan Quantity | 1 |
|
| Power Supply | 100-240 V AC~50/60 Hz | |
| PoE+ Ports (RJ45) |
Standard: 802.3at/af compliant PoE+ Ports: 8 ports Power Supply: 150 W |
|
| PoE Ports (RJ45) |
Standard: 802.3at/af compliant PoE+ Ports: 8 Ports PoE Power Budget:150 W* |
|
| Dimensions (W x D x H) |
11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm) |
|
| Mounting |
Desktop, 13" or 19" 1U Rack Mountable |
|
| Max Power Consumption |
12.2 W (110 V / 60 Hz with no PD connected) 173.9 W (110 V / 60 Hz with 150 PD connected) |
|
| Max Heat Dissipation |
41.6 BTU/h (with no PD connected) 539.4 BTU/h (with 150 W PD connected) |
|
| PERFORMANCE | ||
|---|---|---|
| Switching Capacity | 20 Gbps |
|
| Packet Forwarding Rate | 14.9 Mbps |
|
| MAC Address Table | 8K |
|
| Packet Buffer Memory | 4.1 Mbit | |
| Jumbo Frame | 9 KB | |
| GENERAL |
||
|---|---|---|
| Certification | CE, FCC, RoHS |
|
| Package Contents |
SG2210MP Power Cord Installation Guide Rackmount Kit Rubber Feet |
|
| Environment |
Operating Temperature: 0–50 ℃ (32–122 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
|
Ethernet Switch Accessories
An Ethernet network switch is a telecommunication device that receives data transmitted from a connected device and relays it to a specific device. Ethernet switches create separate collision domains per switch port, allowing for simultaneous data transfers to occur without interference. They also reduce the number of broadcast domains and don't require heavy CPU usage. The Ethernet switch manages the flow of network traffic more efficiently and in a safer manner than repeater hubs. It allows for the flow of data between connected devices. Ethernet switches come in both managed and unmanaged varieties. Unmanaged switches are the easy-to-install, plug-and-play variety. To learn more about our Ethernet Switches please visit our overview page. Our Switches can be combined with a wide array of products such as:
What's In The Box
- Qty 1 - SG2210MP
- Qty 1 - Power Cord
- Qty 1 - Installation Guide
- Qty 1 - Resource CD
- Qty 1 - Rackmount Kits
- Qty 1 - Rubber Feet
