Description

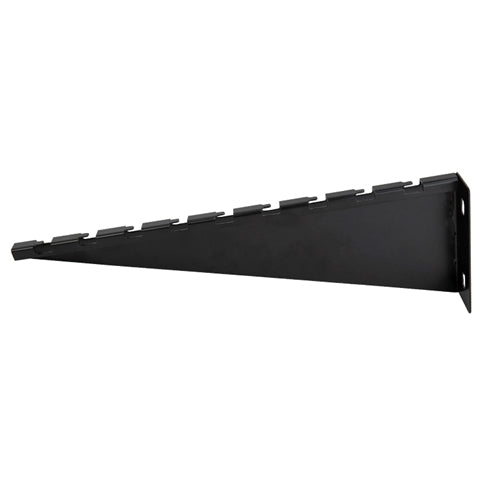

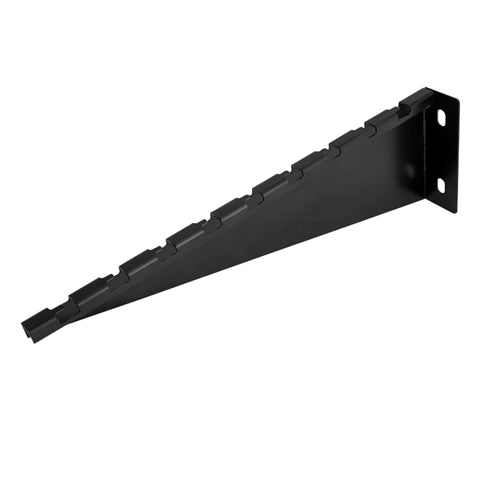

Shelf Wall Bracket
Shelf Wall Brackets are a heavy-duty option for mounting high capacity basket tray to a wall.
Features
Features
- Heavy duty construction for high density installations
- Helps maintain a consistent distance between the basket tray and a wallFor use with 4" (100mm) to 16" (400mm) wide tray
- Compatible with all tray depths
- Black powder coat finish
- Hardware for mounting to wall not included
- Sold individually
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Material | High-strength carbon steel |
| Finish | Black powder coat |
| Compliance & Standards | IEC 61537 |
| DESCRIPTION | DIMENSIONS (LxH) |
| Shelf Wall Bracket for 4”W Tray | 7.9” x 4.7” |
| Shelf Wall Bracket for 6”W Tray | 9.8” x 4.7” |
| Shelf Wall Bracket for 8”W Tray | 11.8” x 4.7” |
| Shelf Wall Bracket for 12”W Tray | 15.7” x 5.9” |
| Shelf Wall Bracket for 12”W Tray | 19.7” x 5.9” |
| Shelf Wall Bracket for 18”W Tray | 21.0” x 9.75” |
Additional Information
| TECHNICAL ILLUSTRATIONS | |
|---|---|
|
What's in the Box
What's in the Box
- Qty 1 - Shelf Wall Bracket
