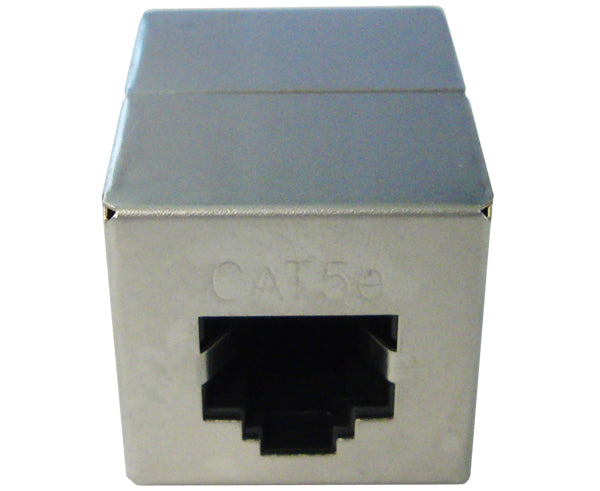

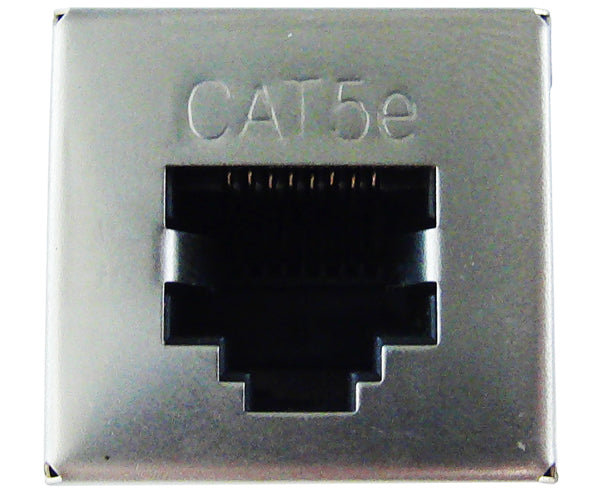

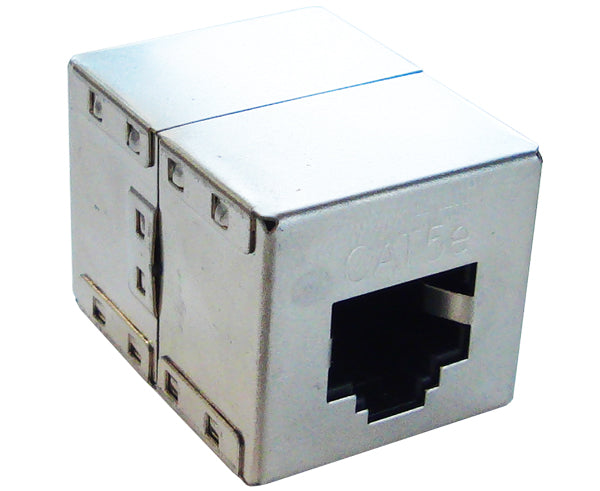

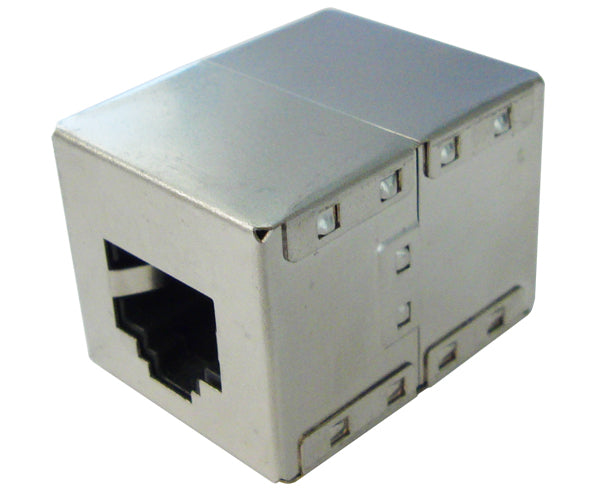

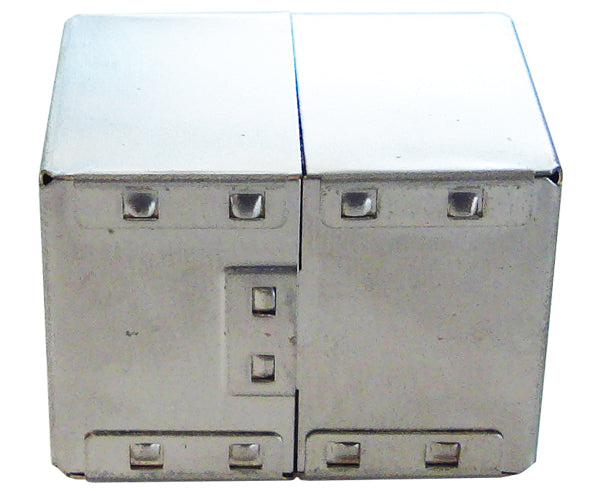

Shielded CAT5E RJ45 Inline Coupler

$3.20
SKU: IC1-2836S
RoHS Compliant

Although these couplers fit most patch cords, they were designed to be used with our CAT5E patch cords and modular plugs.

Description

Description

Our Shielded CAT5E Inline Couplers work great for extending your telephone or computer patch cord into any room of the house or office. Our Shielded CAT5E Inline Couplers are designed to link Two shielded networking patch cables together, or if you need to extend an existing shielded cable run. The in-line coupler provides a female-to-female feed-through connection for easy cable hook-up. The coupler is fully covered in a metal case to protect your signal against electromagnetic noises that may interfere with your signal. The Shielded CAT5E Inline Coupler comes standard with gold plated brass contacts, and 8 conductors straight-thru RJ45 CAT5E. It is designed for computer networking applications and works best with our Patch Cords.

Because we take great pride in our quality control procedures and our commitment to quality our Shielded CAT5E Inline Couplers are inspected and tested to comply with stringent transmissions and safety standards and meet or exceed the industry standards.

To complete your CAT5E network we carry a full end to end solution including CAT5E bulk Ethernet cables, CAT5E patch cords, RJ45 modular plugs, CAT5E keystone jacks & couplers, Blank Patch Panels, CAT5E Patch Panels, wall plates. We also have a large assortment of tools, testers and cable management accessories that will help make your installation fast, smooth and organized. If you have any questions, feel free to give us a call.

Features

Features

  • CAT5E Performance Speeds Of Up To 350 MHz
  • Meticulously Engineered To Deliver Exceptional Performance
  • Meets & Exceeds Industry Standards
  • For Use With CAT 5E F/UTP Ethernet Cables/Patch Cords (F/UTP = Overall Foil Shielded)
  • Connectors: One RJ45 Female To One RJ45 Female
  • Type: 8 Conductor Straight-Thru RJ45 CAT5E
  • Designed For Computer Networking Applications

Specifications

RJ45 Jack

Housing: ABS, UL 94V-0 with optional color
Contact Bracket: PC, UL 94V-2, Transparent color
Height: 0.9 inches
Width: 0.7 inches
Depth: 1.4 inches

RJ45 Jack Contact

Material: Phosphor Bronze with plated Nickel
Finish: 50 micro-inch Gold plated on plug contact area
RJ45 Jack Shield: Bronze with Plated Nickel
PCB: FR4, UL 94V-0

Performance

Insertion Force: 30N max.
Retention Strength: 7.7 kg between Jack and Plug
Operating temperature: -10ºC to 60ºC / 14ºF to 140ºF
Life (mating cycles): 750 cycles min
*The CAT5E transmission performance is in compliance with ANSI/TIA/EIA 568 B.2 standards

Additional Information

Additional Information

Our CAT5E Inline Couplers, Shielded In-Line Ethernet Data Couplers are compatible with:

What's in the box?

What's in the box?

  • QTY 1 - CAT5E In-Line Coupler, In-Line Ethernet Data Coupler
