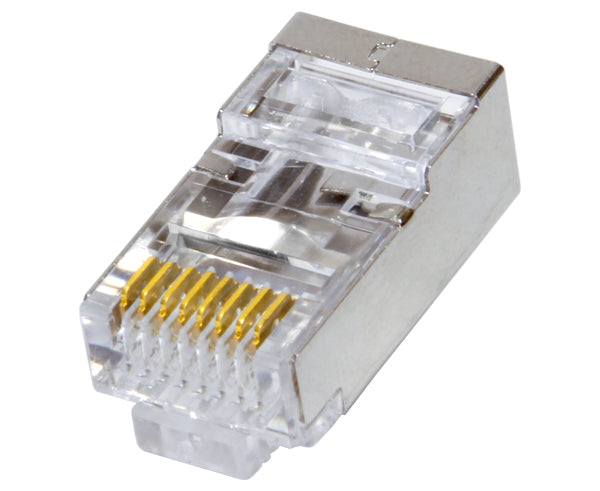

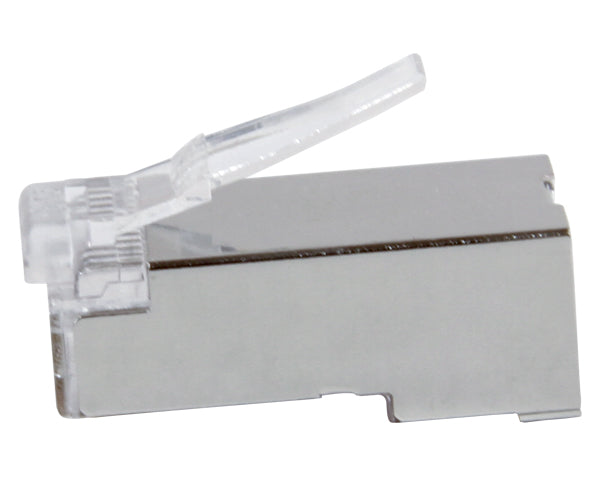

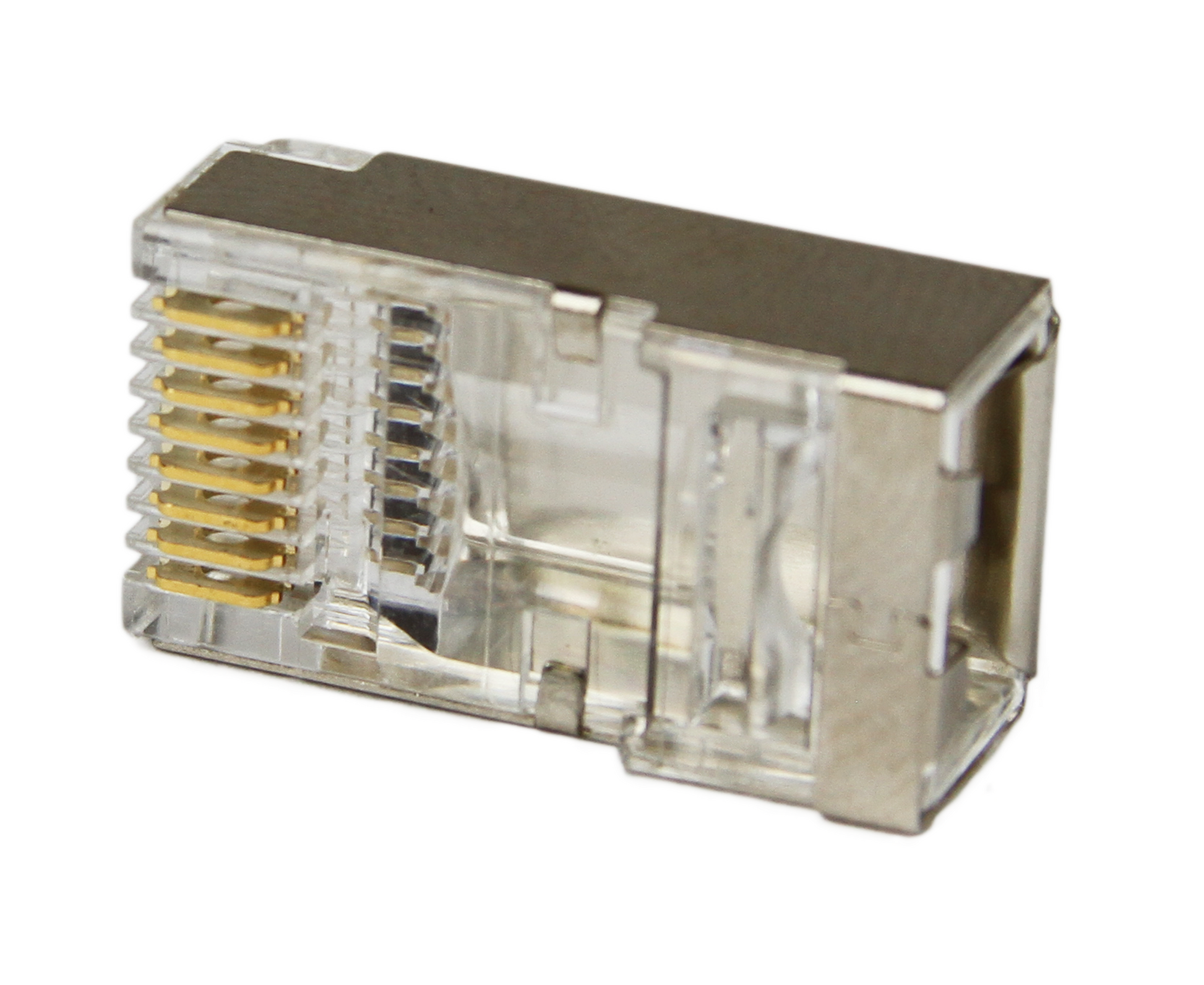

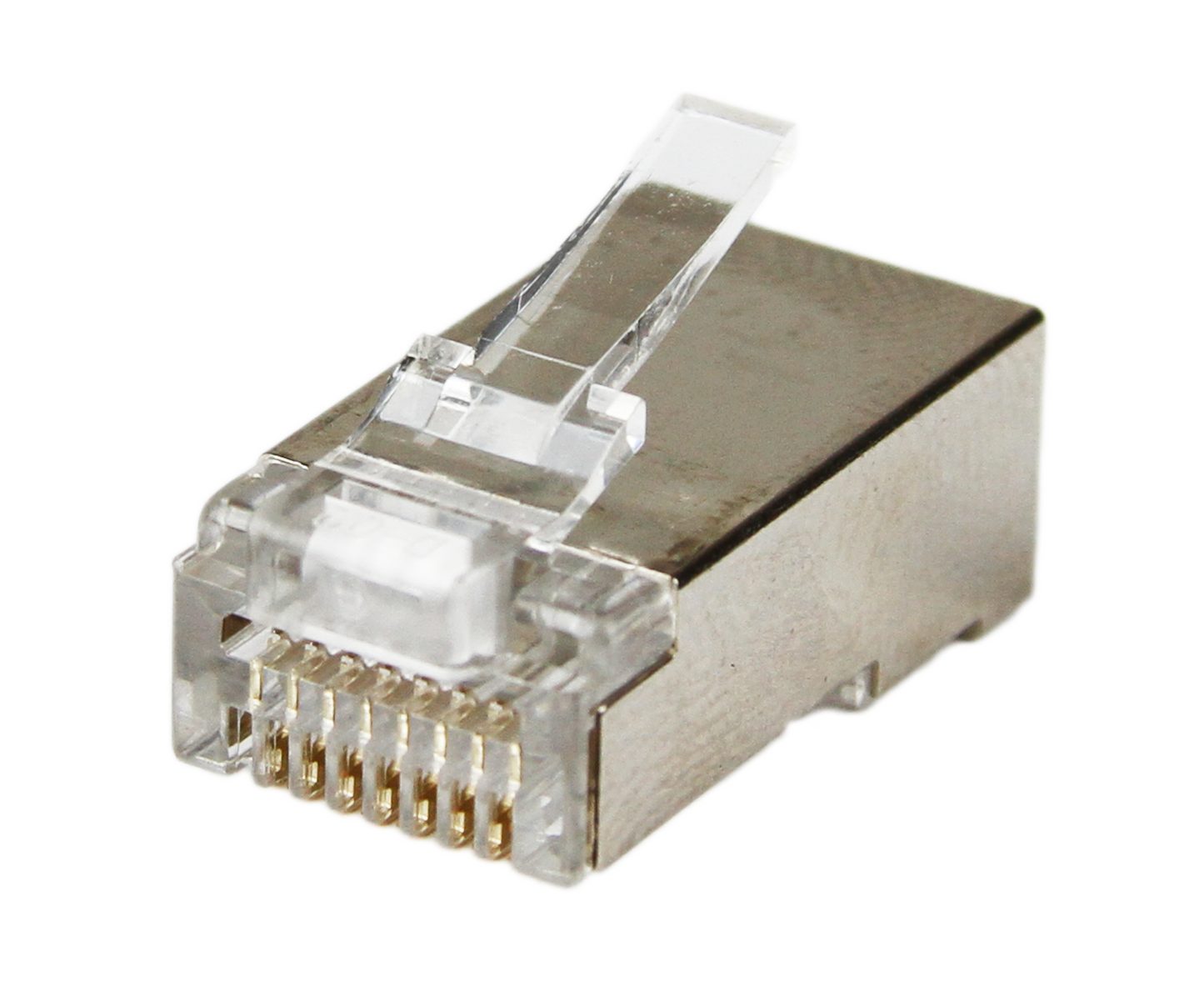

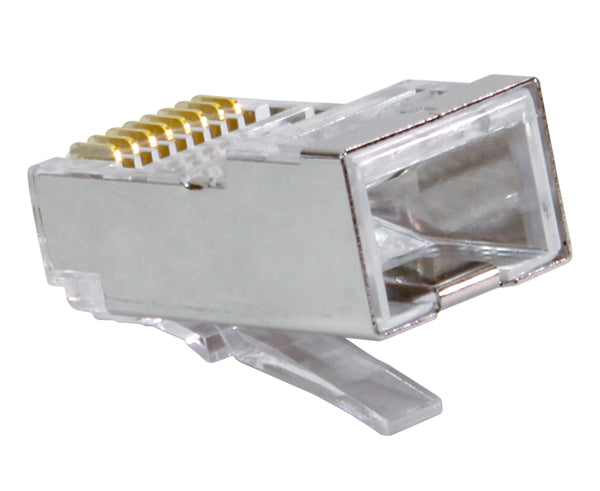

Easy Feed Shielded RJ45 Connector - CAT5e, 6 Cable

$22.25
SKU: CN1-7906-Z5S
Package Quantity
Style

Description

Former Part Number: CN1-6789-Z6S

What is Easy Feed?

The Shielded Easy Feed / pass through RJ45 CAT6 connector is the must have connector for all datacom and telecom installers. This RJ45 modular plug saves time and money with it's simple easy to use design.

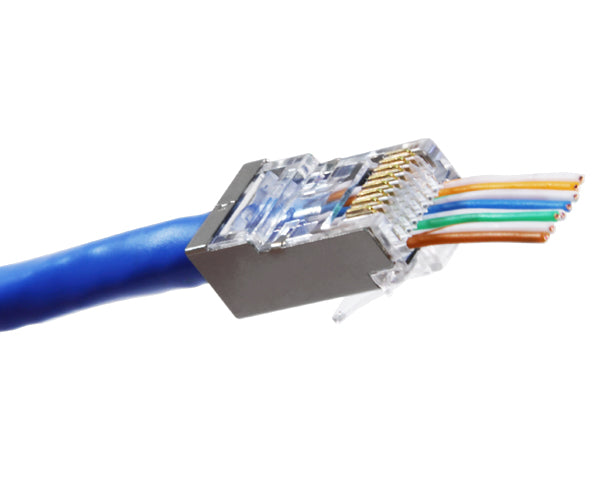

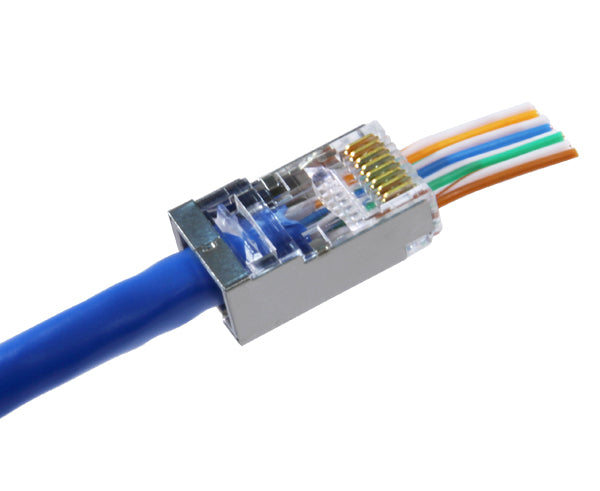

Installers can simply slide all the conductors through the jack at once making it clear to verify proper wire alignment before termination. These ethernet connectors place the twisted wires pairs straight inline to one another and prevent staggering.

Why Shield Your Network?

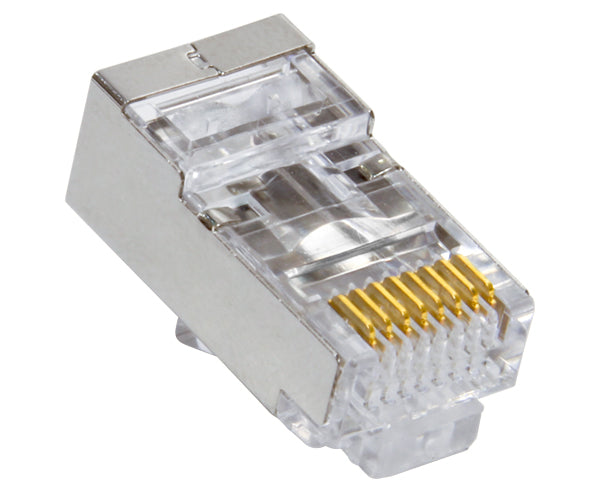

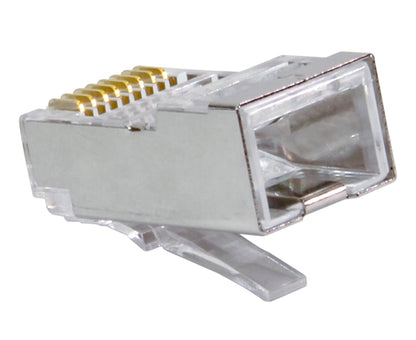

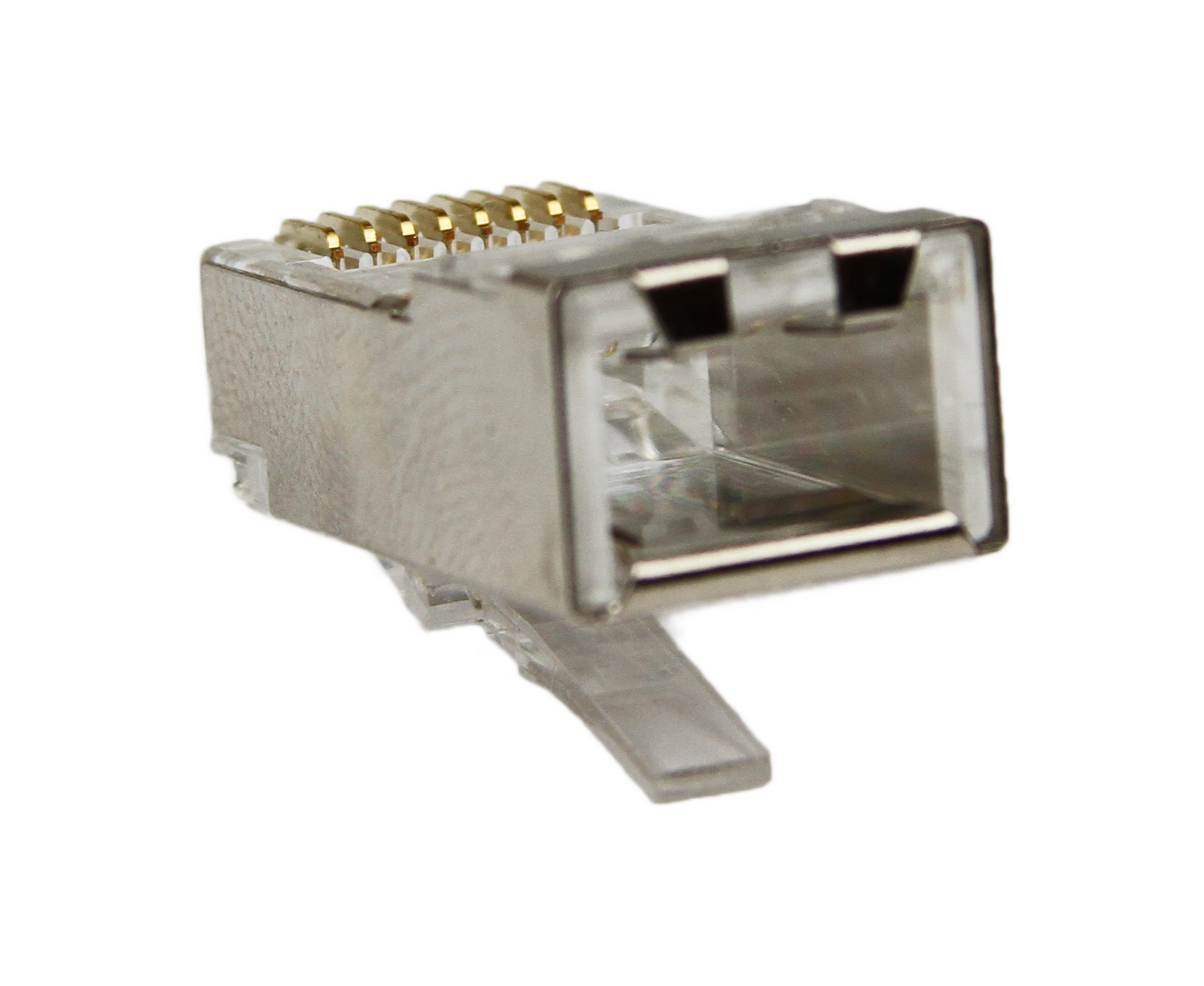

The shielding is wrapped completely around the back of the Modular plug ensuring the drain wire will stay grounded. Shielding prevents unwanted crosstalk and EMI to maximize transfer speeds.

Connectivity is vital when installing a network so be sure to get these quality modular plugs on all your CAT5e, CAT6 Shielded Cables.

Looking For RJ45 Accessories?

Please consider us for any of your other networking needs. We've got bulk cable, many styles of keystone jacks, and other items. Keep in mind, you're going to need a crimping tool, and we've got em. Thank You.

Parts of a RJ45 connector diagram

Features

Features

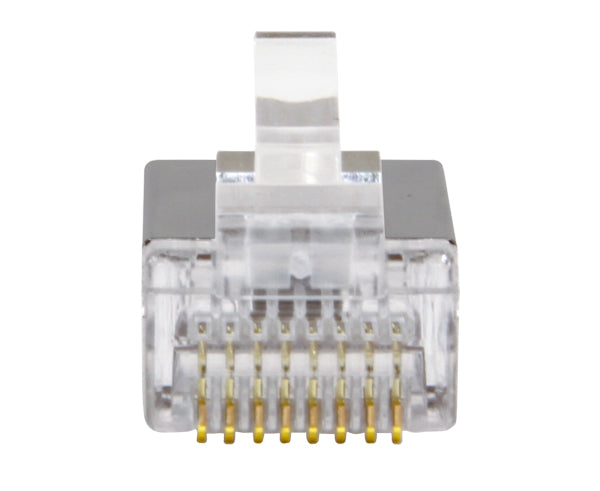

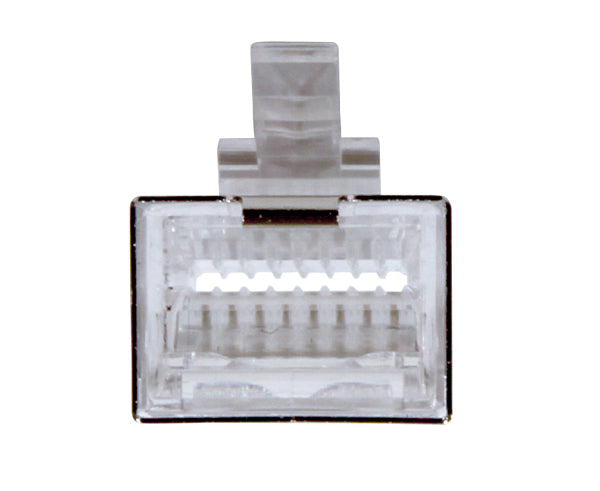

  • Pass through CAT6 8x8 shielded RJ45 modular plug
  • For round solid or stranded cable
  • Compatible with 26 - 23 AWG cables (OD under 6.5mm)
  • 50 micro-inch gold plated contacts
  • Wires inserted through front of connector
  • Strain relief bar secures connector around cable
  • Faster terminations with reduced scrap
  • Simple one-piece design
  • UL rated
  • Transparent housing for easy conductor alignment
  • Copper alloy shielding
  • Operation temperature: -20° - +50°C
  • Fits an insulation diameter of 0.93mm - 1.04mm

Specifications

Termination Guide

RJ45 Termination Guide: Step by step walkthrough for terminating connectors.

RJ45 Termination Guide: Step by step walkthrough for terminating connectors.

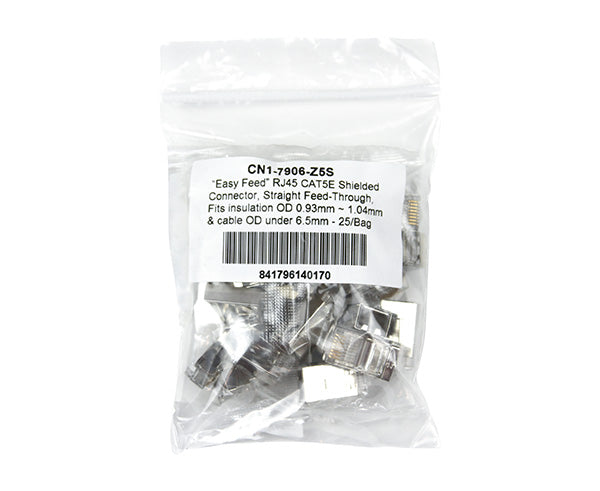

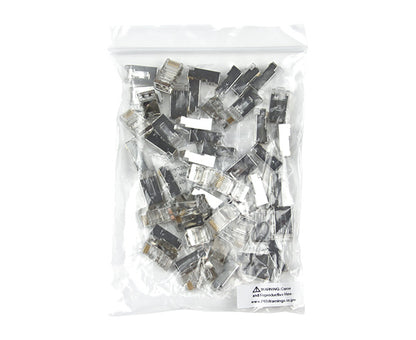

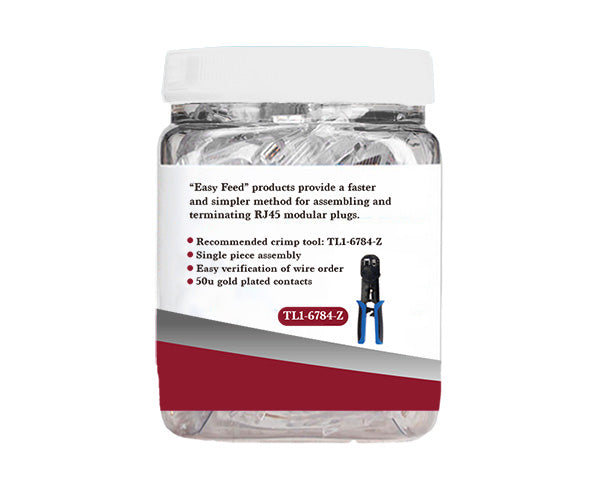

What's in the box?

What's in the box?

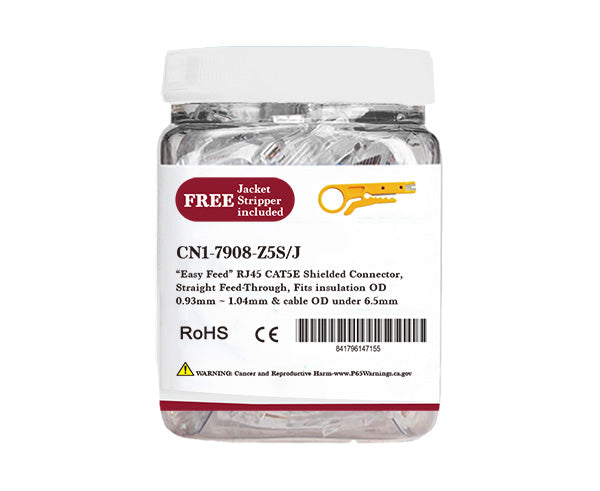

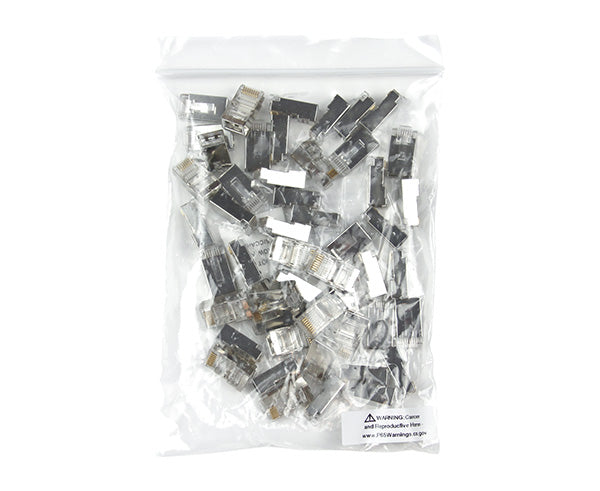

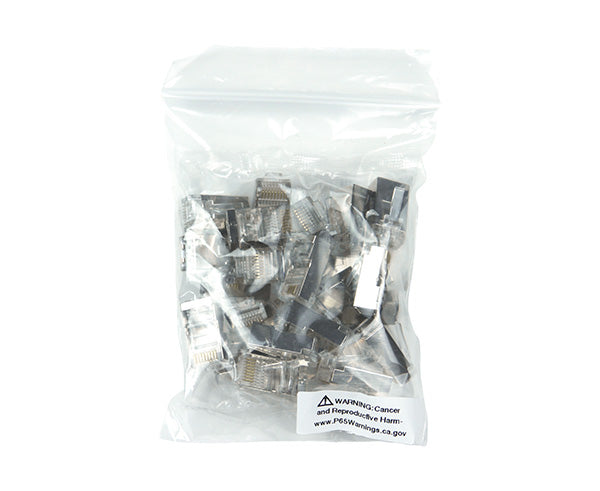

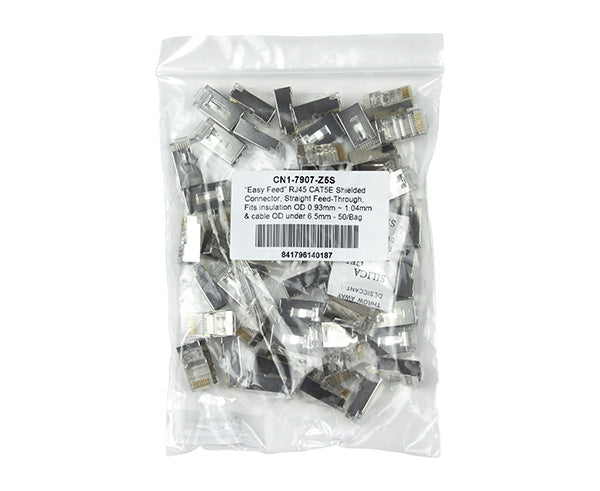

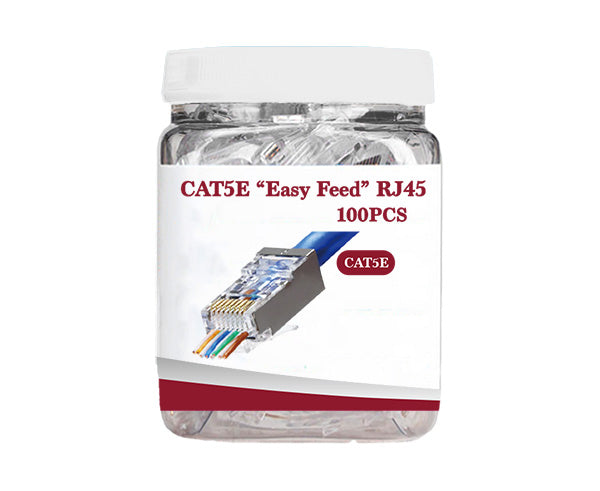

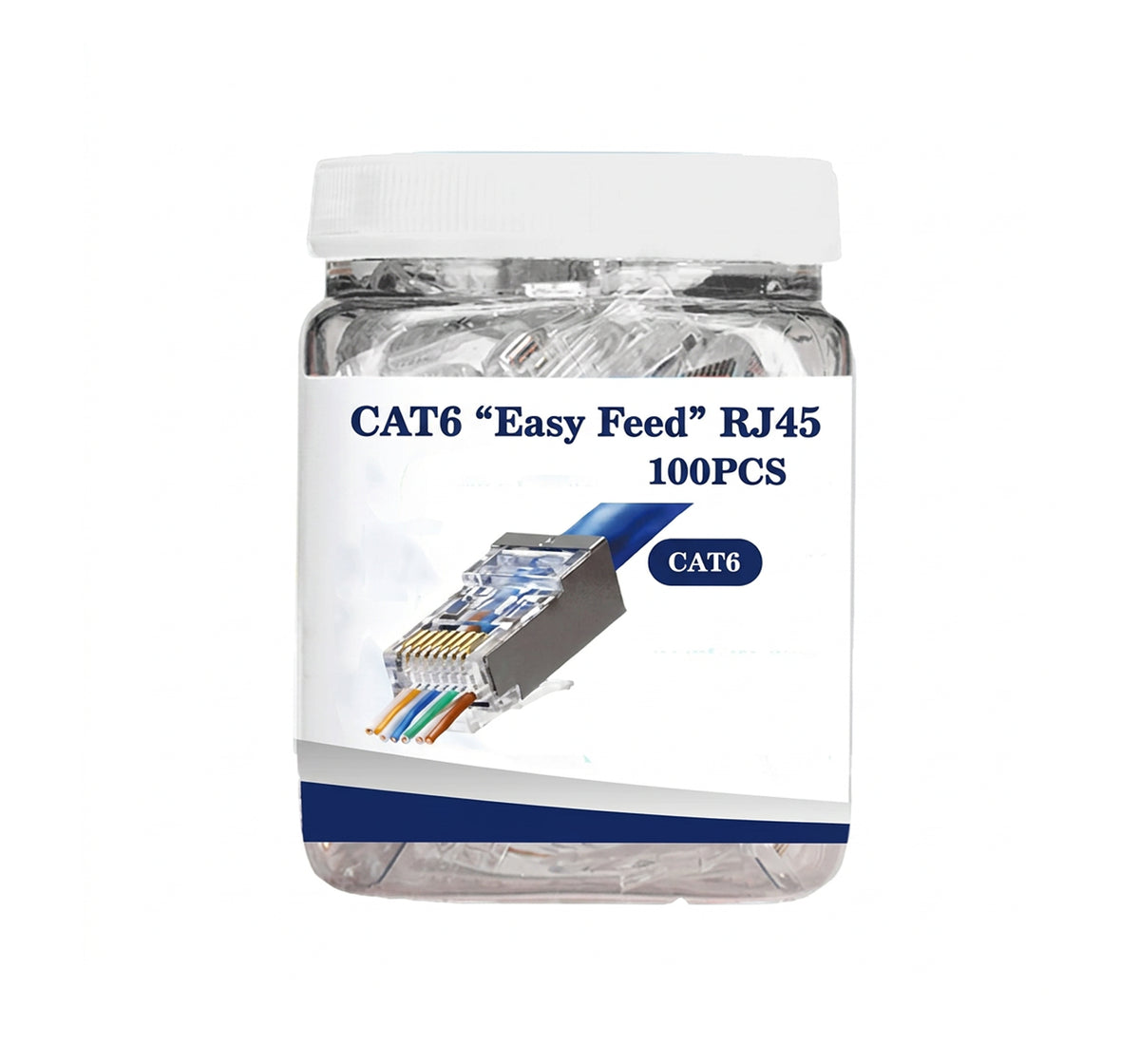

  • Qty 1 (25 Pack, 50 Pack, and/or 100 Pack) - Easy Feed Shielded RJ45 Connector CAT5e or CAT6
