Simplex Plenum Fiber Optic Cable, Multimode 10 Gig OM3, Corning Fiber, Indoor
(We do not offer credits or returns for this item.)
Minimum and Maximum Order Lengths for Non-Freight Shipments:
|Min.||1,000ft. (304m)||3,500ft. (1067m)||3,250ft. (991m)|
|Max.||13,000ft. (3962m)||16,900ft. (4876m)||16,000ft. (4876m)|
Note: To request a quote email us or give us a call.
If you would like to inquire about our custom fiber cable options such as longer lengths, custom cut lengths, terminated ends, or pulleyes please call or email us.

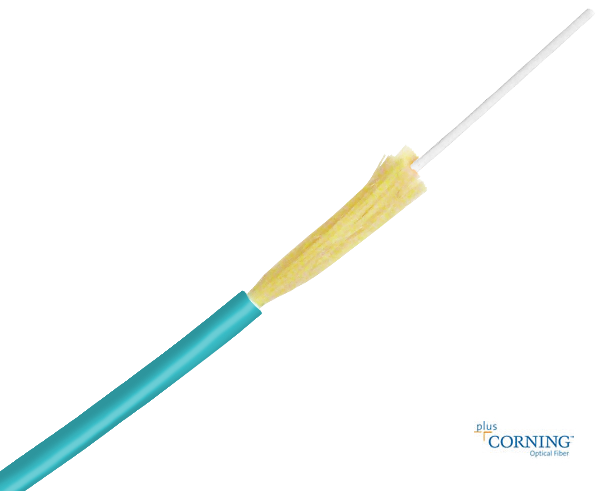

Simplex Fiber Optic Cable, Multimode, 50/125 10 Gig OM3, Corning Fiber, Indoor, Plenum OFNP
Simplex Plenum OM3 MultiMode 50/125 Fiber Cable is composed of a tight buffer, aramid yarn, and a PVC outer jacket. All component materials meet the EU RoHS and REACH Directive standards.
These plenum simplex fiber cables are available in 12 TIA standard colors or special order colors. The fiber cable is UL Listed OFNP for use in ducts, plenums and air-handling spaces. Standard surface print denotes construction, NEC rating, and fiber type, and includes footage markers. Available outer diameter sizes inculde 3 mm, 2 mm, 1.8 mm and 1.6 mm.
- 3 mm, 2 mm, 1.8 mm & 1.6 mm OD sizes to meet all patch cord applications.
- Consistent 3.5lbs - 5lbs pull force for easy strip-ability.
- Patch cord production.
- Data centers.
- Indoor point to point connections.
- Storage Temperature: -40ºC to +70ºC
- Operating Temperature: -20ºC to +70ºC
- Fiber Count: 1
- Outer Jacket Material: Flame Retardant PVC
- Outer Jacket Color: Aqua
- Strength Member: Aramid Yarn
- Tight Buffer Material: Flame Retardant PVC
- Tight Buffer Color: White
- Nominal Outer Diameter
- 3 mm
- 2 mm
- 1.80 mm
- 1.60 mm
- Minimum Bend Radius (Bend Insensitive MM): 7.5 mm
- Core Size: 50 um
- Wavelength: (850/ 1300) nm
- Max. Attenuation: (3.5/ 1.5) dB/ km
- Bandwidth (EMB) (High Performance): 2000 MHz @850nm
- Link Length (10GB/s): 150 Meters
Multi-Mode cable commonly has a diameter in the 50-to-100 micron range (typical multimode fiber core diameters are 50 or 62.5 micrometers). Multimode fiber gives you high bandwidth at high speeds (10 to 100MBS - Gigabit to 275m to 2km) over medium distances. Light waves are dispersed into numerous paths, or modes, as they travel through the cable's core typically 850 or 1300nm. However, in long cable runs (greater than 3000 feet [914.4 meters), multiple paths of light can cause signal distortion at the receiving end, resulting in an unclear and incomplete data transmission so designers now call for single mode fiber in new applications using Gigabit and beyond.
