VW8 Series Wall Mount Cabinet – Compact, Secure & Versatile Equipment Storage
The VW8 Series Wall Mount Cabinet is a space-saving, heavy-duty solution designed for small network, security, or A/V installations. With an 18" depth, it’s ideal for environments where space is limited but reliable equipment storage is essential. This cabinet ships flat-packed for reduced shipping costs and features a durable design that supports up to 132 lbs. Removable side panels and a reversible front door offer quick, flexible access for installation and maintenance.
Features
Features
- Removable and Reversible Locking Front Door with 180° Swing (Available in Steel Mesh or Tempered Glass)
- Top and bottom panel each have a knock-out type cable entry holes
- Adjustable mounting rails can accommodate a wide range of equipment depths
Specifications
Specifications
| Document | Description | Download |
|---|---|---|
| Spec Sheet | Product overview and specifications | |
| Product Manual | Wall Mount Cabinet Product Manual | |
| 6U Tech Drawing | 6U w/ Glass Front Door | |
| 9U Tech Drawing | 9U w/ Glass Front Door | |
| 12U Tech Drawing | 12U w/ Glass Front Door | |
| 12U Tech Drawing | 12U w/ Mesh Front Door | N/A |
| Product Type | Fixed Wall Mount Cabinet |
| Frame Material | 19 Gauge Cold Rolled Steel (1.0mm) |
| Finish | Black Powder Coat |
| Rack Unit Quantity | 6U, 9U, or 12U |
| Dimensions (HxWxD) - 6U | 14.6” H x 22.4” W x 17.7” |
| Dimensions (HxWxD) - 9U | 19.7” H x 22.4” W x 17.7” |
| Dimensions (HxWxD) - 12U | 25.0” H x 22.4” W x 17.7” |

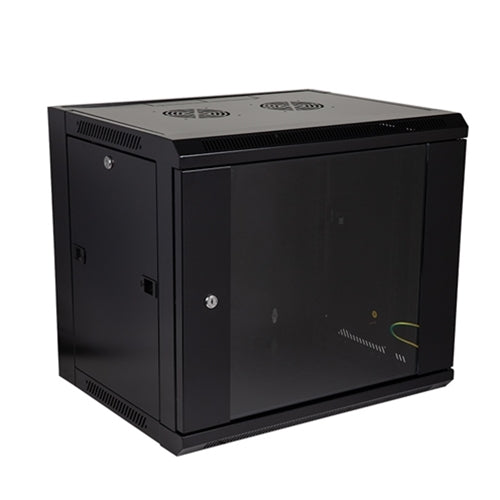

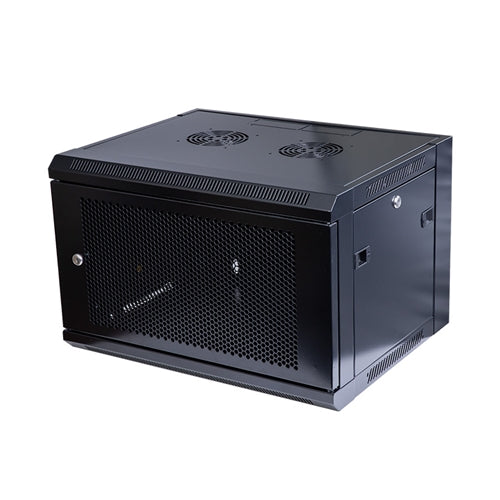

| Front Door | Removable and Reversible Locking Front Door with 180° Swing (Available in Steel Mesh or Tempered Glass) |

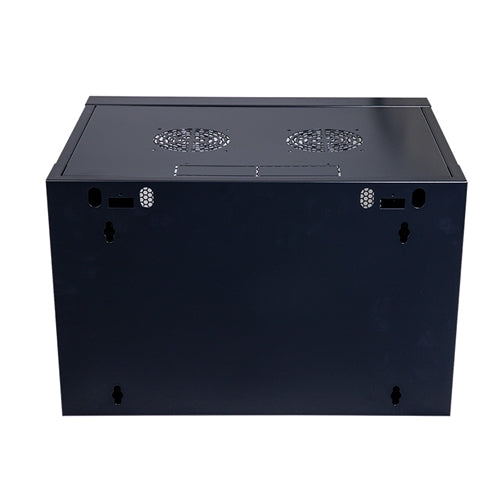

| Rear Panel | Wall Mounting Keyholes Spaced 16.0” Apart |
| Side Panels | Full Height, Lockable, and Removable |
| Top Panel | Optional Fans and Knock-Out Type Cable Entry Holes |
| Bottom Panel |
Knock-Out Type Cable Entry Holes |
| Equipment Support |
(2) Mounting Rails, 1.75” RU Spacing 19” W, EIA-310-D Universal Hole Spacing |
| Grounding |
14 AWG Ground Wire Connects Door To Cabinet Frame |
| Static Loading Capacity |
132 lbs |
| Included Accessories |
(10) 10-32 Mounting Screws with (20) Washers, (3) Keys, (1) Grounding Wire Kit |
| Compliance & Standards |
RoHS, ANSI/EIA RS-310D, IEC60297-2, DIN41494: Part 1, DIN41494: Part 7 |
Additional Information
Additional Information
Security & Protection
- Locking doors and side panels prevent unauthorized access to equipment
- Doors is grounded to the cabinet frame
Flexibility
- Top panel is stamped for the addition of two fans

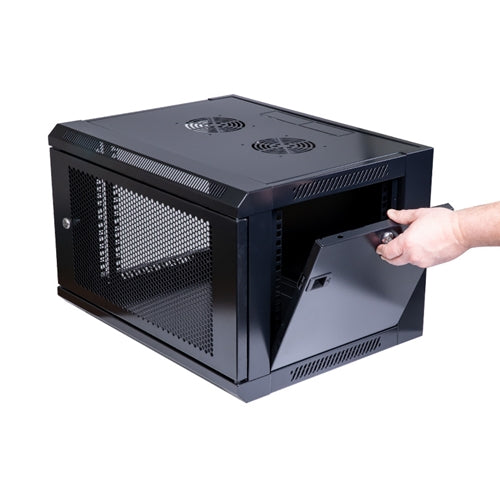

- Doors and side panels are removable for convenient access to equipment
Multi-Use
- Adaptable for use in network, security and audio/video installations
What's in the box
What's in the box
- Qty 1 - Package of Fixed Wall Mount Cabinet
- Qty 48 - 10-32 Mounting Screws & Washers
- Qty 1 - Grounding Kit
- Qty 1 - Paper Mounting Template
- Qty 3 - Keys
