Description
Singlemode Fiber Optic Launch Cable, 1000 m, SC/APC-SC/UPC

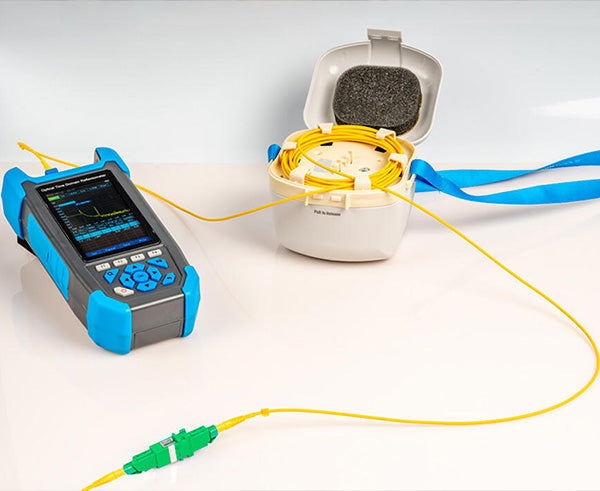

Designed with unique compact housing and 1000 meters of fiber, this launch cable is perfect for eliminating dead zones in reflectometric tests using an OTDR.
Features
Features

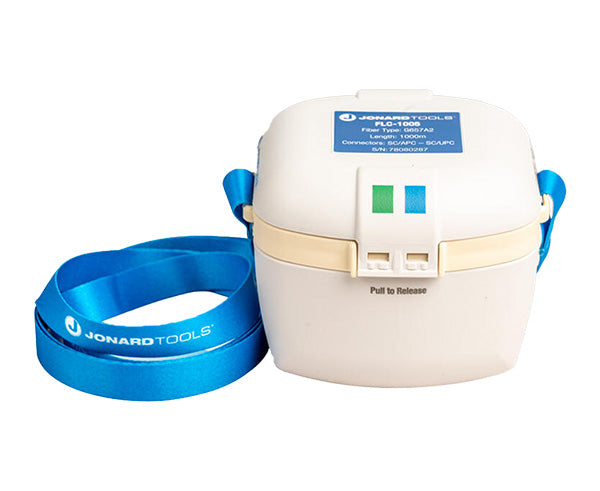

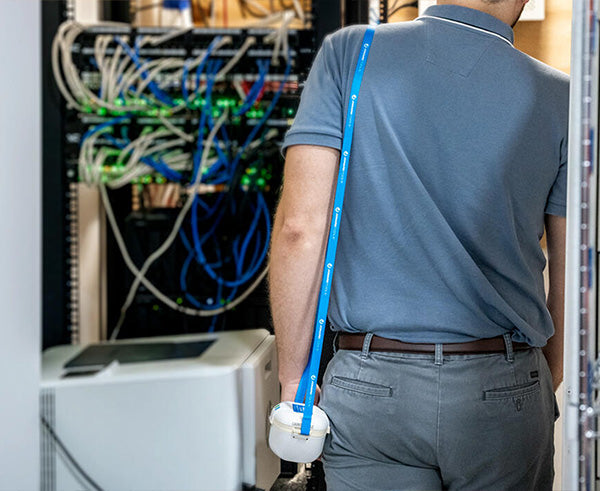

- Compact housing and shoulder strap make this perfect for on-the-go use
- 6.56 ft (2 m) long pigtails are terminated with an SC/UPC connector on one side and an LC/UPC connector on the other side for versatility

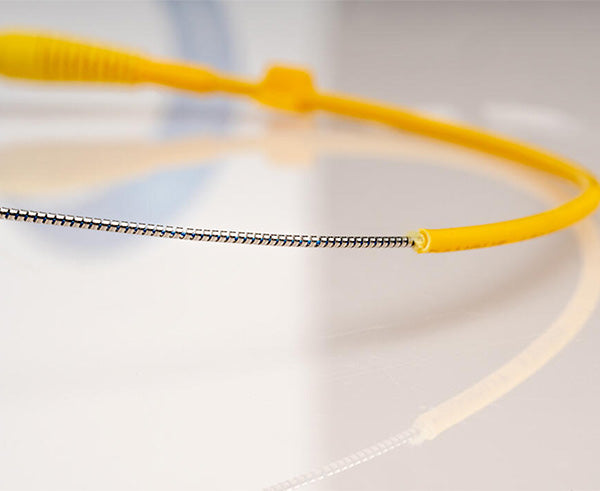

- Steel, interlocked armor under the fiber jacket protects the fiber from accidental damage
- Polishing types are color coded for quick and easy identification of the launch cable

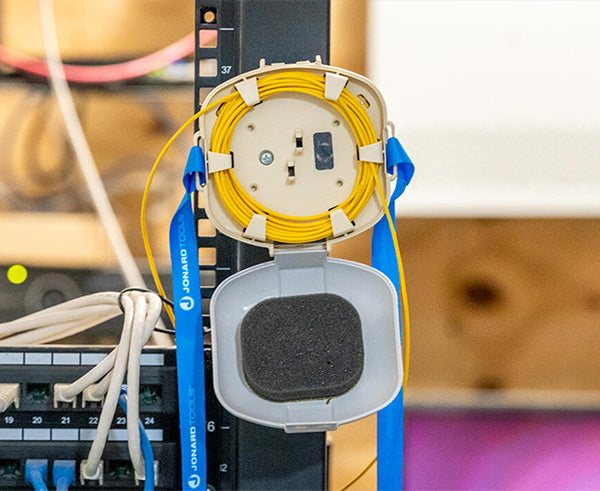

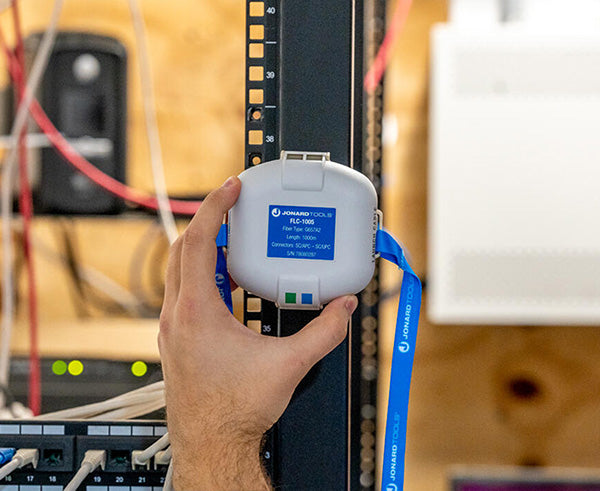

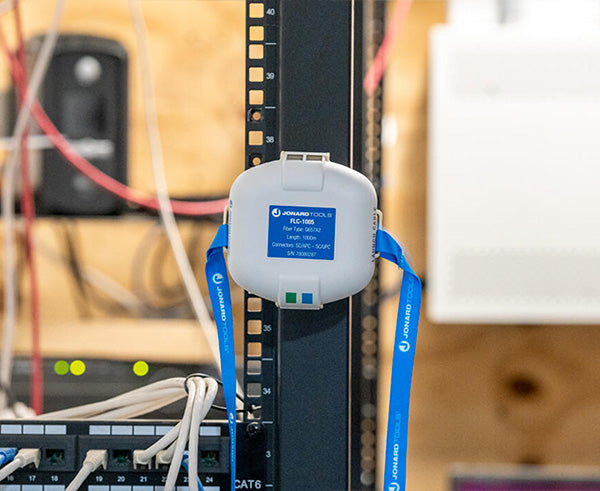

- Convenient magnet on bottom of housing allows for quick and easy mounting to fiber racks
- 3281 ft (1000 m) length of fiber is perfect for most OTDR testing applications
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| CABLE LENGTH | 3281 FT (1000 M) |
| CONNECTOR TYPES | SC/APC, LC/UPC |
| INPUT/OUTPUT LENGTH | 4.9 FT (1.5 M) |
| MAX INSERTION LOSS @ 1310 NM | ≤ 0.35 DB/KM |
| MAX INSERTION LOSS @ 1550 NM | ≤ 0.22 DB/KM |
| MAX INSERTION LOSS @ 800 NM | ≤ 2.50 DB/KM |
| MAX INSERTION LOSS @ 1300 NM | ≤ 0.70 DB/KM |
| SM CONNECTOR INSERTION LOSS | ≤ 0.1 DB |
| MM CONNECTOR INSERTION LOSS | ≤ 0.15 DB |
| RETURN LOSS | RL ≥ 65 DB (APC); RL ≥ 55 DB (UPC) |
| FIBER TYPE | G657A2 |
| LENGTH | 3281 FT (8333.74 CM) |
| WEIGHT | 0.78 LB (354.12 G) |
| UPC # | 810053351888 |
Additional Information
| PRODUCT VIDEO | |
|---|---|
Jonard Tools Fiber Optic Launch Cables (FLC-1001 & FLC-1005) Product Video |
Choosing The Right Fiber Launch Cable from Jonard Tools! |
What's In The Box
What's In The Box
- Qty 1 - Singlemode Fiber Optic Launch Cable, 1000 m, SC/APC-SC/UPC
