Description
Singlemode Fiber Optic Launch Cable, 1000m, SC/UPC-LC/APC

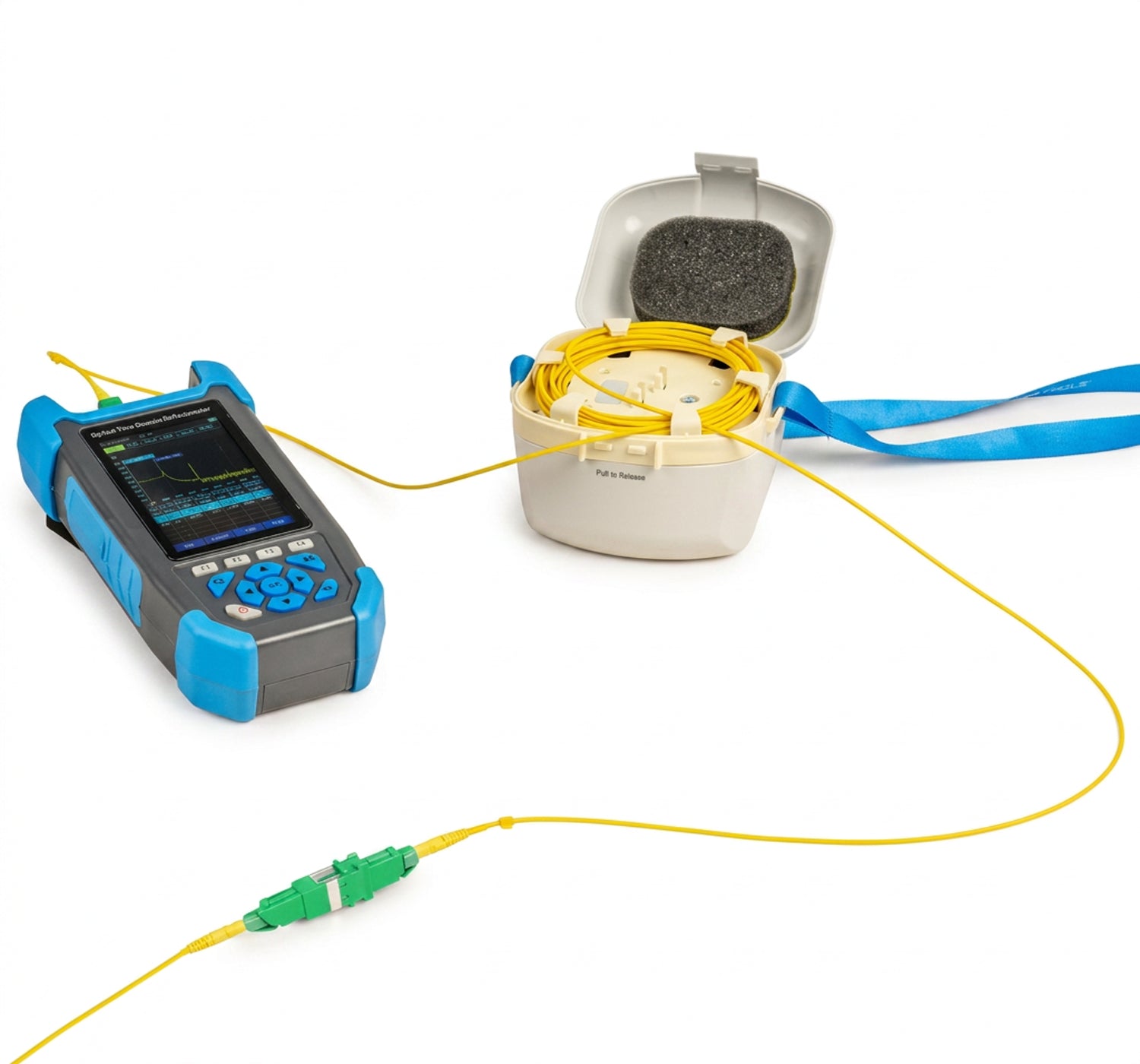

Designed with unique compact housing and 1000 meters of fiber, this launch cable is perfect for eliminating dead zones in reflectometric tests using an OTDR.
Features
Features

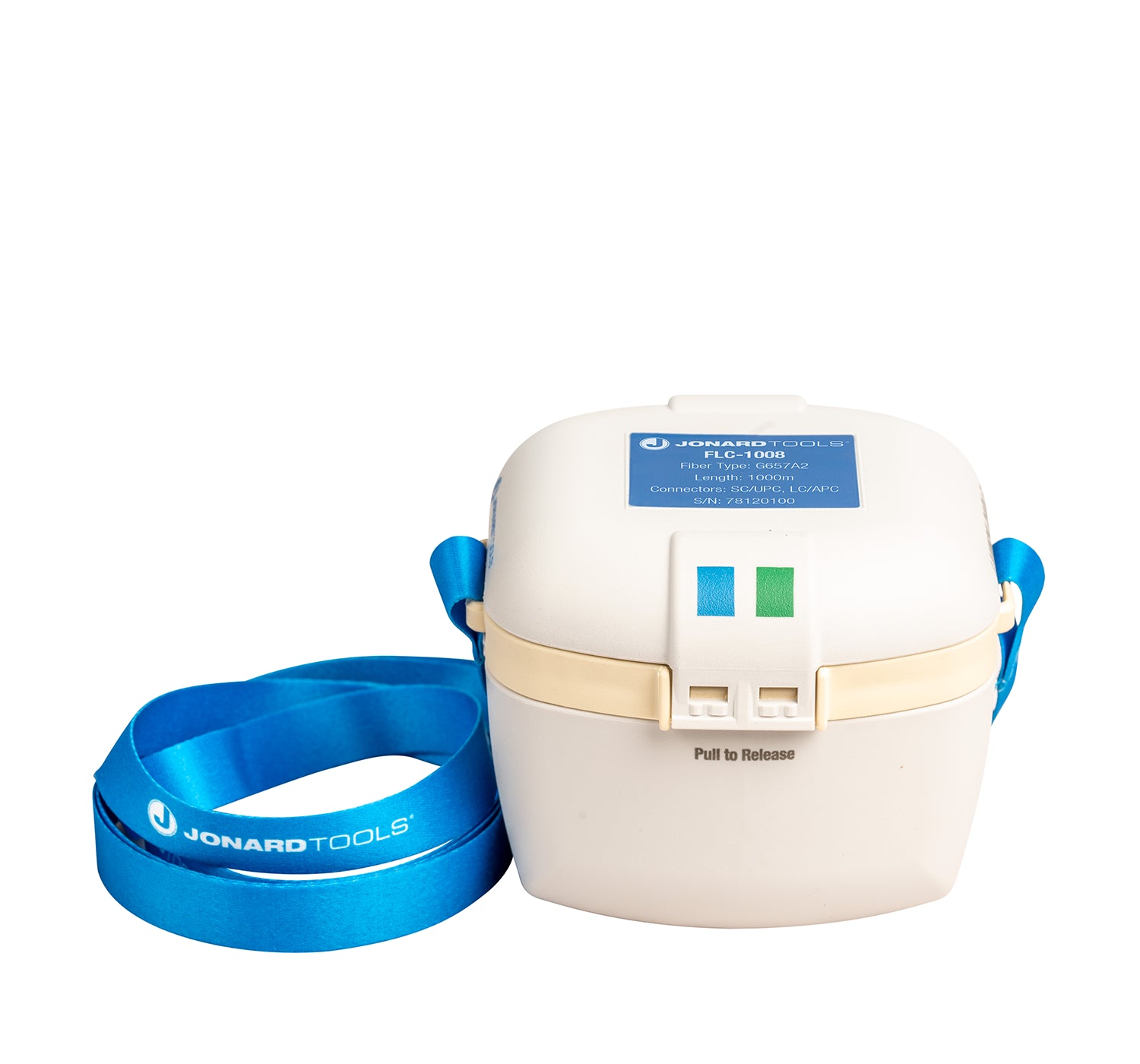

- Compact housing and shoulder strap make this perfect for on-the-go use
- 6.56 ft (2 m) long pigtails are terminated with an SC/UPC connector on one side and an LC/APC connector on the other side for versatility
- Polishing types are color coded for quick and easy identification of the launch cable

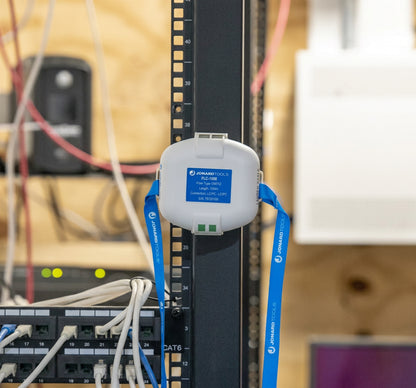

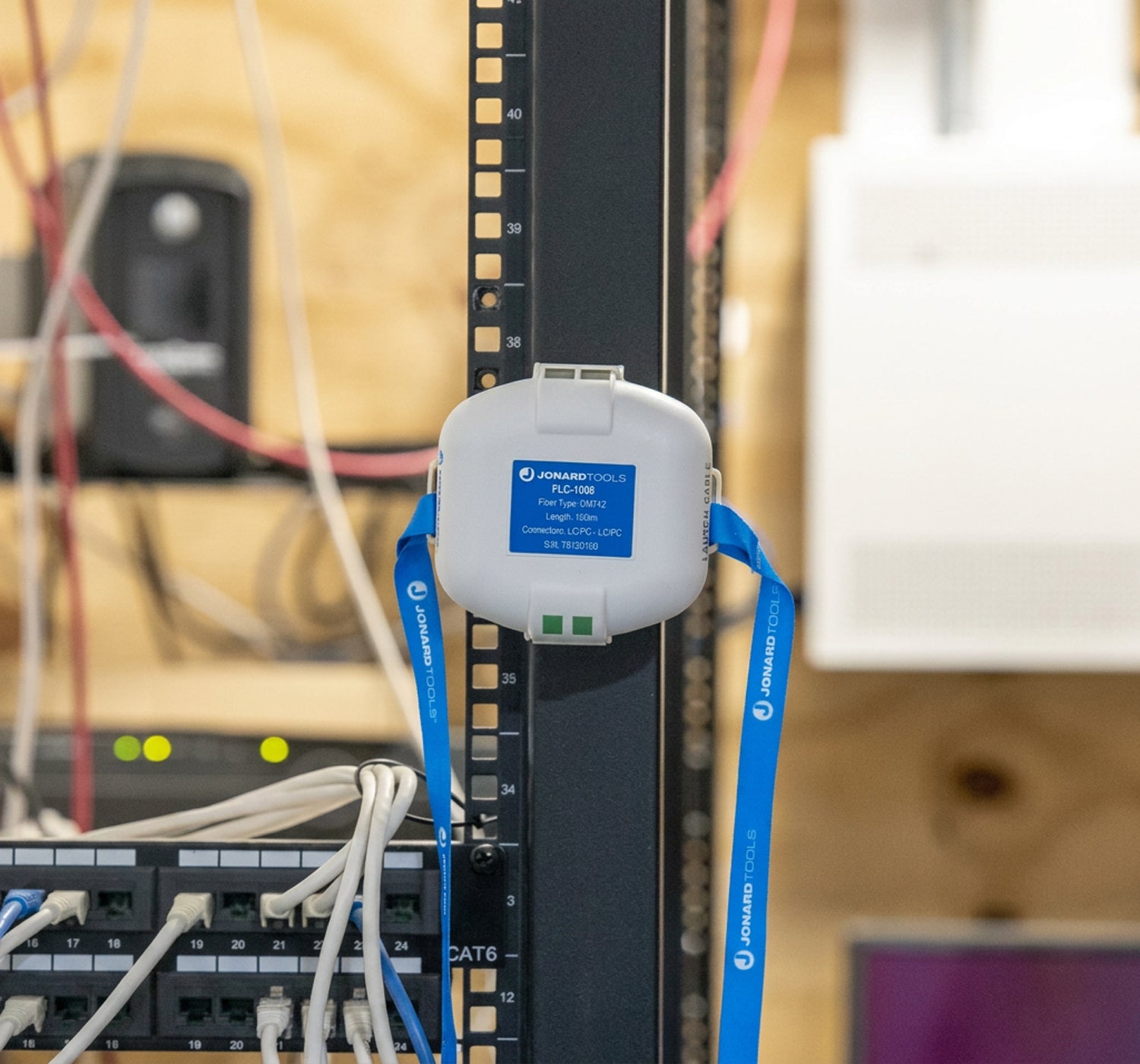

- Convenient magnet on bottom of housing allows for quick and easy mounting to fiber racks
- 3281 ft (1000 m) length of fiber is perfect for most OTDR testing applications
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| CABLE LENGTH | 3280.84 FT (1000 M) |
| CONNECTOR TYPES | SC/UPC, LC/APC |
| INPUT/OUTPUT LENGTH | 4.9 FT (1.5 M) |
| MAX INSERTION LOSS @ 1310 NM | ≤ 0.35 DB/KM |
| MAX INSERTION LOSS @ 1550 NM | ≤ 0.22 DB/KM |
| MAX INSERTION LOSS @ 800 NM | ≤ 2.50 DB/KM |
| MAX INSERTION LOSS @ 1300 NM | ≤ 0.70 DB/KM |
| SM CONNECTOR INSERTION LOSS | ≤ 0.1 DB |
| MM CONNECTOR INSERTION LOSS | ≤ 0.15 DB |
| RETURN LOSS | ≥ 65 DB |
| FIBER TYPE | G657A2 |
| DIMENSIONS | 3.9" X 3.9" X 3.30" (9.91 CM X 9.91 CM X 8.38 CM) |
| WEIGHT | 0.61 LB (276.7 G) |
| UPC # | 810132438257 |
Additional Information
| Product Videos | |
|---|---|
CHOOSING THE RIGHT FIBER LAUNCH CABLE (NEW)! |
What's In The Box
What's In The Box
- Qty 1 - Singlemode Fiber Optic Launch Cable, 1000m, SC/UPC-LC/APC
