Singlemode Fiber Optic Launch Cable, 20 m, SC/APC-SC/APC

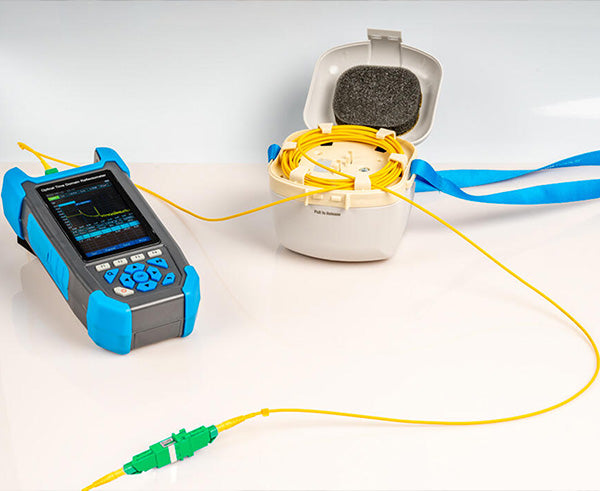

Designed with unique compact housing and 20 meters of fiber, this launch cable is perfect for eliminating dead zones in reflectometric tests using an OTDR.
Features
Features

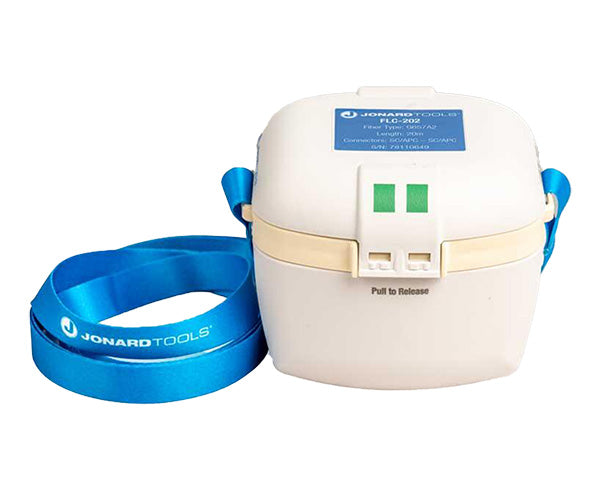

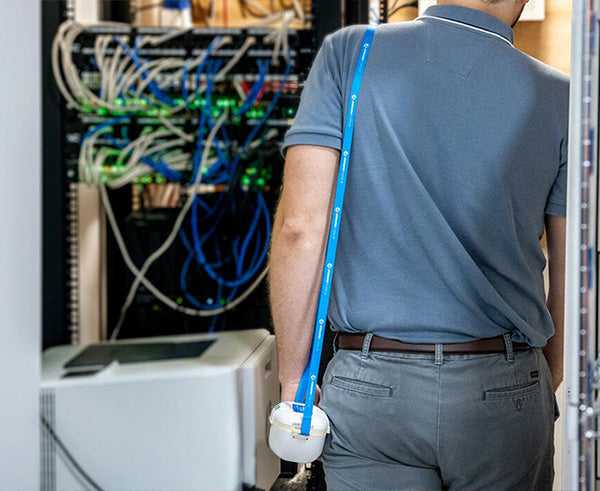

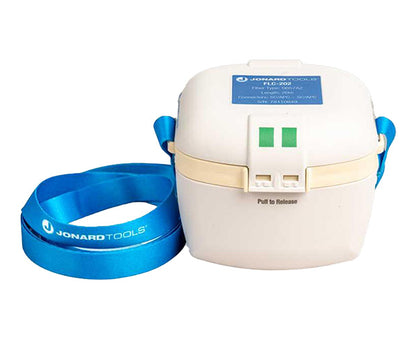

- Compact housing and shoulder strap make this perfect for on-the-go use
- Terminated with an SC/UPC connector on one side and an SC/APC connector on the other side for versatility

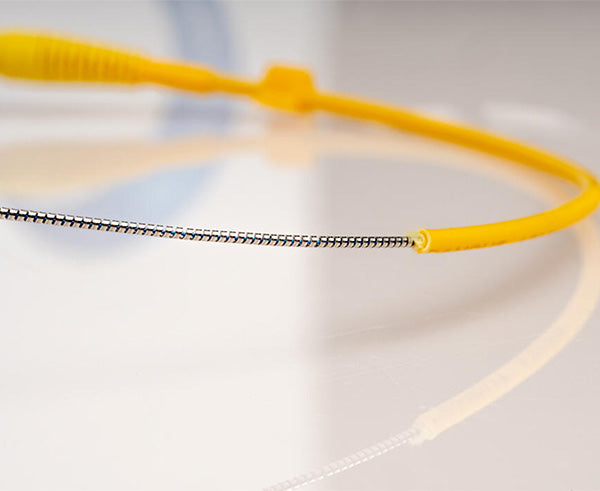

- Steel, interlocked armor under the fiber jacket protects the fiber from accidental damage
- Polishing types are color coded for quick and easy identification of the launch cable

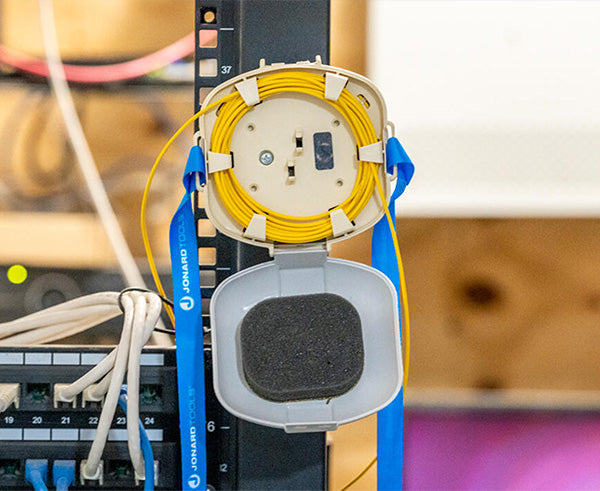

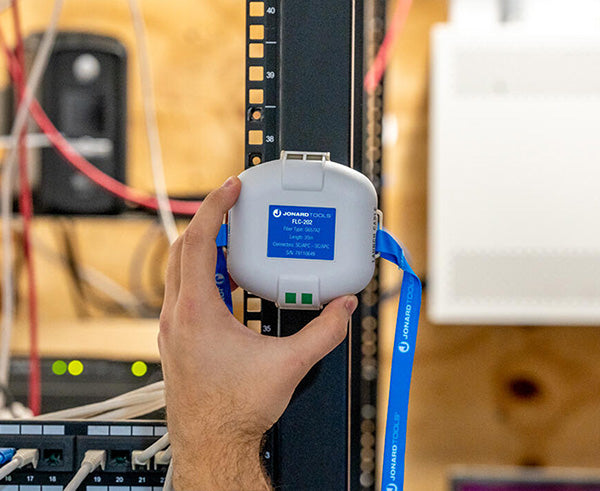

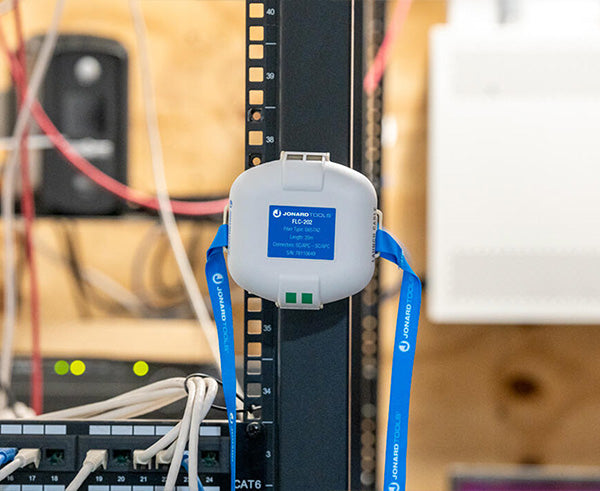

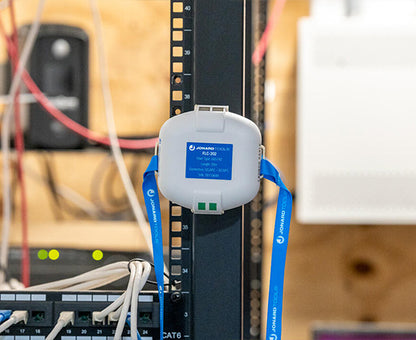

- Convenient magnet on bottom of housing allows for quick and easy mounting to fiber racks
- 65.6 ft (20 m) length of fiber is perfect for most OTDR testing applications
Specifications
Specifications
| PRODUCT SPECIFICATIONS | |
| Cable Length | 65.62 ft (200 m) |
| Connector Types | SC/APC, SC/APC |
| Input/Output Length | 4.9 ft (1.5 m) |
| Max Insertion Loss @ 1310 nm | ≤ 0.35 dB/km |
| Max Insertion Loss @ 1550 nm | ≤ 0.22 dB/km |
| Max Insertion Loss @ 800 nm | ≤ 2.50 dB/km |
| Max Insertion Loss @ 1300 nm | ≤ 0.70 dB/km |
| SM Connector Insertion Loss | ≤ 0.1 dB |
| MM Connector Insertion Loss | ≤ 0.15 dB |
| Return Loss | RL ≥ 65 dB (APC); RL ≥ 55 dB (UPC) |
| Fiber Type | G657A2 |
| Dimensions | 3.75 in x 3.75 in x 3.46 in (9.53 cm x 9.53 cm x 8.79 cm) |
| Weight | 0 lb (0 g) |
| UPC # | 810053352311 |
Additional Information
Additional Information
Jonard Tools Fiber Optic Launch Cables (FLC-1001 & FLC-1005) Product Video |
Choosing The Right Fiber Launch Cable from Jonard Tools! |
What's In The Box?
What's In The Box?
- Qty 1 - Singlemode Fiber Optic Launch Cable, 20 m, SC/APC-SC/APC
