Singlemode Fiber Optic Launch Cable, 350 m, SC/UPC-SC/APC

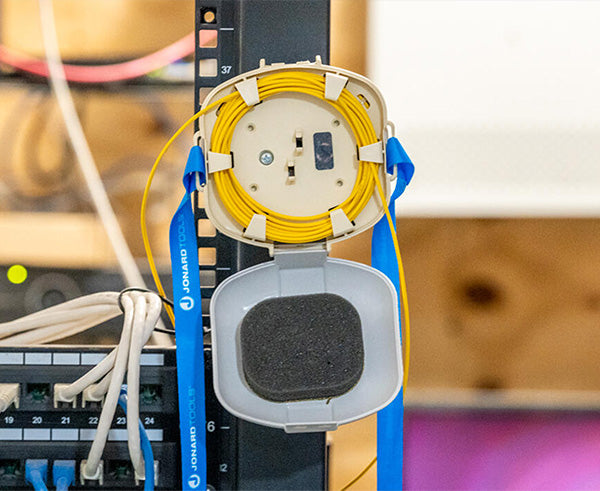

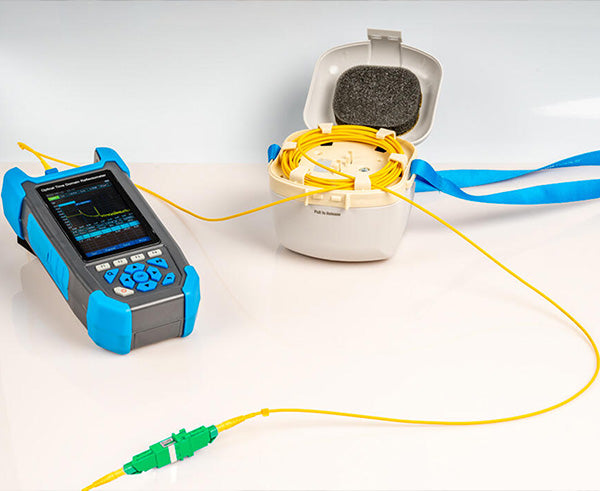

Designed with unique compact housing and 350 meters of fiber, this launch cable is perfect for eliminating dead zones in reflectometric tests using an OTDR.
Features
Features

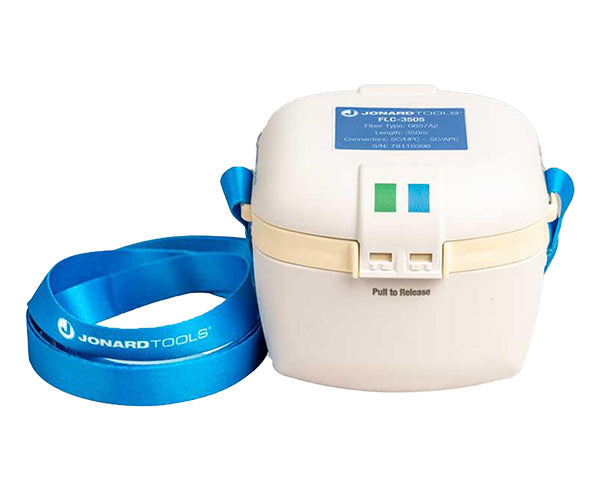

- Compact housing and shoulder strap make this perfect for on-the-go use
- Terminated with an SC/UPC connector on one side and an SC/APC connector on the other side for versatility

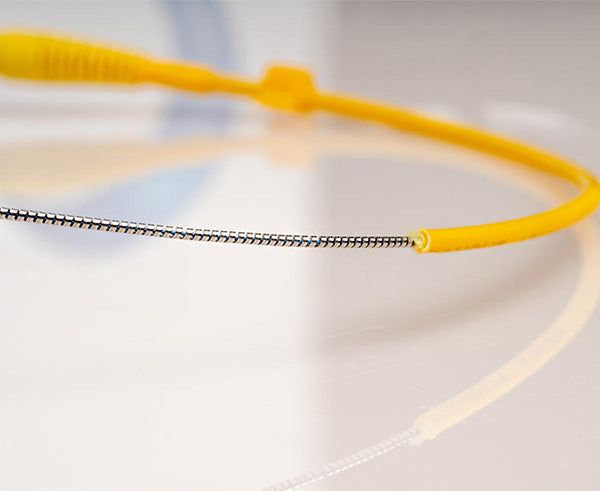

- Steel, interlocked armor under the fiber jacket protects the fiber from accidental damage
- Polishing types are color coded for quick and easy identification of the launch cable

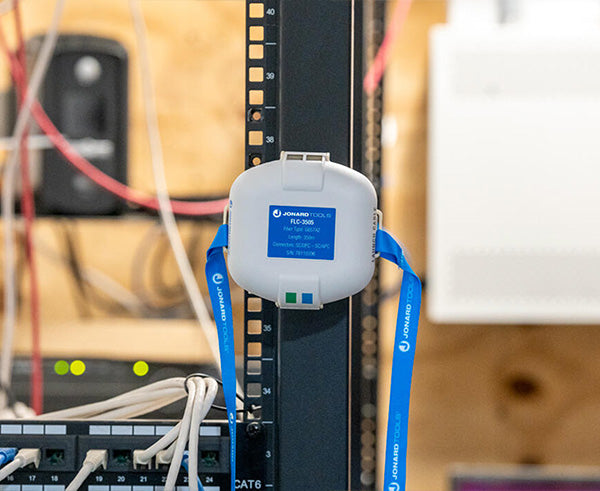

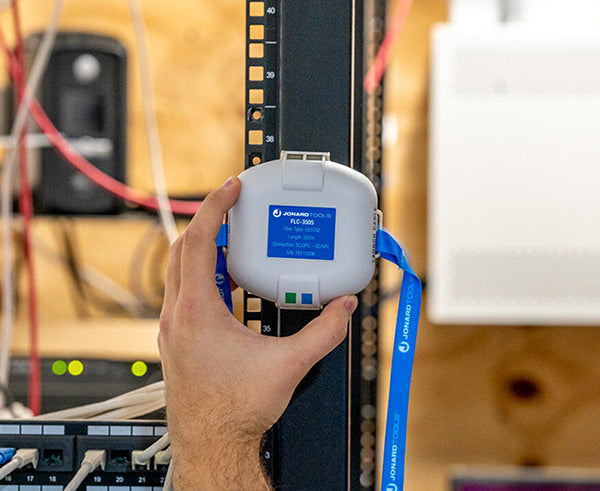

- Convenient magnet on bottom of housing allows for quick and easy mounting to fiber racks
- 1148 ft (350 m) length of fiber is perfect for most OTDR testing applications
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| CABLE LENGTH | 1148.29 FT (350 M) |
| CONNECTOR TYPES | SC/UPC, SC/APC |
| INPUT/OUTPUT LENGTH | 4.9 FT (1.5 M) |
| MAX INSERTION LOSS @ 1310 NM | ≤ 0.35 DB/KM |
| MAX INSERTION LOSS @ 1550 NM | ≤ 0.22 DB/KM |
| MAX INSERTION LOSS @ 800 NM | ≤ 2.50 DB/KM |
| MAX INSERTION LOSS @ 1300 NM | ≤ 0.70 DB/KM |
| SM CONNECTOR INSERTION LOSS | ≤ 0.1 DB |
| MM CONNECTOR INSERTION LOSS | ≤ 0.15 DB |
| RETURN LOSS | RL ≥ 65 DB (APC); RL ≥ 55 DB (UPC) |
| FIBER TYPE | G657A2 |
| DIMENSIONS | 3.8 IN X 3.8 IN X 3.5 IN (9.65 CM X 9.65 CM X 8.89 CM) |
| WEIGHT | 0 LB (0 G) |
| UPC # | 810053352304 |
Additional Information
| Product Videos | |
|---|---|
CHOOSING THE RIGHT FIBER LAUNCH CABLE |
FIBER OPTIC LAUNCH CABLES (FLC-1001 & FLC-1005) |
What's In The Box
What's In The Box
- Qty 1 - Singlemode Fiber Optic Launch Cable, 350 m, SC/UPC-SC/APC
