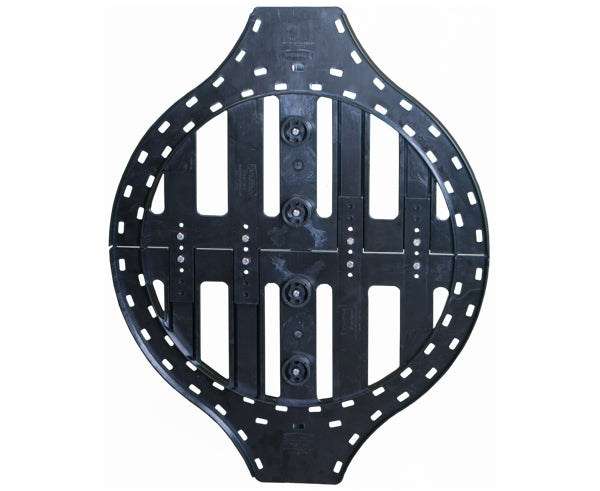

Slack Storage Bracket Sno-Shoe®, 24", Plastic
Cable Runway Slack Storage Bracket Sno-Shoe® offers the ability to store slack cables effectively and efficiently. It is cheaper than buying additional cable and it allows for emergency repairs, growth and expansion, splicing and general maintenance. The Sno-Shoe® will ensure that correct installation practices are being carried out and will adhere to the bend radius of the cable.
Product Quality
This product is much more convenient than a vault or storage box, it is small and can fit in spaces that other storage units cannot. This product is also much cheaper than boxes or cabinets and can help reduce inventory and operating costs.
Features
Features
- Compact design provides slack storage in compact areas.
- The plastic material design makes the Sno-Shoe® non-conductive.
- Countersunk nut wells for easy one-tool installation.
- The captive design allows the installer to simply lay the cable in the trough, leaving both hands free to secure the cable to the unit.
- The multiple slots allow you to secure the cable with either heavy-duty tie wraps or stainless steel straps. These slots also allow you to secure additional cable to the unit in expansion situations without having to remove any of the previously installed cables from the unit and also allows for water and ice drainage.
Benefits
- Prevents micro bends in fiber optic cable.
- Provides consistency and regularity in fiber optic loops.
- Solution to spacing problems
Specifications
Specifications
| External Dimensions | Length | 24.5" |
| Width | 20.5" | |
| Depth | 2.3" | |
| Channel Dimensions | Length | 50" - 62" |
| Width | 2.0" | |
| Depth | 2.0" | |
| Internal Dimensions | Diameter | 24" |
| Bend Radius | 1" | |
| Physical Properties | Weight | 5.1bs |
| Material | Plastic | |
| Color | Black |
What's in the Box
What’s in the Box
- Qty 1 - Plastic Sno-Shoe Slack Storage Bracket, Round 7"
- Qty 1 - Mounting hardware kit (includes screws, nuts, washers as applicable)
