Description

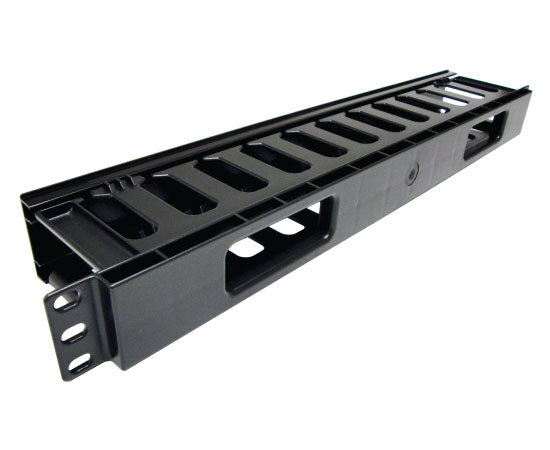

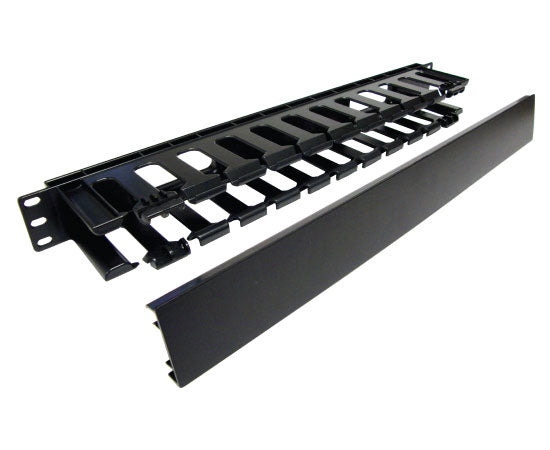

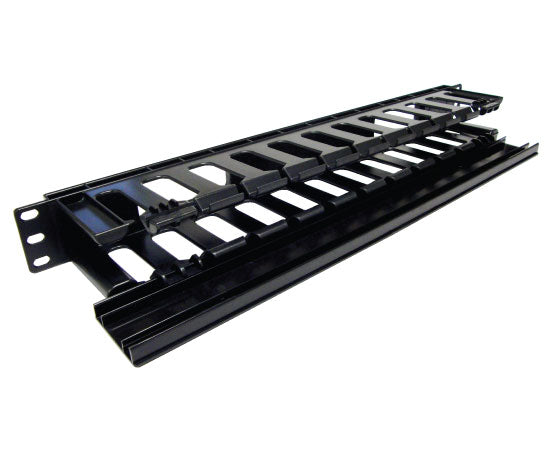

1U Horizontal Finger Duct Cable Management
This Finger Duct Style Cable Management Panel features 12 extra-large slotted ducts for optimum and easy to access Horizontal Cable Management on the front side of standard 19" Racks and Enclosures. Sturdy plastic construction offers quality while keeping costs down.

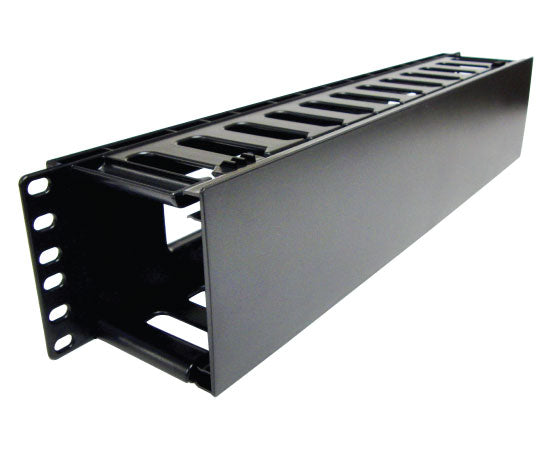

2U Horizontal Finger Duct Cable Management
The 2U finger duct cable management unit features 24 slotted ducts designed to provide horizontal cable management on the front of a rack to route and organize cables and Patch Cords. The package includes #12 mounting screws to mount on a server rack, inside networking cabinet or alongside your other network components.
Features
Features
1U - Slotted Finger Duct Cable Manager
- Provides flexibility for front cable management with a neat and clean appearance
- 12 Extra-wide slotted ducts offer horizontal front side cable management
- Designed to fit all standard 19" racks and enclosures
- 1 rack mount space (RMS) (1U)
- Durable and Sturdy Plastic Construction
- UL listed
2U - Slotted Finger Duct Cable Manager
- Provides flexibility for front cable management with a neat and clean appearance
- Designed with slotted ducts providing horizontal cable management on the front of a rack
- Designed to fit all standard 19" racks and cabinets
- 2U rack mount space (RMS)
- Durable and Sturdy Plastic Construction
- UL listed
Specifications
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| DESCRIPTION | 1U - SLOTTED FINGER DUCT CABLE MANAGER | 2U - SLOTTED FINGER DUCT CABLE MANAGER |
| MATERIAL | ABS Black Plastic | |
| COMPONENT TYPE | Horizontal Cable Manager | |
| CONFIGURATION TYPE | Single-Sided | |
| RACK HEIGHT | 1U | 2U |
| LENGTH | 480mm (18.90in.) | 482mm (18.98in.) |
| HEIGHT | 1U (44mm) (1.74in.) | 2U (88.6mm) (3.48in.) |
| DEPTH | 86mm (3.39in.) | 86mm (3.39in.) |
Additional Information
Rack Accessories
Effective cable organization involves more than just the combination of cable raceway, ladder racks, and server racks. Sometimes it's the little things, like server rack accessories that bring the network components together. We stock an assortment of rack accessories including: D-ring cable managers, horizontal and vertical cable managers, cable management duct covers, and cable routing banks, just to name a few.
To learn more about our Rack Accessories please visit our overview page. The Horizontal Finger Duct Cable Management can be combined with a wide array of products such as:
What's in the box
What's in the box
1U
- Qty 1 - 1U Horizontal Finger Duct Cable Management w/ Cover
2U
- Qty 1 - 2U Horizontal Finger Duct Cable Management w/ Cover
