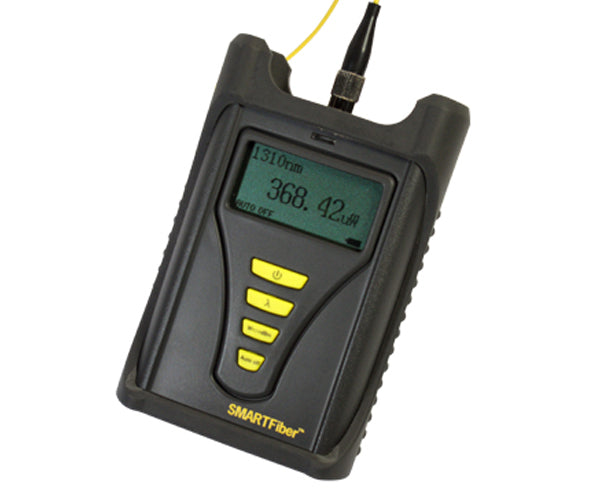

SMART Fiber - Fiber Optic Power Meter for 850/1300/1310/1490/1550/1625 Wavelengths

$360.53
SKU: TL4-4430
Various lead times may apply to this product. Please contact us for more details.

This power meter requires a single mode light source or multimode light source


Description

SMART Fiber - Fiber Optic Power Meter for 850/1300/1310/1490/1550/1625 Wavelengths

We offer the latest version of the SMARTFiber with enhancements that includes replacement type adaptor to connect FC, ST, and SC type fiber connectors. Now, a wavelength of 1490nm and 1625nm was added to this unit totaling its capability to six wavelengths. Though, it maintains its design as an easy to use and lightweight fiber optic power meter. The SMARTFiber utilizes an InGaAs detector to improved sensitivity and temperature stability to test for standard optical power from +3 to ™60dBm dynamic range. It can test both single™mode and multimode fiber cable, with the optional adaptor, users can test 2.5mm and 1.25mm fiber cables.

It can receive modulate signal (270Hz,1KHz, 2KHz) simultaneously for identification For fast and easy operation in testing the corresponding wavelength, we recommend the OPTISources as a complete set in auto-identifying wavelength of optical light source.

Features

  • Simple to use and portable
  • Calibrated at 850nm, 1300nm, 1310nm, 1490nm, 1550nm and 1625nm
  • Accuracy: ±0.15dB™1nW@1300nm/1310nm/1490nm/1550nm; ±0.25dB™1nW@850nm/1625nm
  • Optical power range from +3 to -60dBm
  • Measurement units in dBm, and Watt
  • Ideal for both multimode and singlemode optical fibers
  • Optional adapter to test both 2.5mm/1.25mm fiber cables
  • Can receive modulate signal (270Hz, 1kHz, 2kHz) simultaneously for identification
  • Battery indicator and power auto off function
  • Automatic wavelength detection (when used with Hobbes OPTISource as optical light source)

Specifications

Specifications
Sensor Type InGaAs
Wavelength 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
Dynamic Range +3 to -60dBm
Accuracy ±0.15dB±1nW@1300nm/1310nm/1490nm/1550nm; ±0.25dB ±1nW@850nm/1625nm
Resolution 0.01dBm/0.01mW
Unit dBm, Watt, dB
Fiber Connector Interchangeable Adaptor for FC, ST, SC, FDDA
Battery 4 x AAA (6V)
Dimensions 131mm x 86mm x 40mm

What's In The Box

  • Qty 1 - SMART Fiber - Fiber Optic Power Meter
