SnakePit® Concrete/Driveway Access Point
The SnakePit® family of access points provides a secure, direct connection to tracer wire systems at ground level in a variety of applications from light-duty off-roadway to heavy-duty roadway. These access points feature anti-corrosion gel to protect wires, locking covers that protect against tampering, and encapsulated magnets that allow for detection by ferrous metal detectors. Available in APWA color-coded options for proper utility identification.
The SnakePit® Concrete/Driveway provides access to a tracer wire system at ground level in low-traffic roads and driveway applications. Select from 3 lid options:

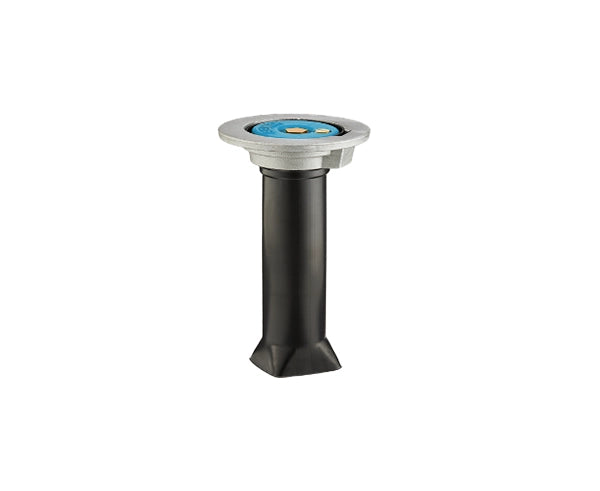

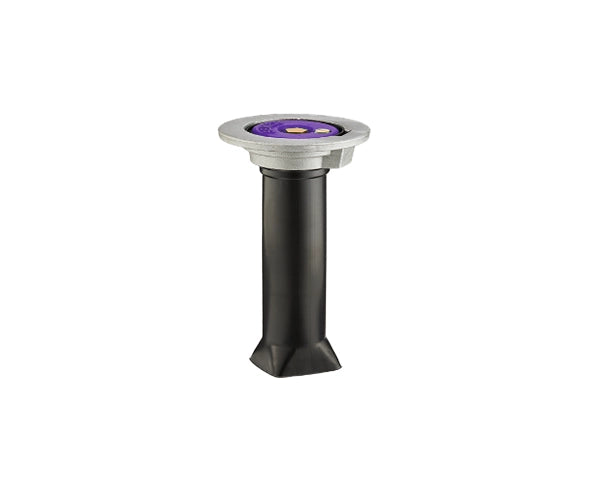

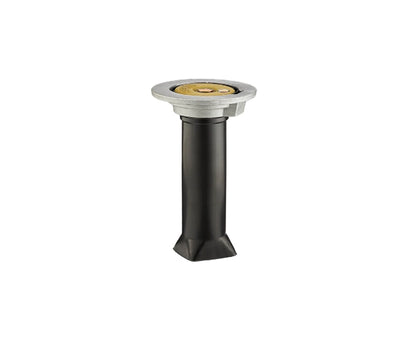

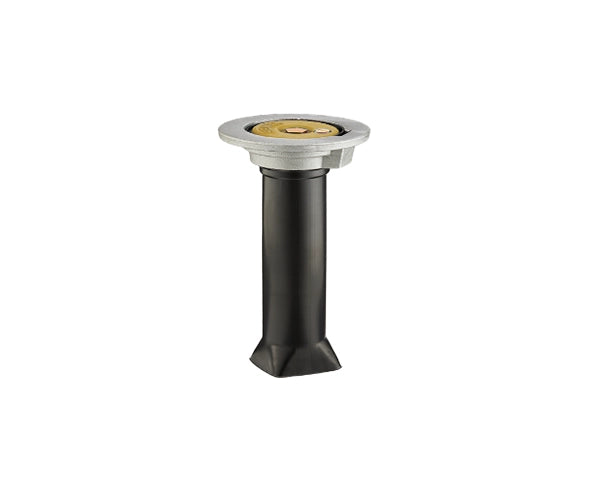

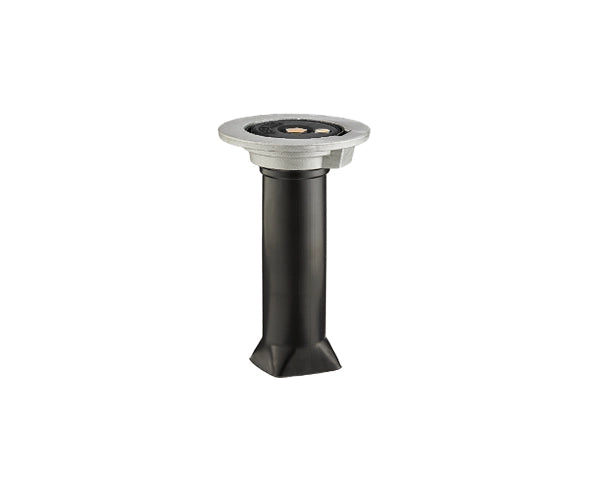

Single-terminal Cast Iron Lid: no ground rod wire connection point; must remove lid to access wires; part # CD14*TP

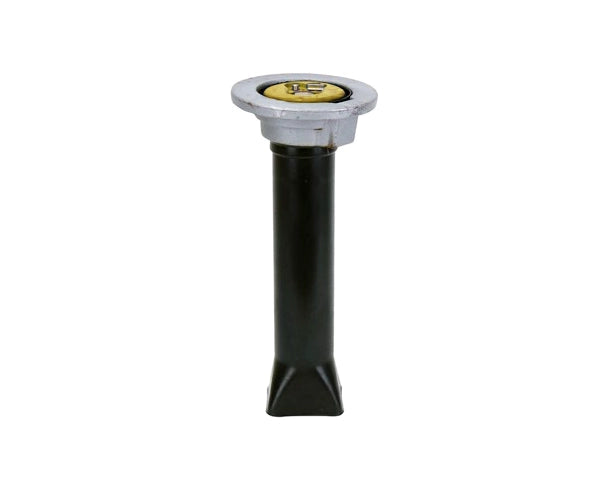

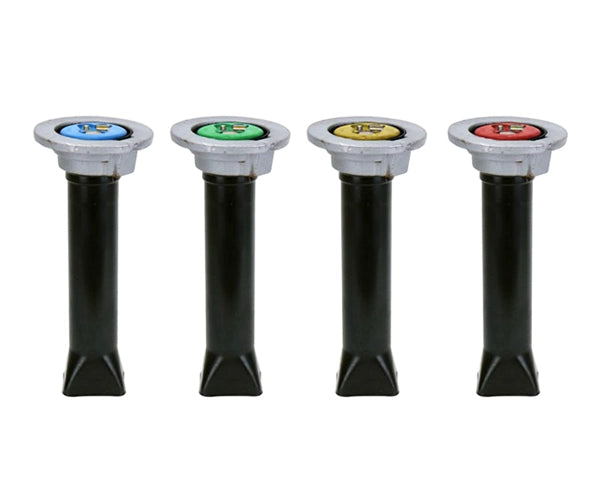

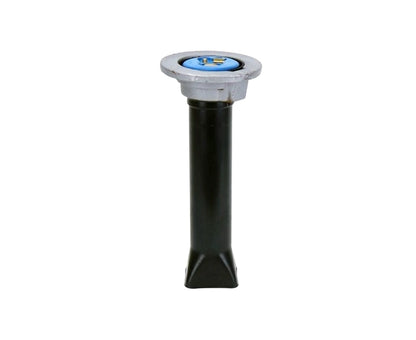

Two-terminal Switchable Lid: provides a direct connection point for the utility locate transmitter PLUS ground switch that turns tracer wire ground off/on from the top of the lid; no need to remove the lid; part # CD14*2T-SW
Five-terminal Cast Iron Lid: must remove lid to access wires; part # CD14*5T
Made in the USA. BABA compliant.
- Low traffic roads and driveway applications
- 2" cast iron collar for enhanced durability
- Direct connection to the tracer wire system from the top of the lid
- Anti-corrosion gel protects wire connections
- Locking cover protects against tampering
- An encapsulated magnet allows detection by a ferrous metal detector
- Color-coded to meet APWA utility identification standards
- Designed for concrete and paved surface installations
Features
Features
- Concrete/Driveway Rating – Engineered for low traffic roads and driveway applications
- 2" Cast Iron Collar – Enhanced durability for concrete and paved surface installations
- Multiple Terminal Options – Single, two-terminal switchable, or five-terminal configurations
- Heavy-Duty Construction – Cast iron and resin lid options with reinforced ABS base
- Pentagon Security System – Tamper-resistant pentagon head bolt with proper wrench requirement
- Magnetic Locatable – Encapsulated magnet for detection even when covered by pavement
- Corrosion Resistance – Anti-corrosion gel protects all wire connections
- APWA Compliant – Available in all standard utility identification colors
Specifications
Specifications
| Application | Low traffic roads and driveways |
| Collar Design | 2" cast iron collar |
| Length | 14.5" standard |
| Base Material | High-grade ABS rigid plastic (ASTM D1788, Type 1) |
| Single-Terminal Lid | Cast iron (ASTM A126 Class B) |
| Two-Terminal Lid | Injection molded resin |
| Five-Terminal Lid | Cast iron (ASTM A126 Class B) |
| Tensile Strength | 31,000 psi (cast iron lids) |
| Temperature Range | -150°F to +450°F (cast iron), up to 451°F (resin) |
| Hardware | Pentagon head bolt (anodized aluminum), brass terminals |
| Detection | Encapsulated magnet for magnetic locator detection |
| APWA Colors | Blue, Green, Black, Orange, Purple, Red, Yellow |
| Part Numbers | CD14*TP, CD14*2T-SW, CD14*5T (* = color) |
| Country of Origin | USA |
| Compliance | BABA, APWA Standards |
Additional Information
Additional Information
What's in the Box
What's in the Box
- SnakePit® Concrete/Driveway Base with 2" cast iron collar
- Lid (Single-terminal, Two-terminal Switchable, or Five-terminal as specified)
- Anti-corrosion gel
- Pentagon head bolt with proper wrench
- Installation instructions
