SnakePit® Lite Duty Adjustable Access Point
The SnakePit® family of access points provides a secure, direct connection to tracer wire systems at ground level in a variety of applications from light-duty off-roadway to heavy-duty roadway. These access points feature anti-corrosion gel to protect wires, locking covers that protect against tampering, and encapsulated magnets that allow for detection by ferrous metal detectors. Available in APWA color-coded options for proper utility identification.

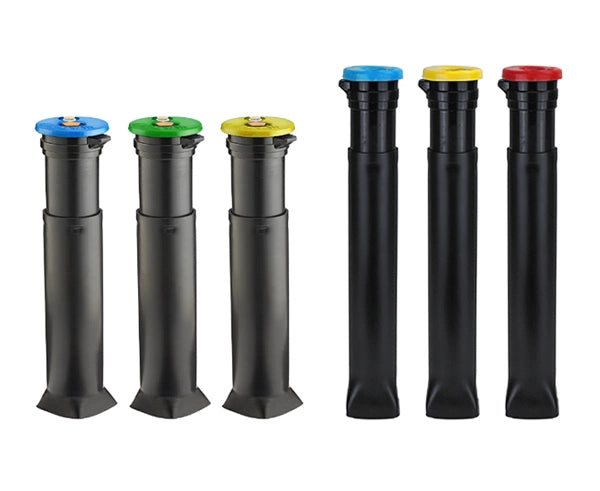

The SnakePit® Lite Duty Adjustable provides access to a tracer wire system at ground level in light-duty and off-roadway applications where fluctuations in grade or ground settling are likely. Select from 3 lid options:

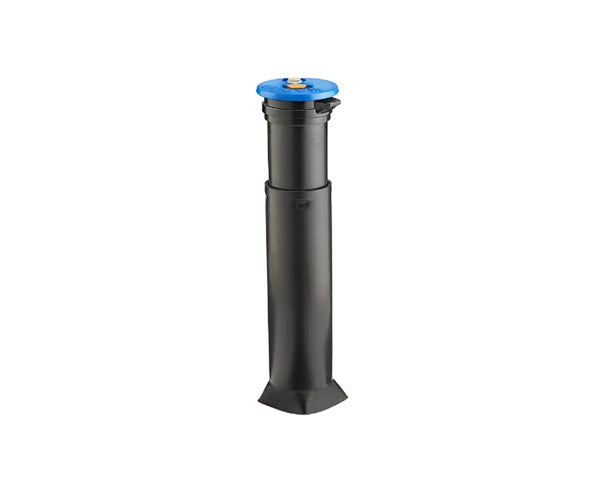

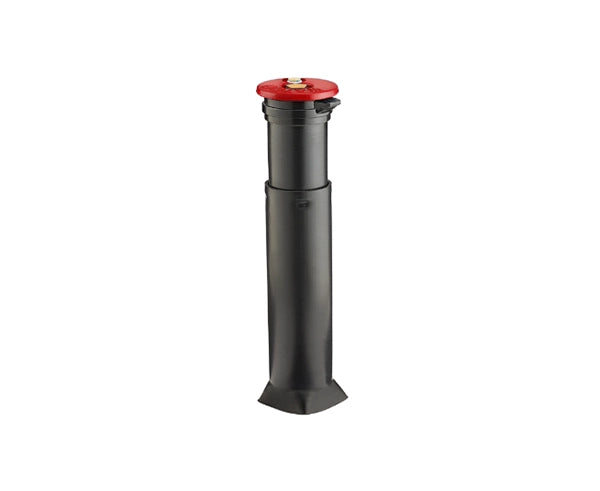

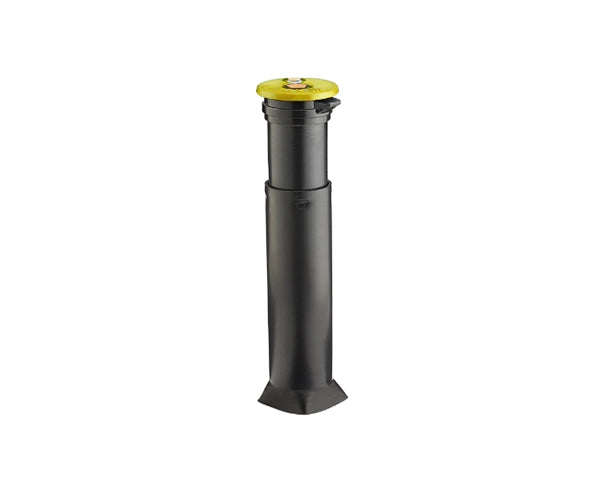

Single-terminal Cast Iron Lid: no ground rod wire connection point; must remove lid to access wires; part # LD14*TP-ADJ

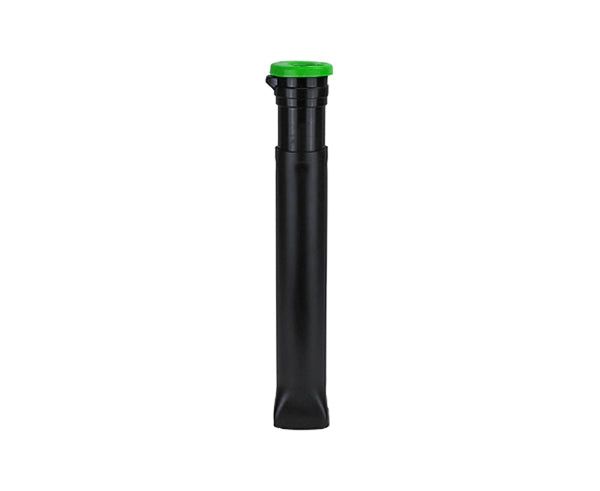

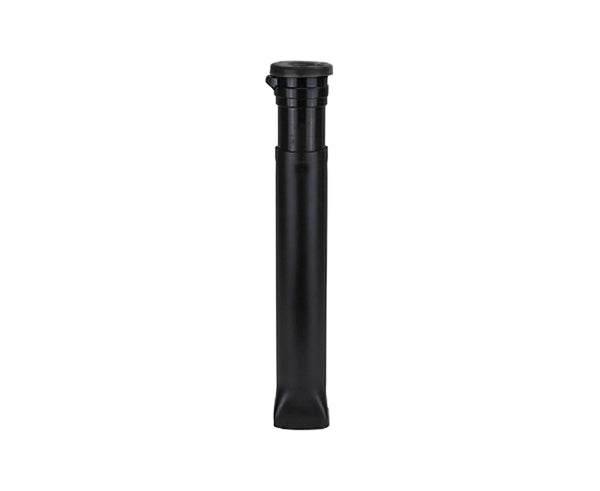

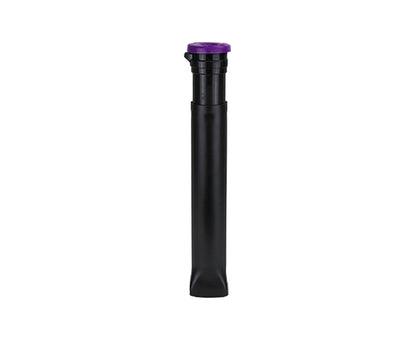

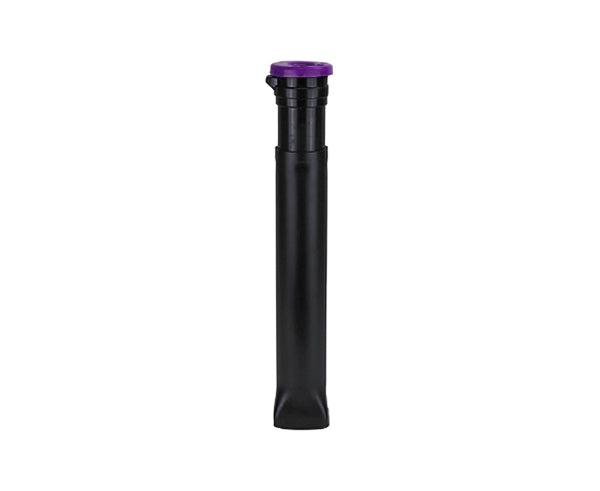

Two-terminal Switchable Lid: provides a direct connection point for the utility locate transmitter PLUS ground switch that turns tracer wire ground off/on from the top of the lid; no need to remove the lid; part # LD14*2T-ADJ-SW
Five-terminal Cast Iron Lid: must remove lid to access wires; part # LD14*5T-ADJ
Made in the USA. BABA compliant.
- Light-duty applications with light ground shifting
- Adjustable height accommodates fluctuations in grade
- Direct connection to the tracer wire system from the top of the lid
- Anti-corrosion gel protects wire connections
- Locking cover protects against tampering
- An Encapsulated magnet allows detection by a ferrous metal detector
- Color-coded to meet APWA utility identification standards
- Tubular (cylindrical) construction with removable round lid
Features
Features
- Adjustable Design – Accommodates fluctuations in grade and ground settling
- Lite Duty Performance – Ideal for off-roadway applications with light ground shifting
- Multiple Terminal Options – Single, two-terminal switchable, or five-terminal configurations
- Durable Construction – Cast iron and resin lid options with ABS base
- Security Features – Pentagon head bolt system with tamper-resistant design
- Magnetic Locatable – Encapsulated magnet for easy detection when buried
- Corrosion Protection – Anti-corrosion gel preserves wire connections
- APWA Compliant – Color-coded for proper utility identification
Specifications
Specifications
| Application | Light duty with light ground shifting |
| Adjustable Height | 18.625" - 24" length range |
| Base Material | High-grade ABS rigid plastic (ASTM D1788, Type 1) |
| Single-Terminal Lid | Cast iron (ASTM A126 Class B) |
| Two-Terminal Lid | Injection molded resin |
| Five-Terminal Lid | Cast iron (ASTM A126 Class B) |
| Tensile Strength | 31,000 psi (cast iron lids) |
| Temperature Range | -150°F to +450°F (cast iron), up to 451°F (resin) |
| Hardware | Pentagon head bolt (anodized aluminum), brass terminals |
| Detection | Encapsulated magnet for magnetic locator detection |
| APWA Colors | Blue, Green, Black, Orange, Purple, Red, Yellow |
| Part Numbers | LD14*TP-ADJ, LD14*2T-ADJ-SW, LD14*5T-ADJ (* = color) |
| Country of Origin | USA |
| Compliance | BABA, APWA Standards |
Additional Information
Additional Information
What's in the Box
What's in the Box
- SnakePit® Lite Duty Adjustable Base
- Lid (Single-terminal, Two-terminal Switchable, or Five-terminal as specified)
- Anti-corrosion gel
- Pentagon head bolt with proper wrench
- Installation instructions
