SnakePit® Roadway Access Point
The SnakePit® family of access points provides secure, direct connection to tracer wire systems at ground level in a variety of applications from lite duty off-roadway to heavy duty roadway. These access points feature anti-corrosion gel to protect wires, locking covers that protect against tampering, and encapsulated magnets that allow for detection by ferrous metal detectors. Available in APWA color-coded options for proper utility identification.
The SnakePit® Roadway provides access to a tracer wire system at ground level in heavy traffic, roadway applications. Select from 3 lid options:

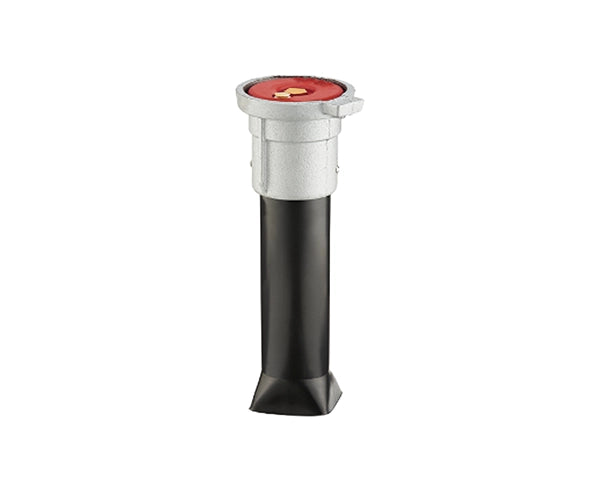

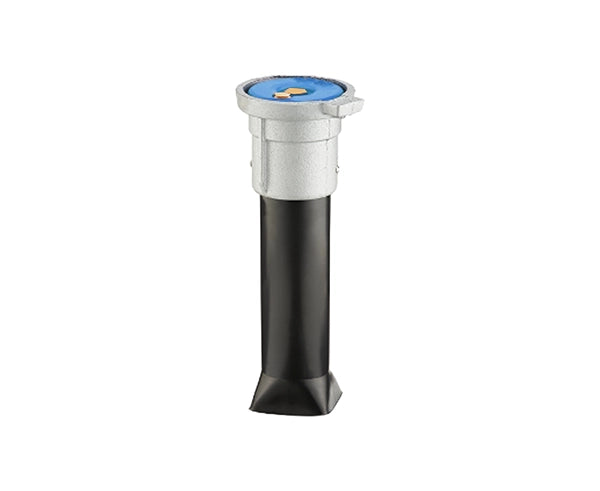

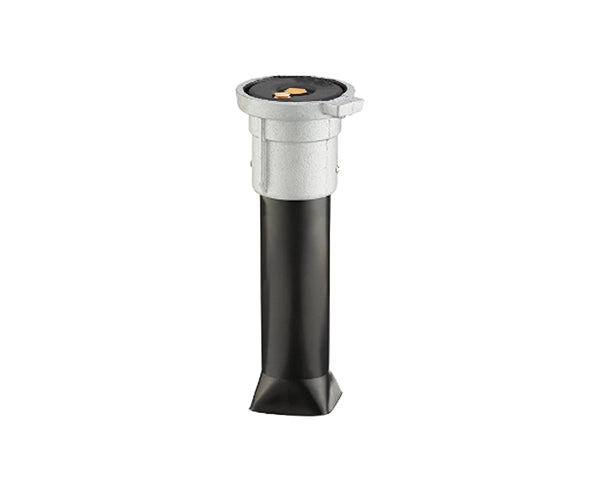

Single-terminal Cast Iron Lid: no ground rod wire connection point; must remove lid to access wires; part # RB14*TP

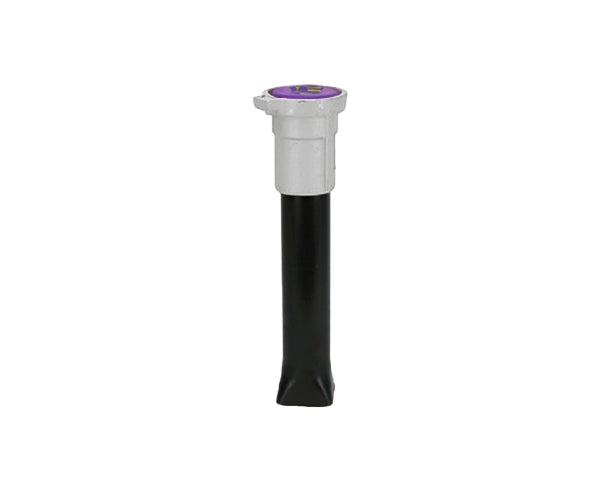

Two-terminal Switchable Lid: provides direct connection point for utility locate transmitter PLUS ground switch that turns tracer wire ground off/on from top of lid; no need to remove lid; part # RB14*2T-SW
Five-terminal Cast Iron Lid: must remove lid to access wires; part # RB14*5T
Made in the USA. BABA compliant.
- Roadway and heavy traffic applications
- 5" cast iron collar - toughest and strongest SnakePit®
- Handles constant pounding of heavy traffic

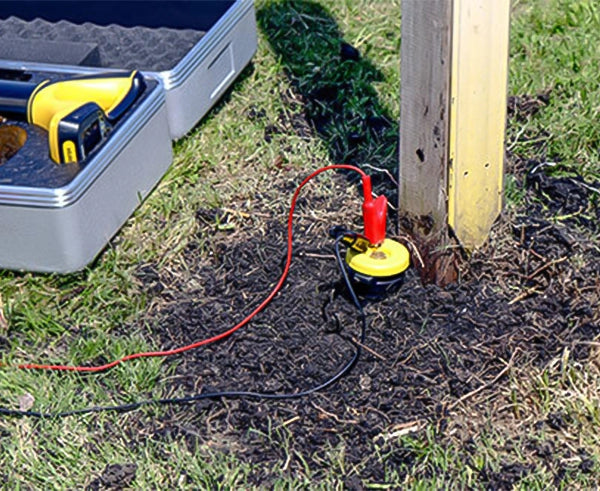

- Direct connection to tracer wire system from top of lid
- Anti-corrosion gel protects wire connections
- Locking cover protects against tampering
- Encapsulated magnet allows detection by ferrous metal detector
- Color-coded to meet APWA utility identification standards
Features
Features
- Heavy-Duty Roadway Rating – Engineered for heavy traffic and roadway applications
- 5" Cast Iron Collar – Toughest and strongest SnakePit® design handles constant heavy traffic pounding
- Maximum Durability – Built to withstand the most demanding roadway conditions
- Multiple Terminal Configurations – Single, two-terminal switchable, or five-terminal options
- Reinforced Construction – Heavy-duty cast iron and resin lid options with enhanced base
- Pentagon Security – Tamper-resistant pentagon head bolt system
- Magnetic Detection – Encapsulated magnet enables location under heavy pavement
- APWA Color-Coded – Available in all standard utility identification colors
Specifications
Specifications
| Application | Roadway and heavy traffic |
| Collar Design | 5" cast iron collar (strongest design) |
| Length | 17" roadway duty |
| Traffic Rating | Heavy traffic, constant pounding resistance |
| Base Material | High-grade ABS rigid plastic (ASTM D1788, Type 1) |
| Single-Terminal Lid | Cast iron (ASTM A126 Class B) |
| Two-Terminal Lid | Injection molded resin |
| Five-Terminal Lid | Cast iron (ASTM A126 Class B) |
| Tensile Strength | 31,000 psi (cast iron lids) |
| Temperature Range | -150°F to +450°F (cast iron), up to 451°F (resin) |
| Hardware | Pentagon head bolt (anodized aluminum), brass terminals |
| Detection | Encapsulated magnet for magnetic locator detection |

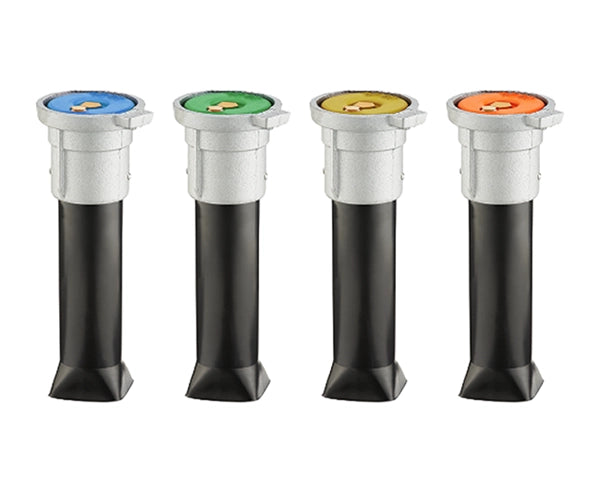

| APWA Colors | Blue, Green, Black, Orange, Purple, Red, Yellow |
| Part Numbers | RB14*TP, RB14*2T-SW, RB14*5T (* = color) |
| Country of Origin | USA |
| Compliance | BABA, APWA Standards |
Additional Information
Additional Information
What's in the Box
What's in the Box
- SnakePit® Roadway Base with 5" cast iron collar
- Lid (Single-terminal, Two-terminal Switchable, or Five-terminal as specified)
- Anti-corrosion gel
- Pentagon head bolt with proper wrench
- Installation instructions
